Description
- Compact and Portable: Measuring at 90x70x28mm, this signal generator fits easily in your pocket, making it ideal for both lab use and on-site applications.
- Versatile Signal Outputs: Offers a maximum output of 0-24mA for both active and passive signals, 0-12VDC, and 24V. Includes a convenient ON/OFF button for signal output control.
- High-Accuracy Measurements: Features a 0.01mA and 0.01V accuracy for precise signal output and input measurements, ensuring reliable performance in critical applications.
- Input Measurement Capabilities: Supports input measurements up to 0-24mA and 0-30V, catering to a wide range of process control needs.
- Advanced Display Options: Equipped with a large, clear color LCD that accurately displays both input and output signals, with options for single or dual-screen viewing.
- User-Friendly Features: Includes one-button fast output, as well as automatic ascending, descending, and cycling output modes. Customizable minimum and maximum output values enhance operational flexibility.
- Rechargeable Power: Built-in 2000mAH rechargeable battery ensures long-lasting use in various environments.

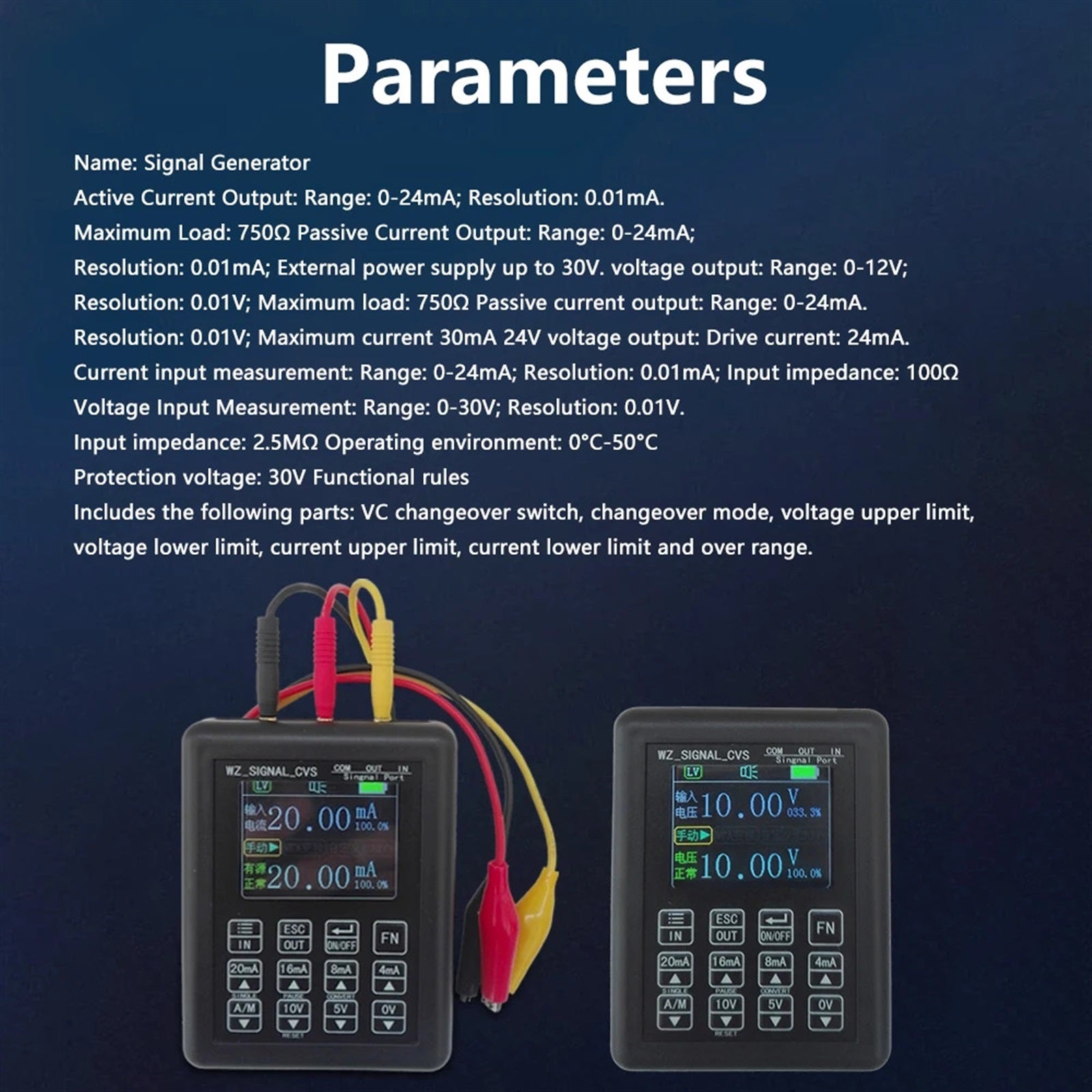

Specifications
| Parameter | Details |
|---|---|
| Size | 90x70x28mm |
| Max. Signal Output | 0-24mA, 0-12VDC, 24V |
| Max. Input Measurement | 0-24mA, 0-30V |
| Accuracy | 0.01mA, 0.01V |
| Display | Large color LCD |
| Battery | 2000mAH rechargeable |
| Output Modes | Fast output, automatic modes |
