96V 20A Programmable DC Power Supply, Adjustable Buck Converter with Wireless Control

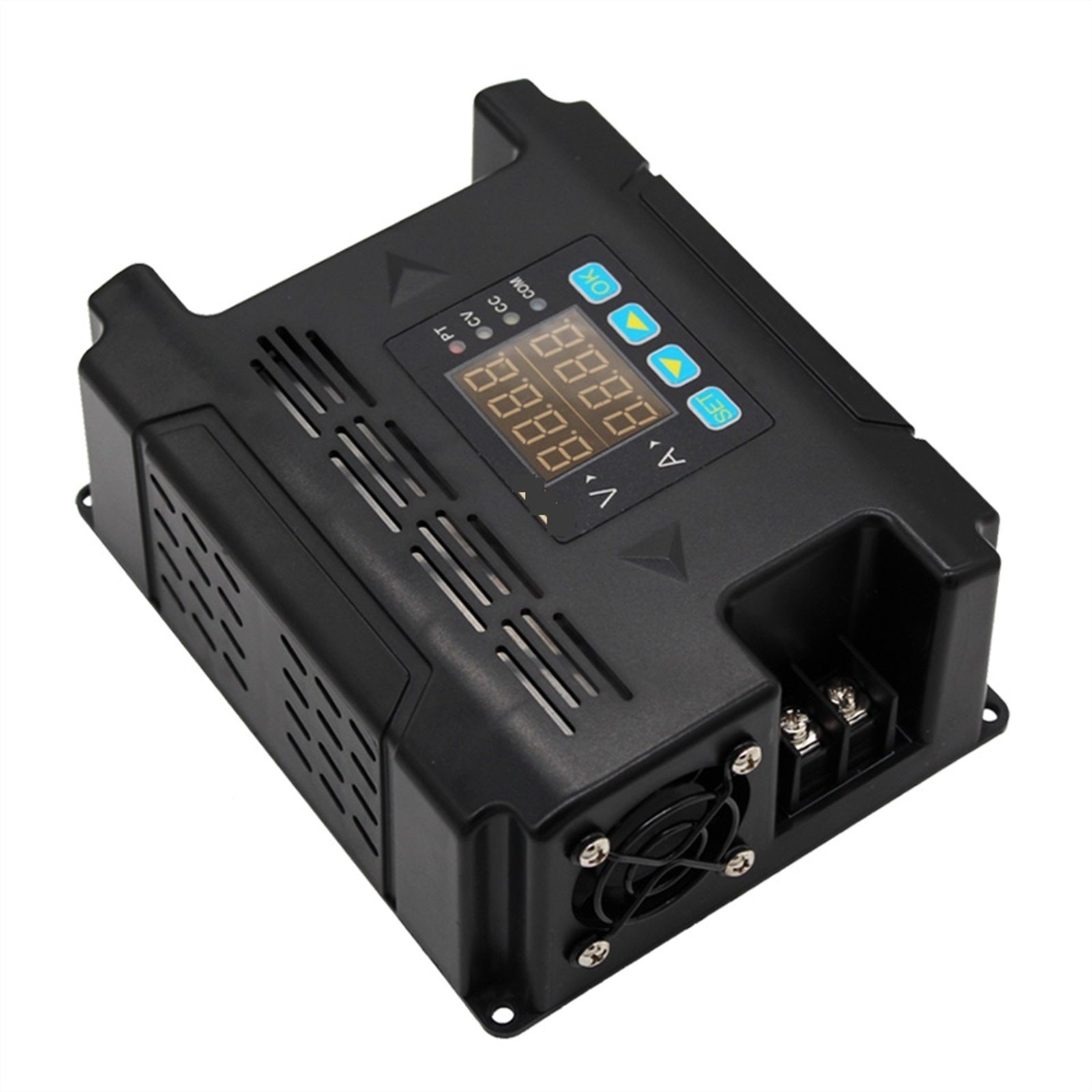

DPH8920 Programmable DC Buck Power Module
The DPH8920 series is a DC-input programmable buck power module with a 20-110 V DC input and 0-96 V adjustable output. The DPH8920 variants support up to 20 A and 1920 W. Actual output depends on the input source, load, and cooling conditions; do not assume maximum voltage, current, and power are available simultaneously.
Input requirement: this product requires an appropriate DC source within the specified input range. It is not designed for direct connection to AC mains. Confirm the required DC input source and complete package before ordering.
Choose the DPH8920 Version
| Variant | SKU | Wired communication | Wireless control | Included control accessories |
|---|---|---|---|---|
| DPH8920 | INS06-PS3321 | TTL serial | No RF remote | Module and USB-to-TTL communication cable |

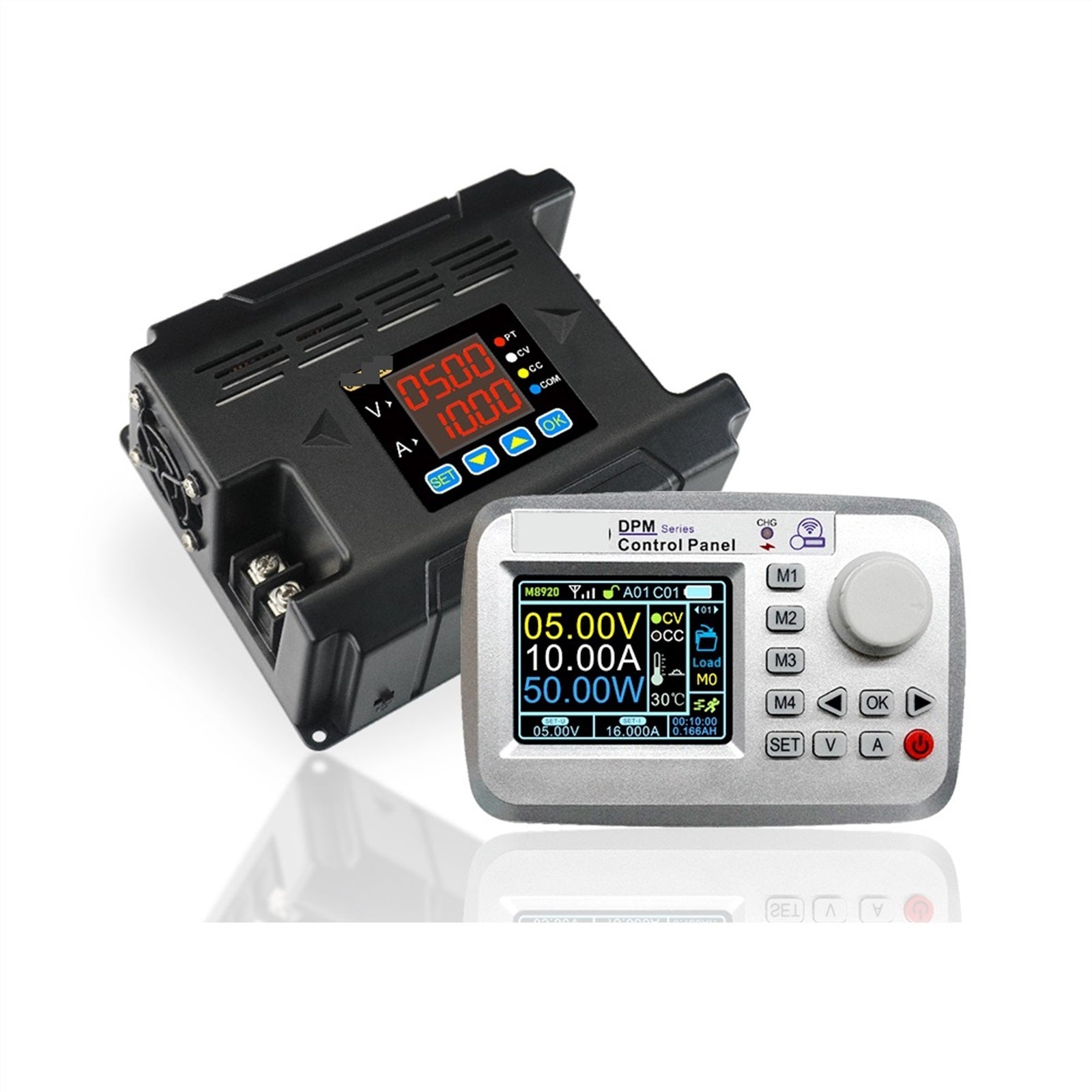

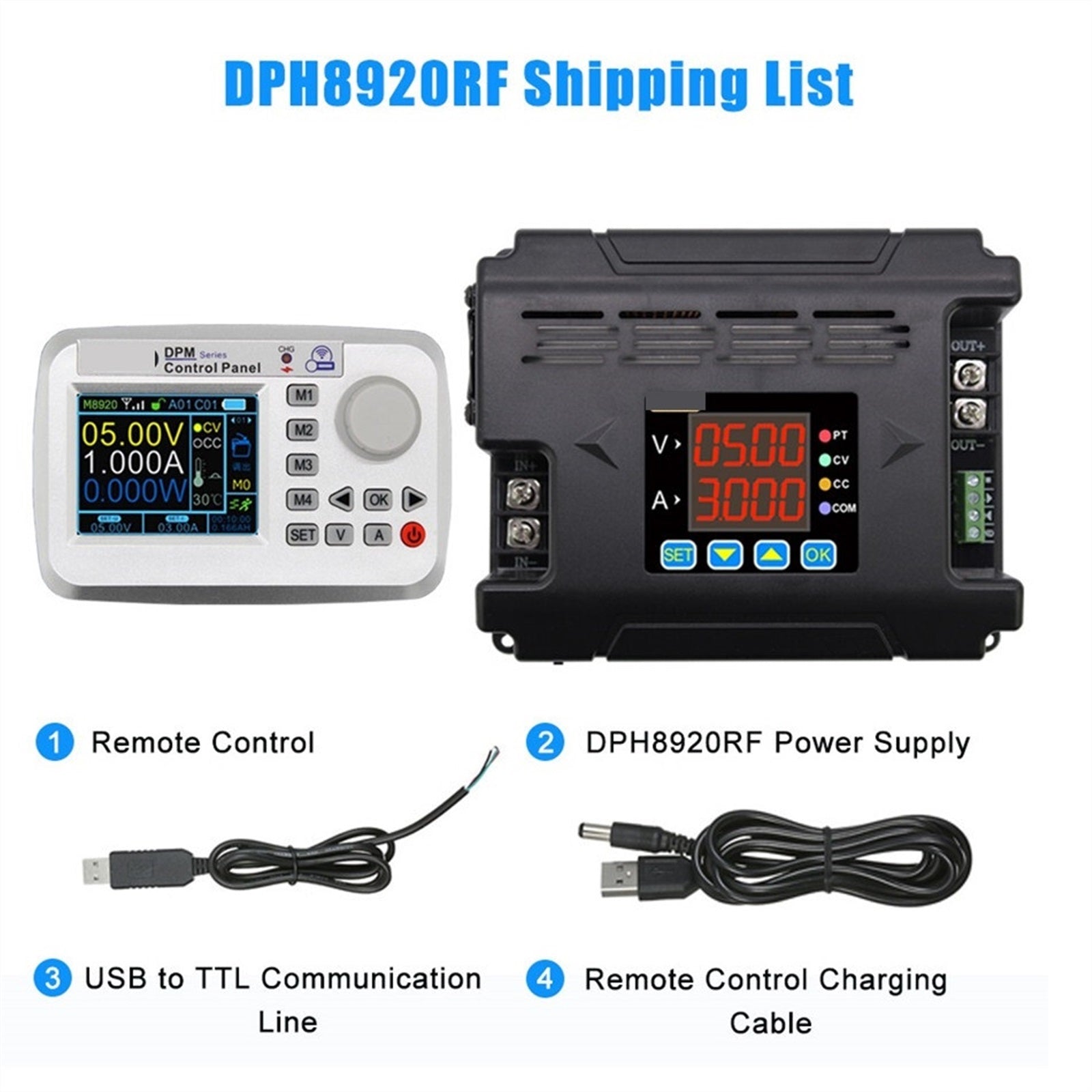

| DPH8920-RF | INS06-PS3319 | TTL serial | RF remote control | Module, remote control, remote charging cable, and USB-to-TTL communication cable |
| DPH8920-485 | INS06-PS3322 | 485 interface | No RF remote | Module and USB-to-485 module |

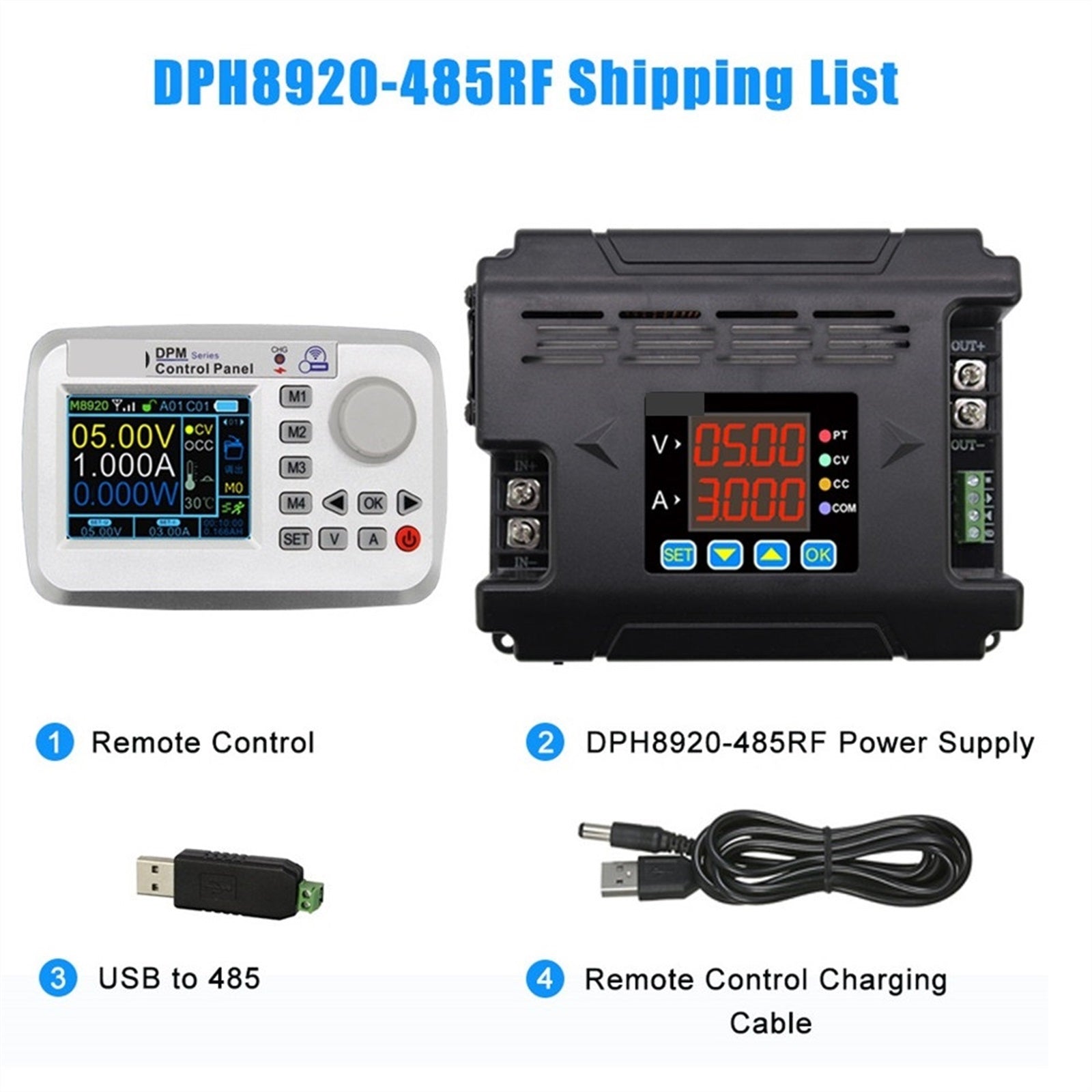

| DPH8920-485RF | INS06-PS3320 | 485 interface | RF remote control | Module, remote control, remote charging cable, and USB-to-485 module |
RF features apply only to variant names containing RF. Choose the TTL or 485 communication version required by the host system. PC control supports SIMPLE and MODBUS communication through the applicable interface; confirm software compatibility, drivers, and protocol details for the selected variant.
DPH8920 Specifications
| Input voltage | 20-110 V DC |
|---|---|
| Output voltage | 0-96 V |
| Output current | 0-20 A |
| Output power | 0-1920 W |
| Voltage resolution | 10 mV |
| Current resolution | 10 mA |
| Display accuracy | 10 mV, 10 mA |
DPH8920 and DPH8909 Comparison
| Specification | DPH8920 | DPH8909 |
|---|---|---|
| Input | 20-110 V DC | 20-110 V DC |
| Output voltage | 0-96 V | 0-96 V |
| Output current | 0-20 A | 0-9.6 A |
| Output power | 0-1920 W | 0-921.6 W |
| Current resolution | 10 mA | 1 mA |
Shared Series Specifications
| Power effect | CV <0.5% + 10 mV; CC <1% + 5 mA |
|---|---|
| Load effect | CV <0.5% + 10 mV; CC <1% + 5 mA |
| Output ripple | <50 mVpp at 40 V input, 12 V output, 7 A |
| Typical efficiency | 92% at 40 V input, 30 V output, 7 A |
| Output error | Voltage ±2‰ + 1 character; current ±5‰ + 2 characters |
| Response time | <50 ms |

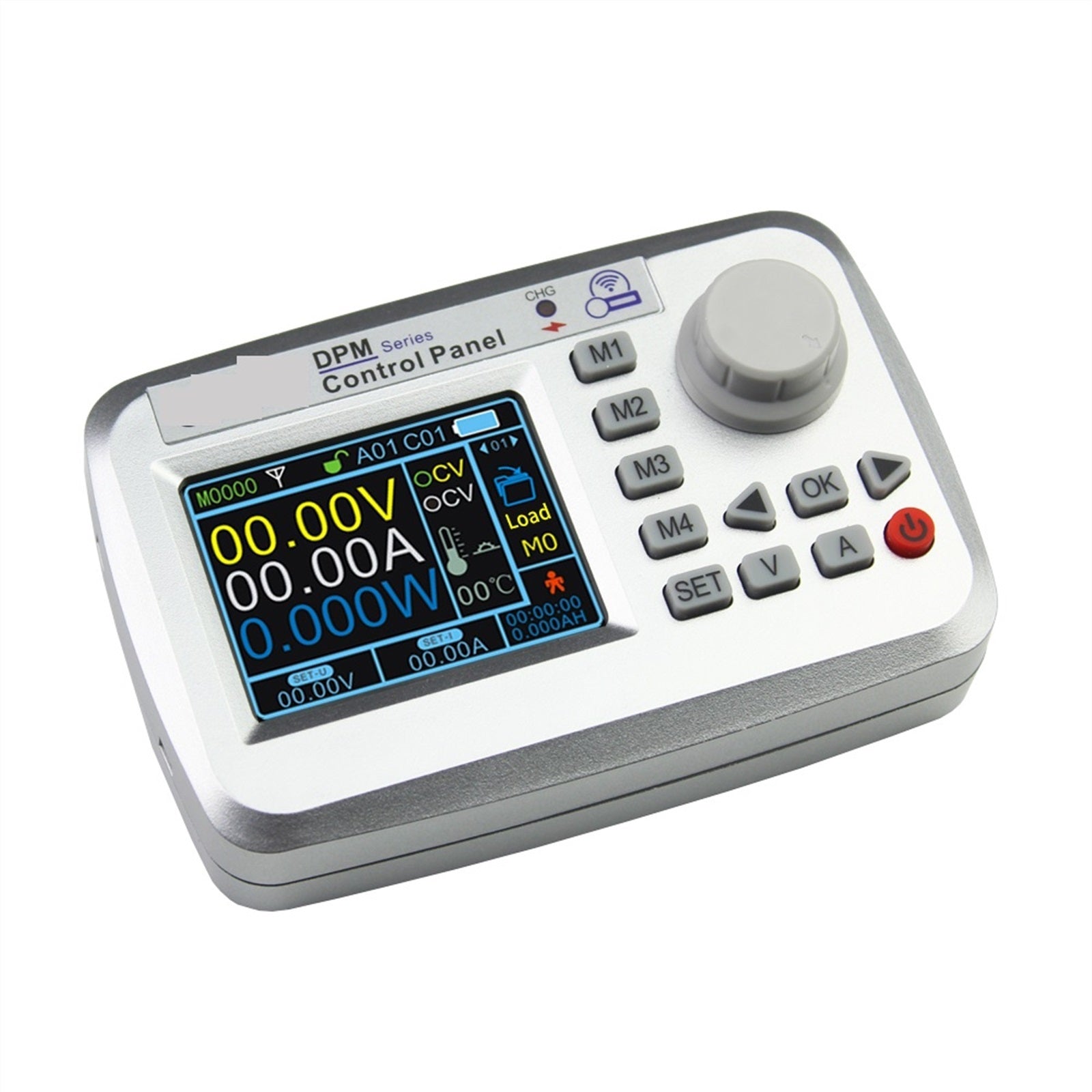

| RF details for RF variants | 2.4 G; 10 m communication distance under the specified accessible condition; channels 01-30; addresses 00-99 |
| Display | 2.4-inch LCD |
| Memory | 10 parameter groups, M0-M9 |
| Protection | PT over-temperature protection |
| Cooling | Onboard radiator and fan cooling |
| Operating frequency | Up to 150 kHz |
| Minimum voltage difference | 0.5 V |
| Programmable limits | Voltage and current limits; temperature-controlled fan and over-temperature output shutdown |
| Use environment | Indoor use; confirm the operating-humidity limit for the installation |
| Wireless-controller dimensions | 120 × 80 × 37 mm |
| Product dimensions | 150 × 120 × 59 mm |
| Package dimensions | 210 × 150 × 75 mm |
| Net / gross weight | 690 g / 800 g |
Before Ordering
- Select the DPH8920, DPH8920-RF, DPH8920-485, or DPH8920-485RF variant according to the required communication method.
- Confirm the DC input source, wiring components, software compatibility, and package contents for the selected variant.
- Size the input source and cooling for the intended output rather than assuming all maximum ratings are simultaneous.
- Compare other DC and AC-input products in the power supply collection.
