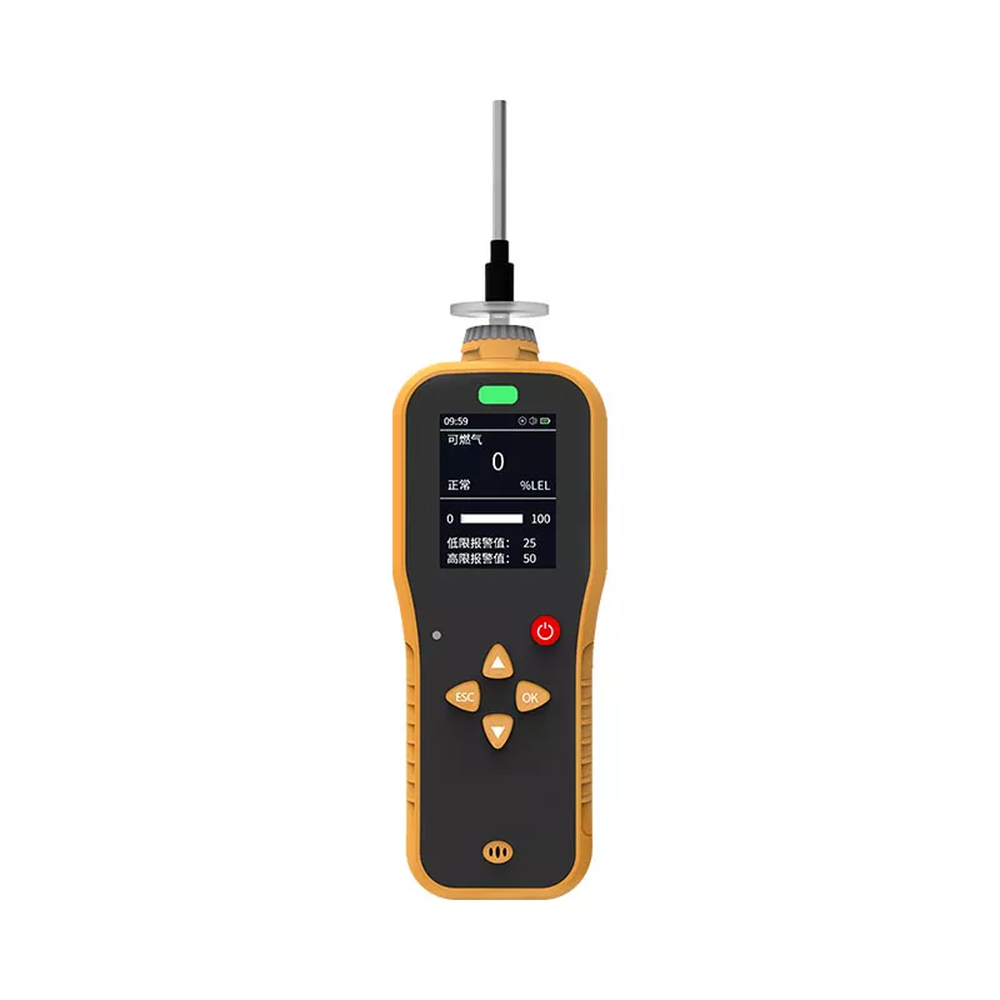

This portable pump single-gas detector draws air through a built-in micro pump and monitors one selected gas. Fourteen sensor configurations cover combustible gas, oxygen and a range of toxic gases. Choose the gas configuration and measuring range for the monitoring task.

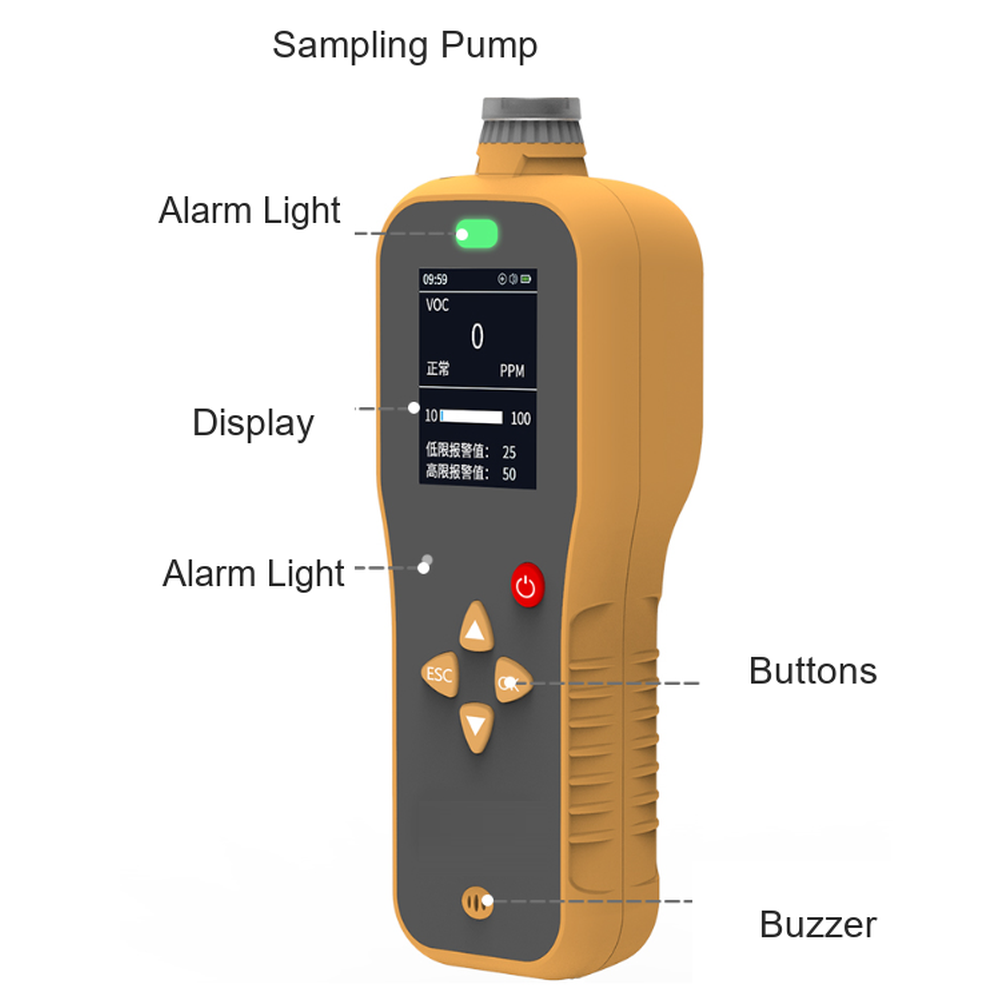

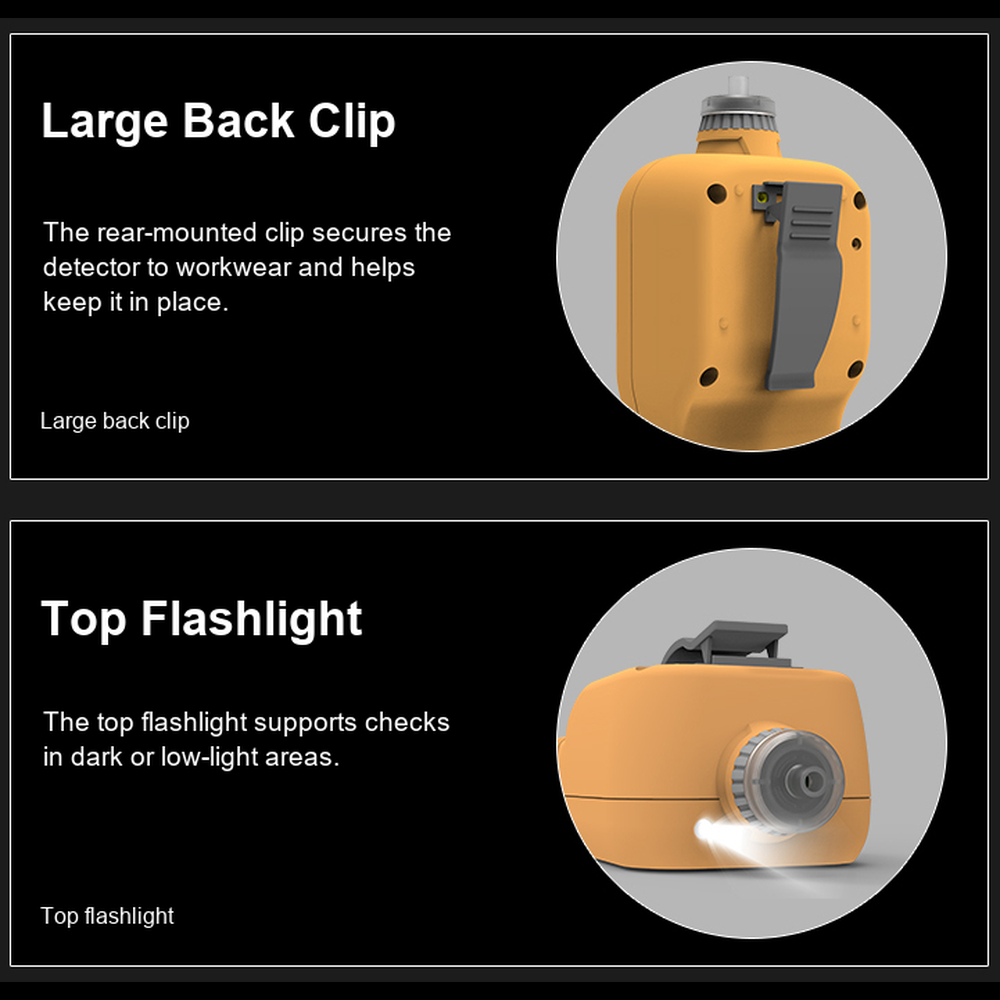

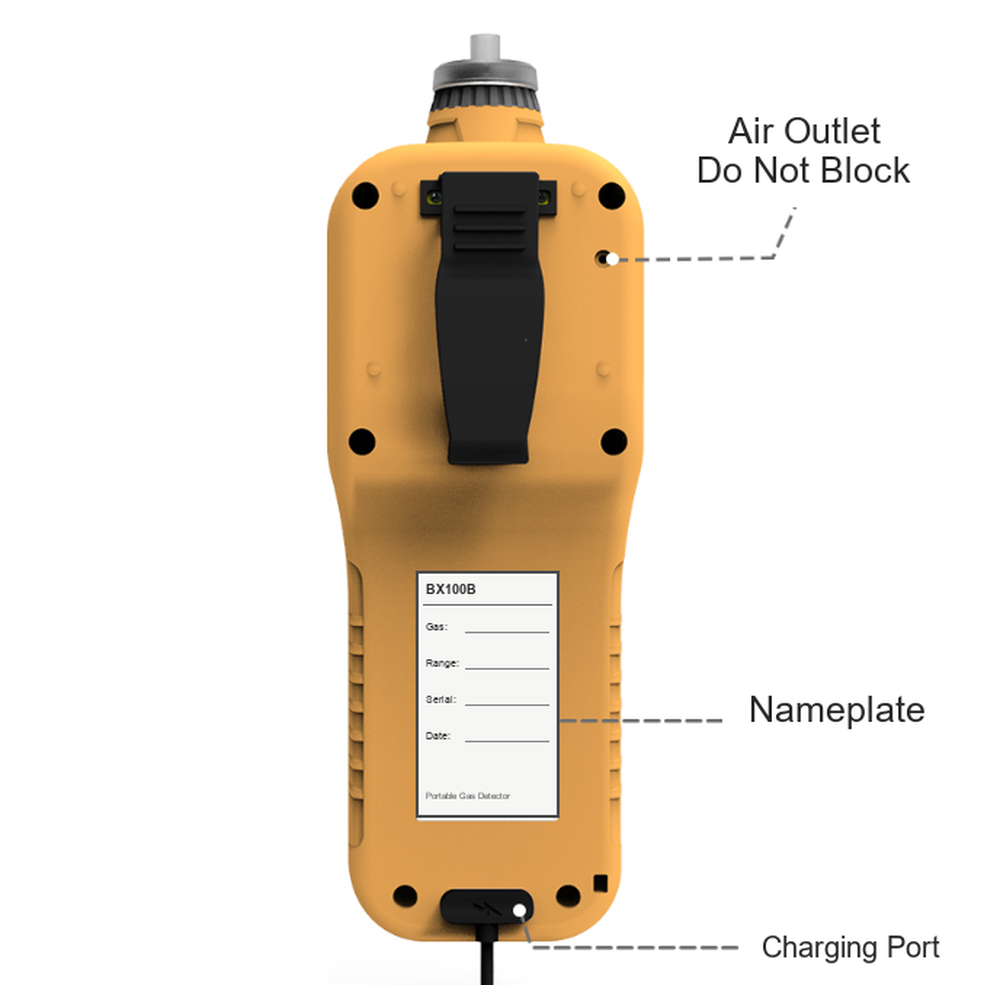

The color LCD shows the gas name, concentration, unit, time, alarm status and battery level. Audible, visual and vibration alarms provide alerts, while magnetic charging, a large back clip and a top flashlight support portable use.
Pump Sampling and Gas Selection

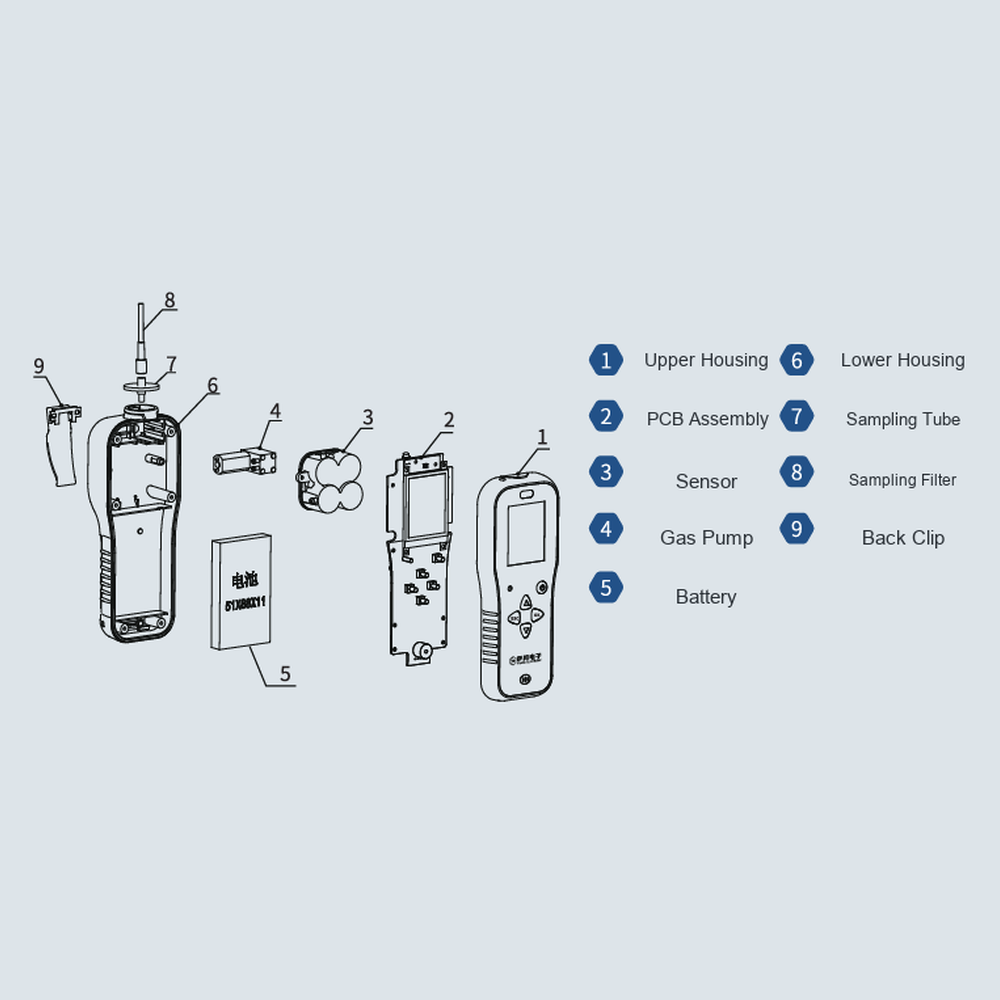

The internal micro pump has ten selectable suction levels. Each order supplies an instrument configured with one selected gas sensor. The gas selector identifies the sensor supplied with that instrument.
Use the gas-specific measuring range, minimum reading and response value when comparing configurations. For remote sampling, select the tubing, filters and connections for the target gas and the instrument's operating procedure.
Order Configurations
| Select an option | SKU |
|---|---|
| Combustible Gas (LEL) | GAS-Q7M4-01 |
| Oxygen (O2) | GAS-Q7M4-02 |
| Carbon Monoxide (CO) | GAS-Q7M4-03 |
| Hydrogen Sulfide (H2S) | GAS-Q7M4-04 |
| Sulfur Dioxide (SO2) | GAS-Q7M4-05 |
| Nitric Oxide (NO) | GAS-Q7M4-06 |
| Nitrogen Dioxide (NO2) | GAS-Q7M4-07 |
| Chlorine (Cl2) | GAS-Q7M4-08 |
| Ammonia (NH3) | GAS-Q7M4-09 |
| Hydrogen (H2) | GAS-Q7M4-10 |
| Hydrogen Cyanide (HCN) | GAS-Q7M4-11 |
| Hydrogen Chloride (HCl) | GAS-Q7M4-12 |
| Phosphine (PH3) | GAS-Q7M4-13 |
| Ozone (O3) | GAS-Q7M4-14 |
Gas Ranges and Sensor Response
| Gas | Range | Minimum Reading | Maximum Sensor Response |
|---|---|---|---|
| Combustible Gas (LEL) | 0-100% LEL | 1% LEL | ≤15 s |
| Oxygen (O2) | 0-30% vol | 0.1% vol | ≤20 s |
| Carbon Monoxide (CO) | 0-1000 ppm | 1 ppm | ≤25 s |
| Hydrogen Sulfide (H2S) | 0-100 ppm | 1 ppm | ≤30 s |
| Sulfur Dioxide (SO2) | 0-100 ppm | 0.1 ppm | ≤30 s |
| Nitric Oxide (NO) | 0-250 ppm | 1 ppm | ≤60 s |
| Nitrogen Dioxide (NO2) | 0-20 ppm | 0.1 ppm | ≤25 s |
| Chlorine (Cl2) | 0-20 ppm | 0.1 ppm | ≤30 s |
| Ammonia (NH3) | 0-100 ppm | 1 ppm | ≤50 s |
| Hydrogen (H2) | 0-1000 ppm | 1 ppm | ≤60 s |
| Hydrogen Cyanide (HCN) | 0-50 ppm | 0.1 ppm | ≤200 s |
| Hydrogen Chloride (HCl) | 0-30 ppm | 0.1 ppm | ≤60 s |
| Phosphine (PH3) | 0-1000 ppm | 0.1/1 ppm | ≤25 s |
| Ozone (O3) | 0-20 ppm | 0.1 ppm | ≤50 s |
Use the response value for the selected gas when planning a measurement. Allow for the sampling path and operating checks required by the configured sensor's instructions.
Instrument Specifications
| Item | Specification |
|---|---|
| Detection format | One selected gas sensor per instrument |
| Sampling | Internal micro pump, 10 suction levels |
| Linear accuracy | <±5% F.S. |
| Alarms | Audible, visual and vibration |
| Alarm sound pressure | >90 dB |
| Display / languages | Color LCD, English and Chinese |
| Power | 3.7 V rechargeable lithium-ion battery |
| Use time | At least 24 hours |
| Standby time | At least 30 days |
| Operating temperature | -35 to 65 °C |
| Operating humidity | 5–95% RH, non-condensing |
| Housing / ingress protection | ABS / IP66 |
| Explosion protection | Ex ib IIC T4 Gb |
| Dimensions | 210 x 73 x 50 mm |
| Approximate weight | 0.4 kg |
| Other features | Magnetic charging, top flashlight, large back clip |

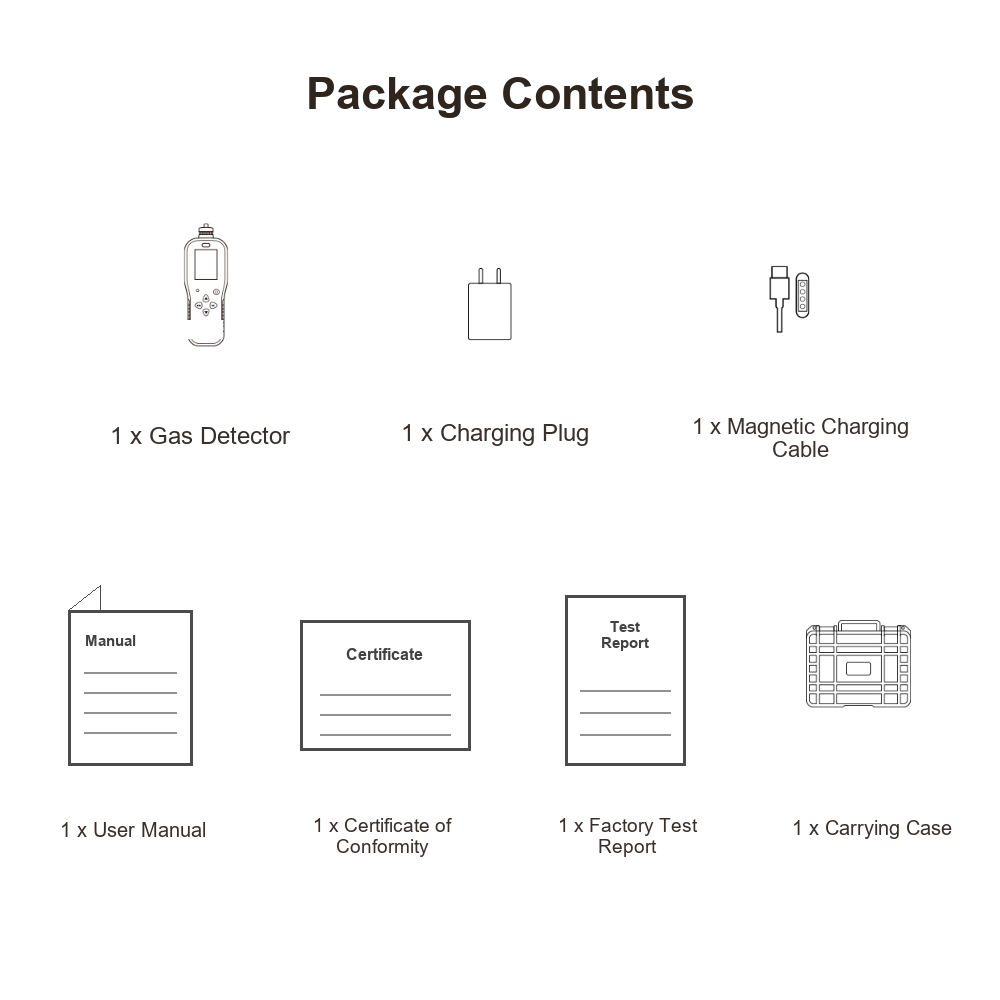

Package Contents
- Gas detector with the selected sensor
- Charging plug and magnetic charging cable
- User manual
- Certificate of conformity and factory test report
- Carrying case
Selection and Use Notes
Match the gas, range and sampling setup to the monitoring task. Follow the configured sensor documentation and the applicable workplace procedure for alarm settings, calibration, bump testing and operating checks.
Compare the diffusion single-gas model and its configurations.
