Description
-
Compact and Portable Design

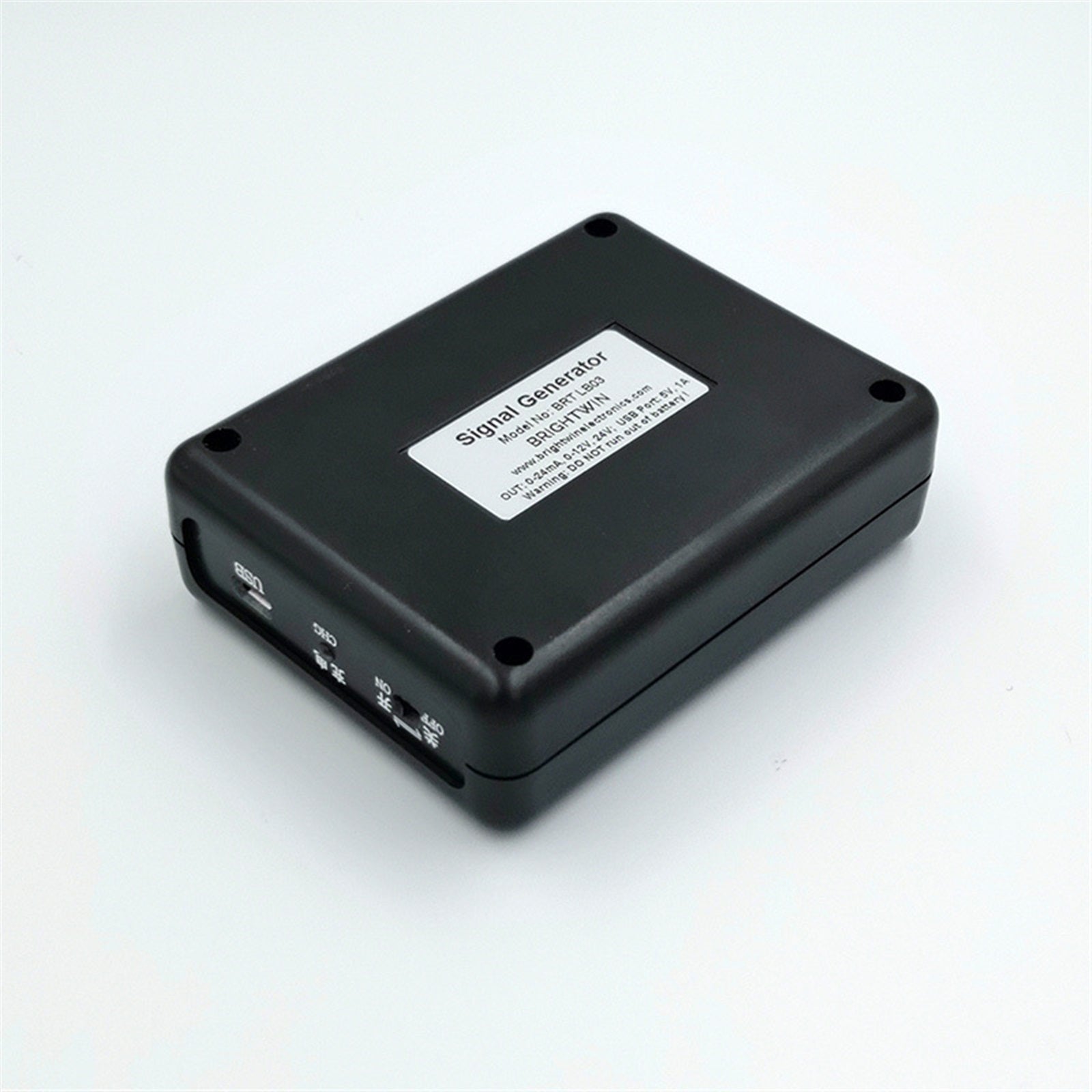

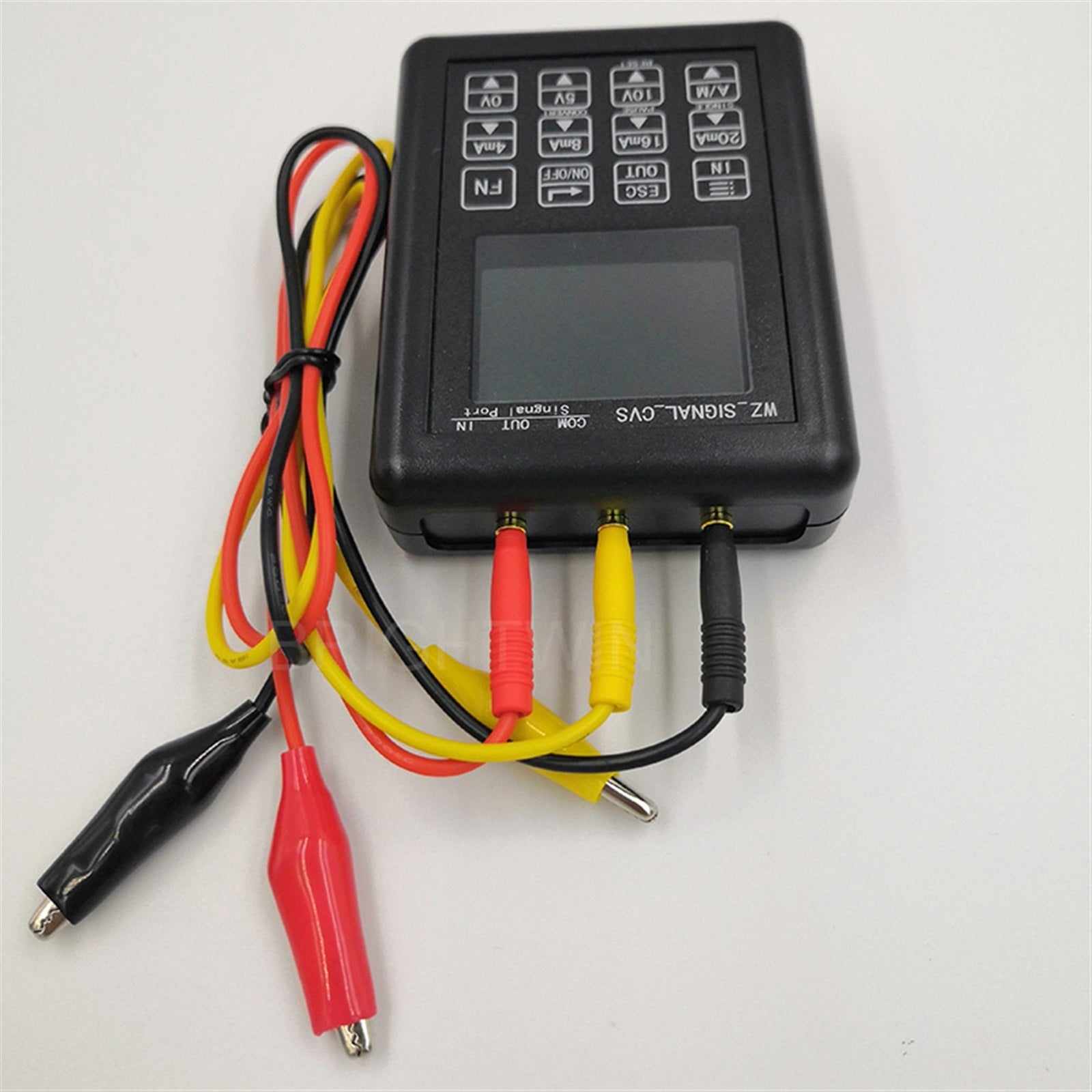

The BRT LB03 Signal Generator is designed for easy portability. With a compact size of just 90x70x28mm, this device is ideal for on-site testing and field applications. Its small form factor makes it convenient for professionals who need precision in tight spaces or on the go. -
Accurate Signal Output
This signal generator offers 0.01mA and 0.01V accuracy, providing highly precise signal generation for both current and voltage measurements. Whether you need 0-24mA current output or 0-10V and 24V voltage output, this device ensures reliable and consistent signal calibration. -
Versatile Signal Generation
The BRT LB03 is highly versatile, offering a 0-24mA signal output range with a 0.01mA resolution for precise current calibration. The voltage output range includes 0-12V (with a 0.01V resolution) and 24V for powering devices that require higher voltage levels. The dual task mode enables you to view both input and output signals simultaneously, making it easier to monitor and adjust. -
Rechargeable Battery for Extended Use
Equipped with a 2000mAh rechargeable battery, this signal generator can be used for extended periods in both laboratories and industrial settings. Its long-lasting battery life ensures you can perform tests and calibrations without frequent recharging. -
Easy-to-Use Features
The BRT LB03 comes with several user-friendly features, such as an ON/OFF button for signal output and a fast output mode for quick signal generation. It also includes automatic ascending, descending, and cycling output modes for more efficient testing. You can also set customizable min and max output values to suit specific needs. -
High-Resolution Display

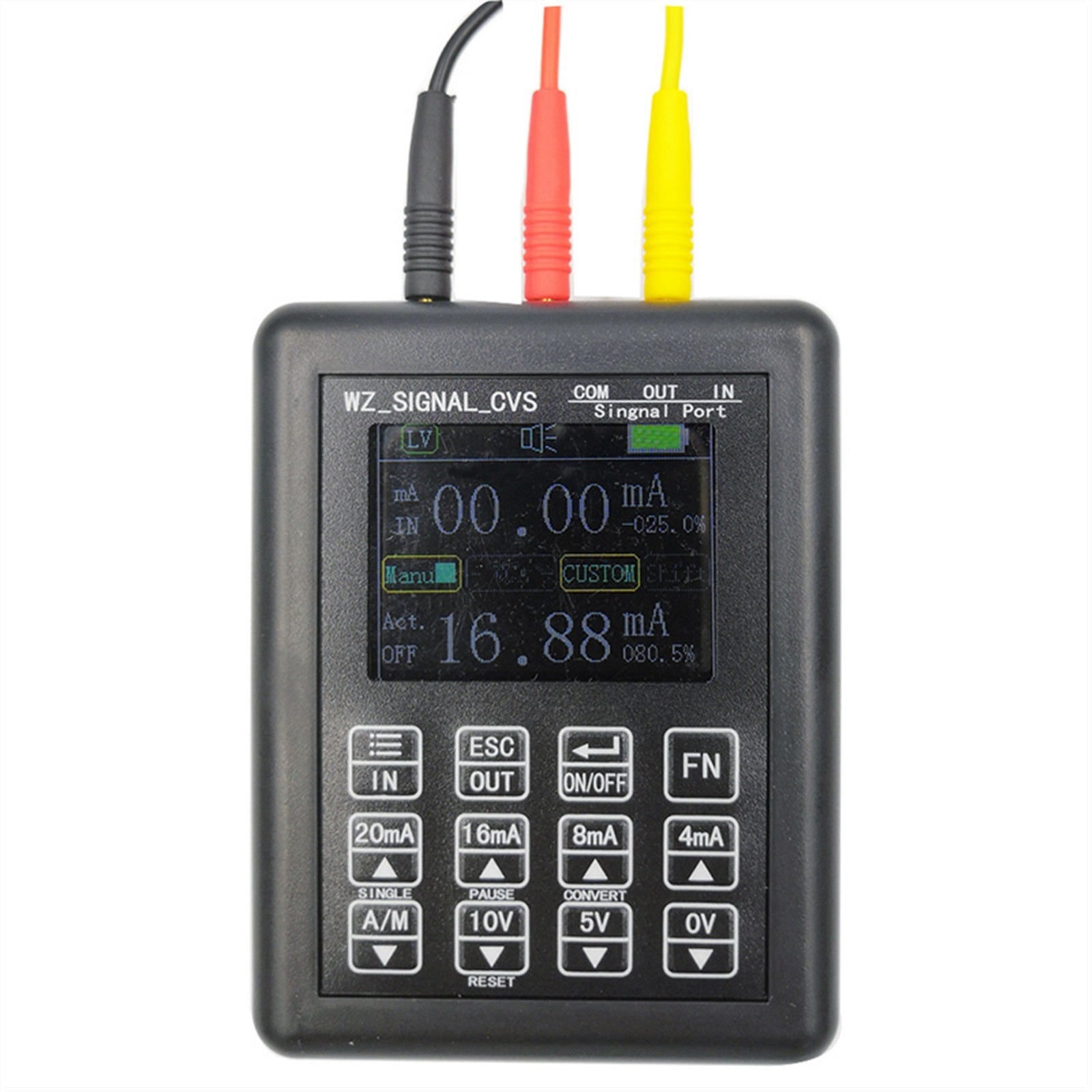

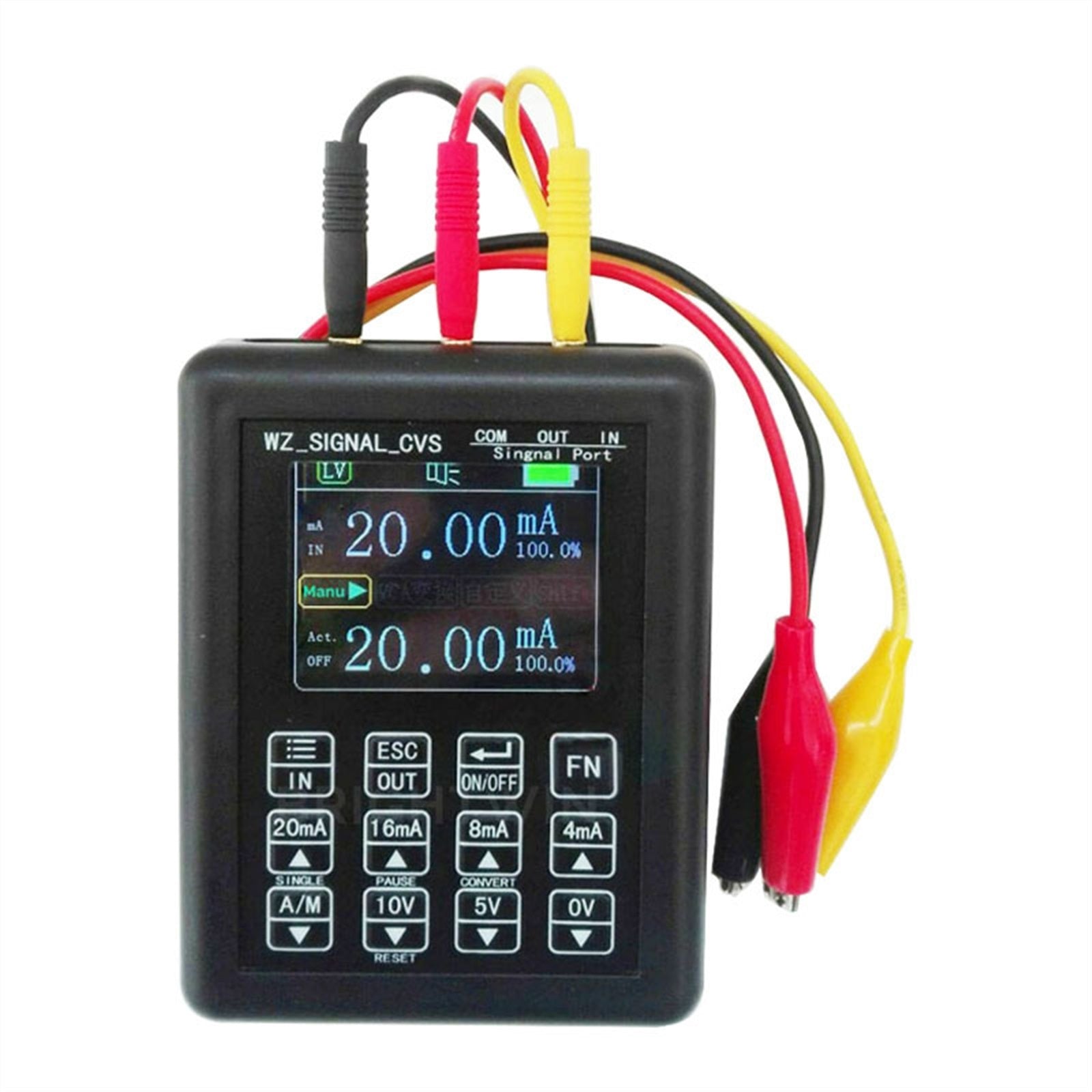

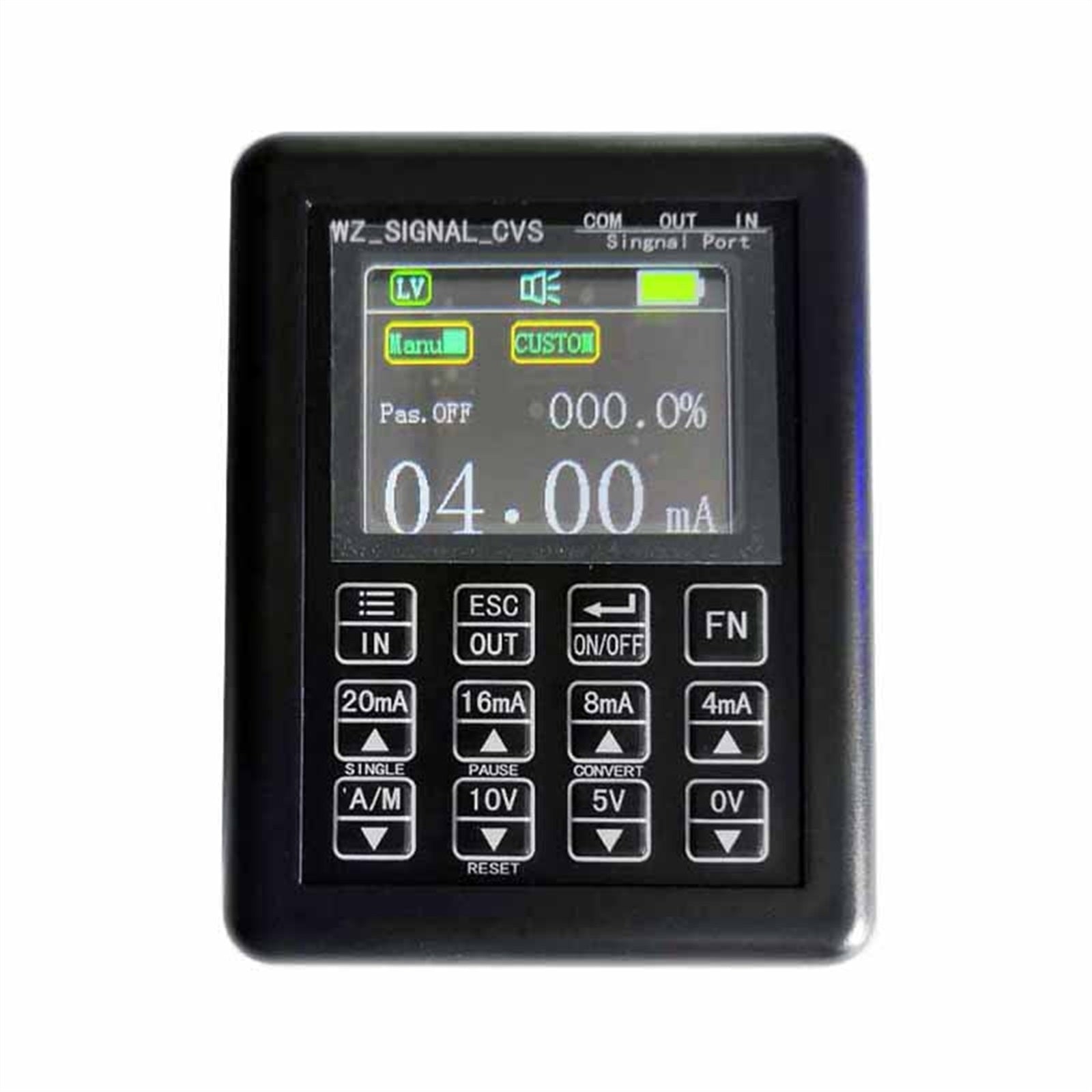

This signal generator includes a large, clear LCD screen that displays input and output signals with high accuracy. Whether using one-screen task display or dual-screen display for more detailed monitoring, you’ll have the clarity you need to make precise adjustments during testing. -
Quality Assurance
The BRT LB03 Signal Generator comes with a 24-month quality warranty, giving you peace of mind when purchasing from Brightwin. You can buy with confidence knowing the product is backed by excellent customer service.
Specifications:
| Feature | BRT LB03 Signal Generator |
|---|---|
| Signal Output (Current) | 0-24mA, Resolution: 0.01mA |
| Signal Output (Voltage) | 0-12V, Resolution: 0.01V |
| 24V Voltage Output | 24V, Drive Current: 24mA |
| Current Input Measurement | 0-24mA, Resolution: 0.01mA |
| Voltage Input Measurement | 0-30V, Resolution: 0.01V |
| Max Load (Current Output) | 750Ω |
| Max Current (Voltage Output) | 30mA |
| Input Impedance (Current) | 100Ω |
| Input Impedance (Voltage) | 2.5MΩ |
| Working Environment | 0°C - 50°C |
| Product Size | 90 * 70 * 28mm |
| Packaging Size | 150 * 100 * 80mm |
| Packaging Weight | 120g |
| Rechargeable Battery | 2000mAh |
