Description

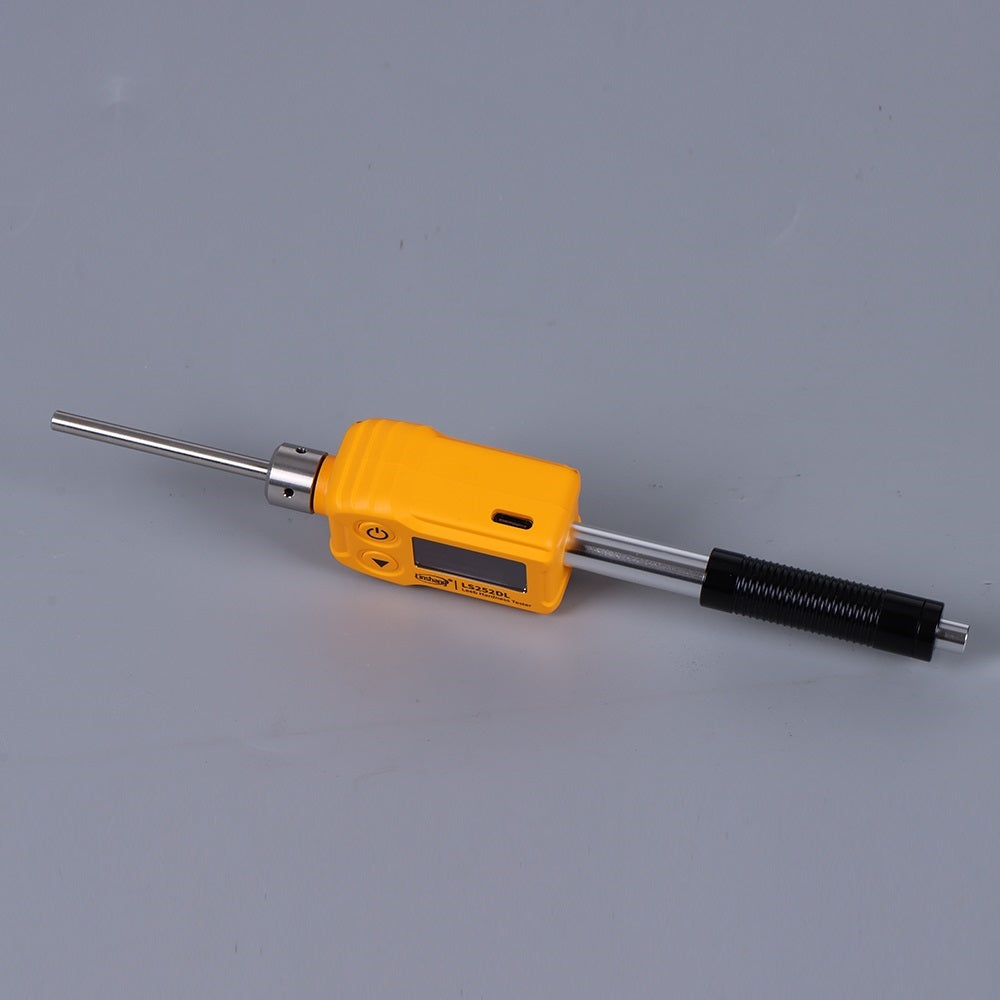

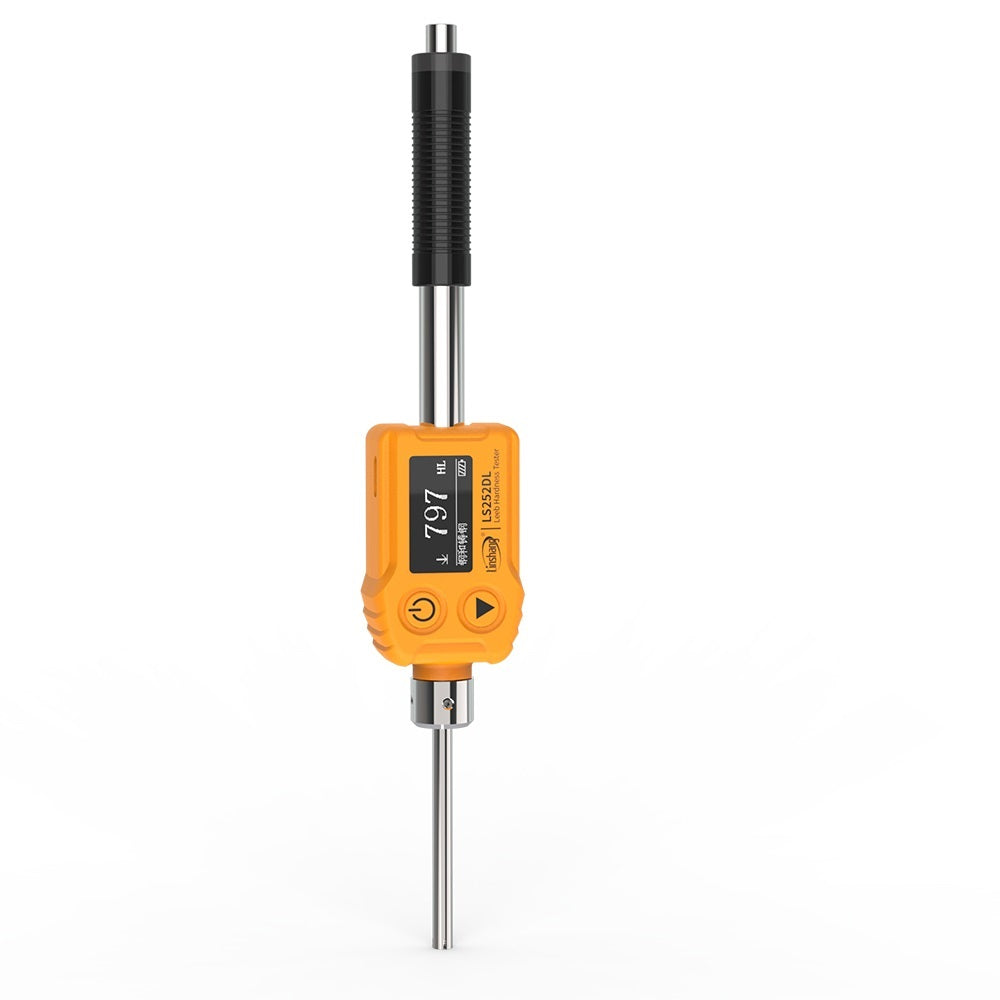

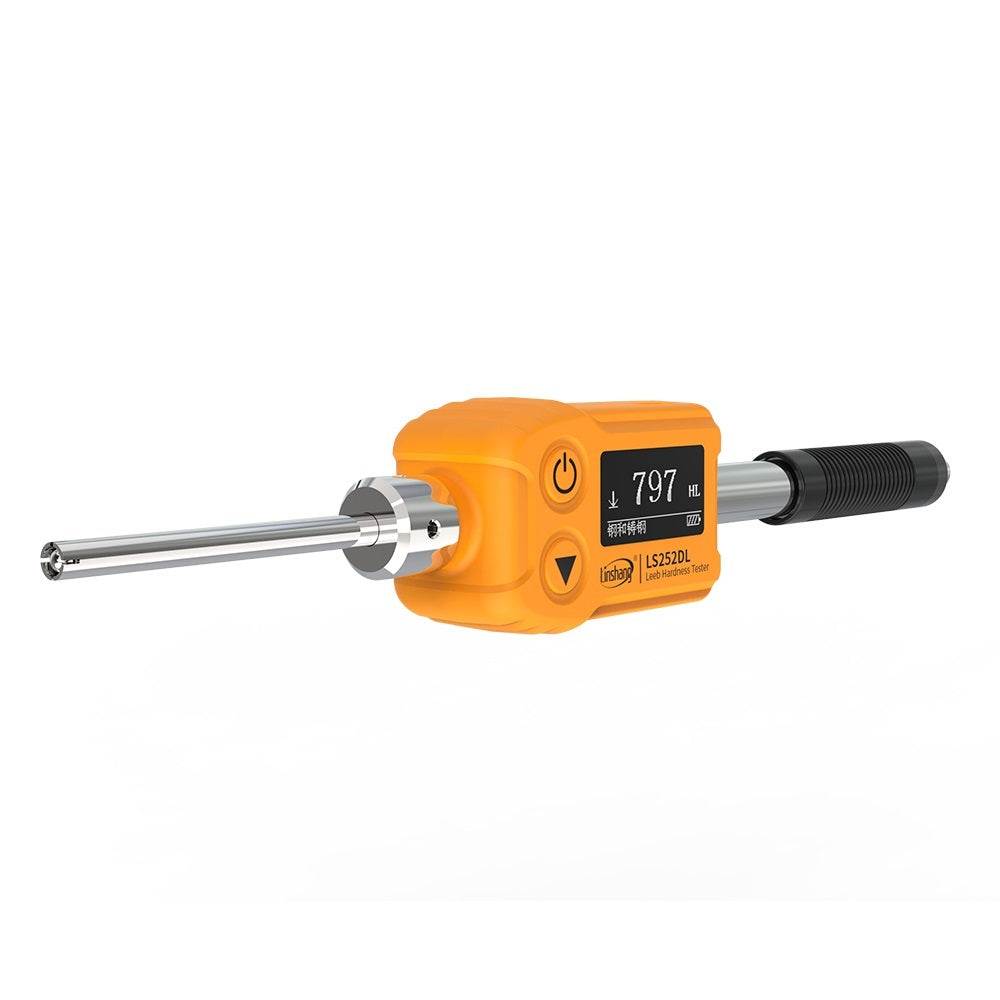

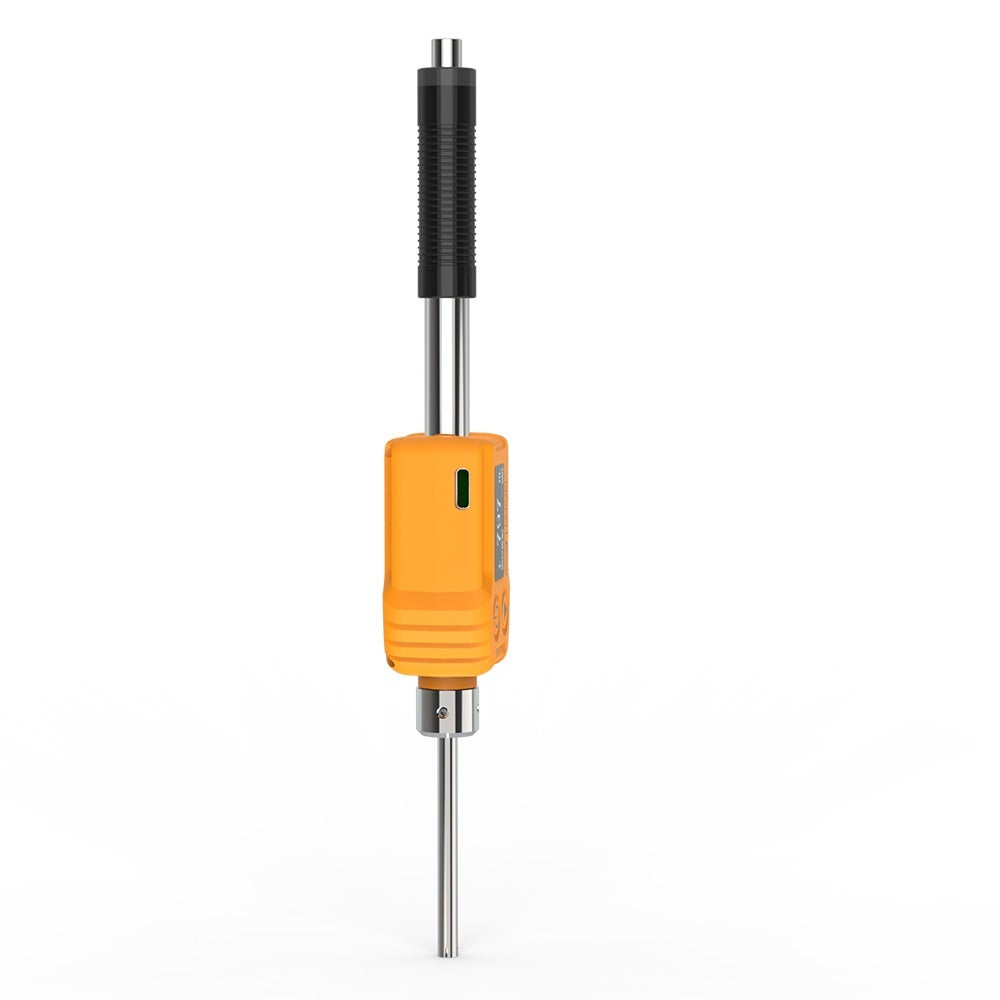

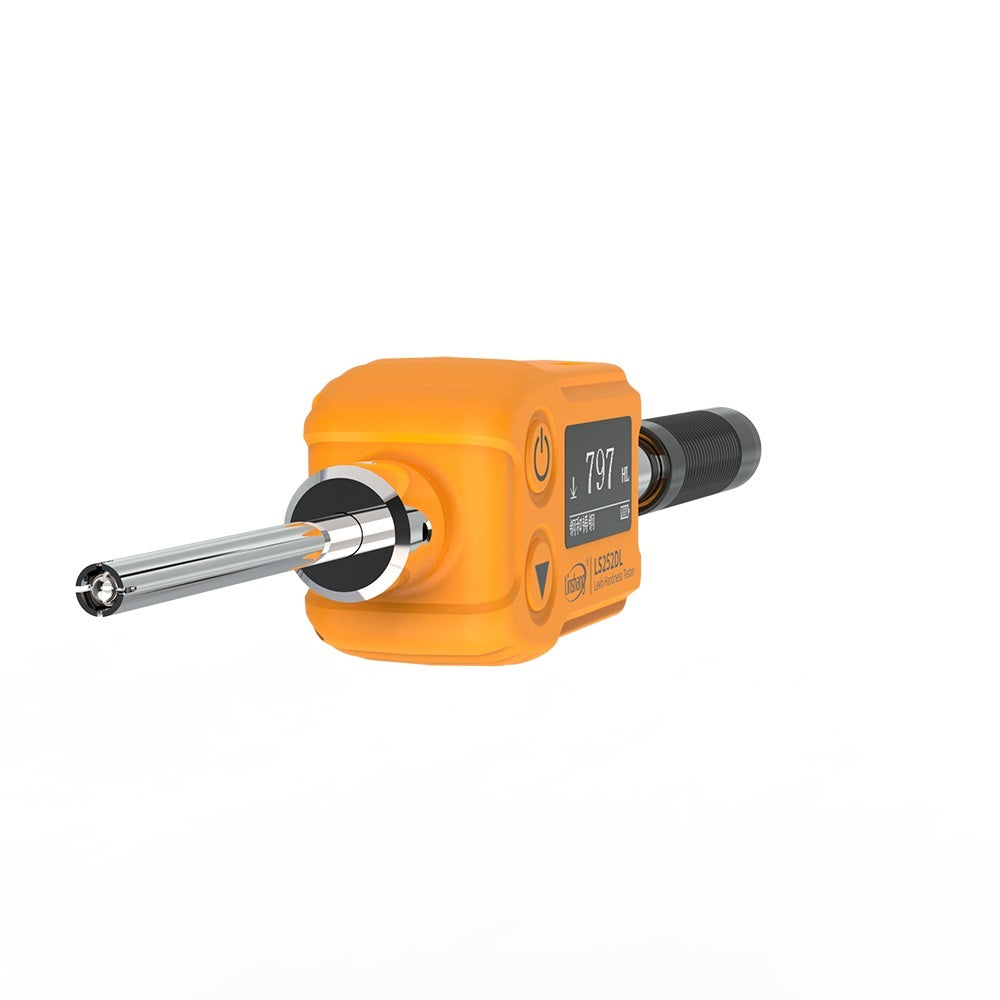

The LS252DL Leeb Hardness Tester is an advanced, versatile device designed for precision testing in tight spaces such as grooves or gears. It features a DL impact device and utilizes cutting-edge dual coil technology, ensuring excellent repeatability and high accuracy. The built-in orientation sensor automatically compensates for measurement errors from different impact directions. This tester supports multiple hardness scales, including Leeb (HL), Vickers (HV), Brinell (HB), Shore (HS), and Rockwell (HRA/HRB/HRC), making it adaptable for various metal hardness testing requirements. Additionally, it offers a selection of metal materials to suit different testing needs, ensuring comprehensive and reliable results.
Features

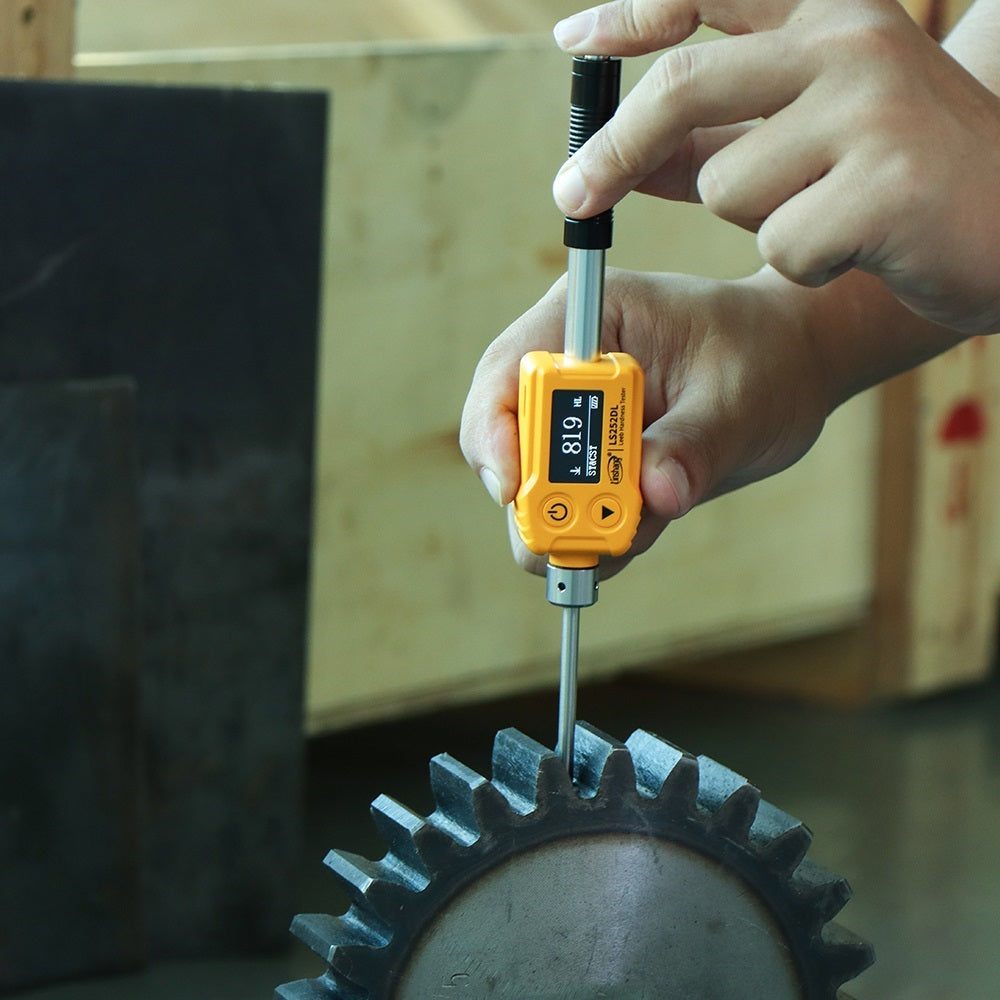

1. DL impact device for testing on grooves or gears where space is tight.
2. It uses advanced dual coil technology for good repeatability and high accuracy.
3. Equip with orientation sensor compensates for measurement errors in different impact directions.
4. It has various hardness scales, which can be interchanged.
5. Various materials can be selected, including steel, alloy tool steel, stainless steel and so on.
6. Impact device DL is partly made of Tungsten carbide, and its hardness is almost equal to the diamond.
7. Using rechargeable lithium battery, the battery can be charged simply from USB port.
8. Users can calibrate the standard parts to eliminate the error.
Specifications
1. Probe: Impact device DL
2. Hardness Scales: HL, HV, HB, HS, HRA, HRB, HRC
3. Measurement Range: HLD: (170-960); HV(194-976); HB(188-651); HRC(17.6-68.5); HS(29.54-99.5); HRB(91.5-100); HRA(60-85.8)
4. Resolution: 1HL
5. Accuracy: ±12 HL, ±6 HL typical
6. Repeatability: 6HL
7. Display: 128 * 64 dot matrix OLED
8. Power Supply: Rechargeable lithium battery 3.7V@250mAh, full charge for over 5000 continuous measurements
9. Charging Port: USB(Type-C)
10. Size: 203*34*24 mm
11. Weight: 78g
12. Working Temperature Range: -10~50℃，0~85%RH（no condensation）
13. Storage Temperature Range: -10~60℃，0~85%RH（no condensation）
Packing List
1. Leeb Hardness Tester*1
2. Nylon Brush*1
3. Locating Sleeve*1
4. USB Data Cable*1
5. User Manual*1
6. Certificate / Warranty card*1
