High Voltage Clamp Meter
The ETCR9100 High Voltage Clamp Leakage Current Meter is expertly designed for safe and accurate measurement of AC leakage and current on high-voltage lines. Featuring advanced CT and shielding technology, this tool is indispensable for electricians, power plant technicians, and maintenance professionals who require reliable online monitoring for lines up to 60KV.
Key Features
- Wide Measurement Range: Accurately measures AC current from 0.00mA up to 600A.
- High Voltage Capability: Safely test insulated wires below 60kV and bare wires below 35kV using the included telescopic insulation rod.
- Wireless Data Transmission: Wirelessly transmits data up to 30 meters, allowing for safe remote monitoring.
- User-Friendly Interface: Features a clear 4-digit LCD with backlight, data hold, data storage (99 groups), and peak hold functions.
- Durable and Safe: Built with a drip-proof Type II structure and robust insulation for maximum operator safety.

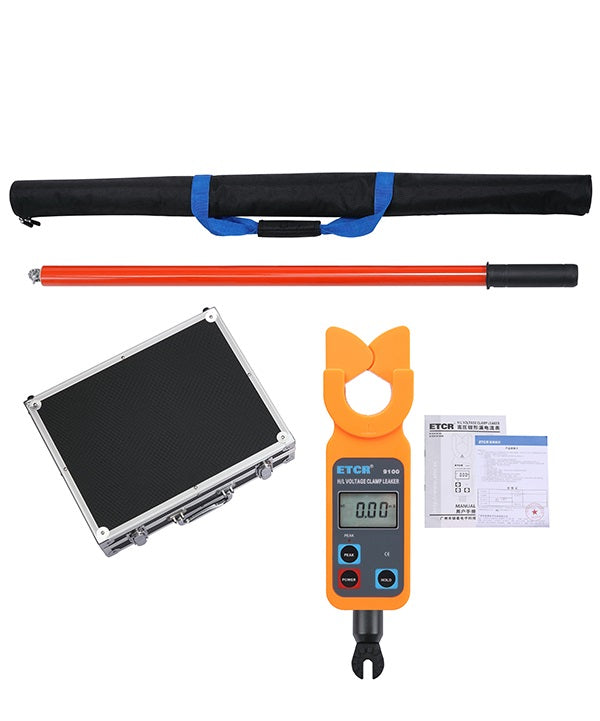

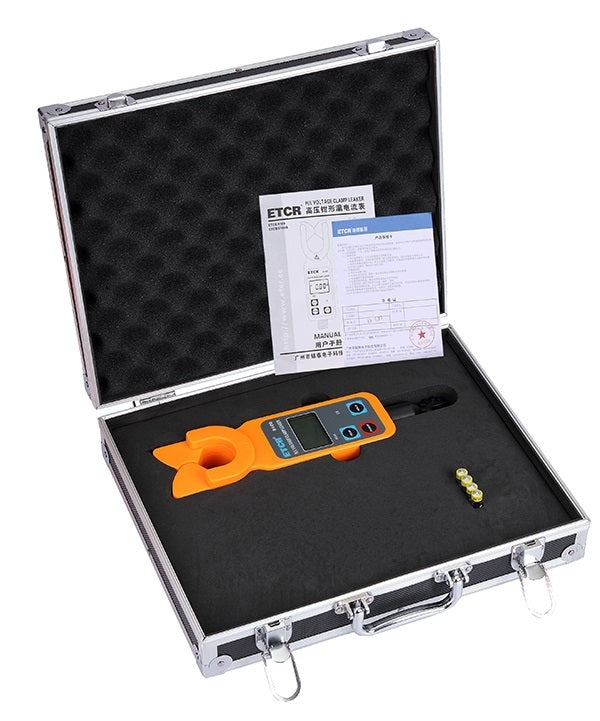

What's in the Box

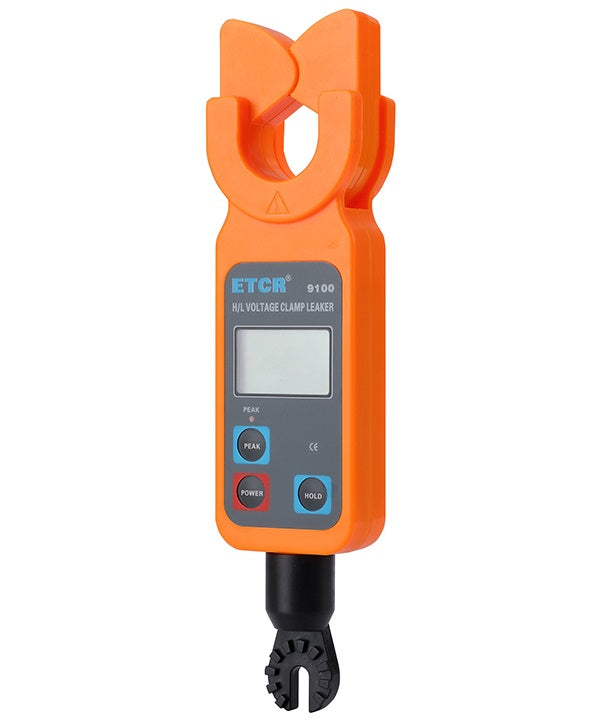

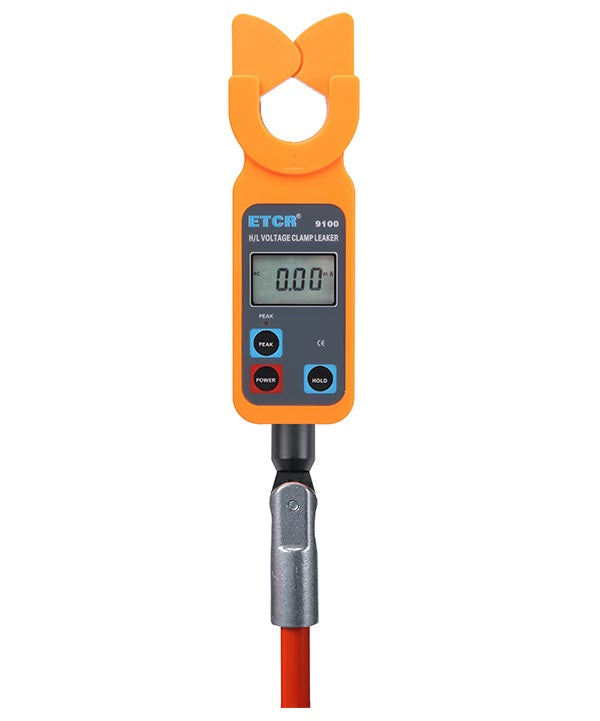

- 1 x ETCR9100 High Voltage Clamp Meter (Detector)
- 1 x Receiver
- 1 x Telescopic Insulation Rod (4.3m)
- 1 x Carrying Case
- 4 x AAA Batteries
- 1 x User Manual
Specifications
| Function | High & Low Voltage AC Current Measurement |
| Power Supply | DC 6V (4 x 1.5V AAA Batteries) |
| Test Method | Clamp CT, Integration Method |
| Transmission Mode | 433MHz Wireless (30m distance) |
| Display | 4-digit LCD with Backlight |
| Clamp Size | Φ33mm |
| Range | 0.00mA - 600A (Automatic) |
| Resolution | 0.01mA |
| Accuracy (23°C±5°C) | 0.00mA-100A: ±1%±5dgt; 101A-600A: ±2%±5dgt |
| Data Storage | 99 Groups |
| Line Voltage | Below 60kV (insulated), Below 35kV (bare wire) |
| Insulation Rod Length | 4.3m |
| Weight | 3.3kg (Total) |
