Advanced Color & Density Measurement

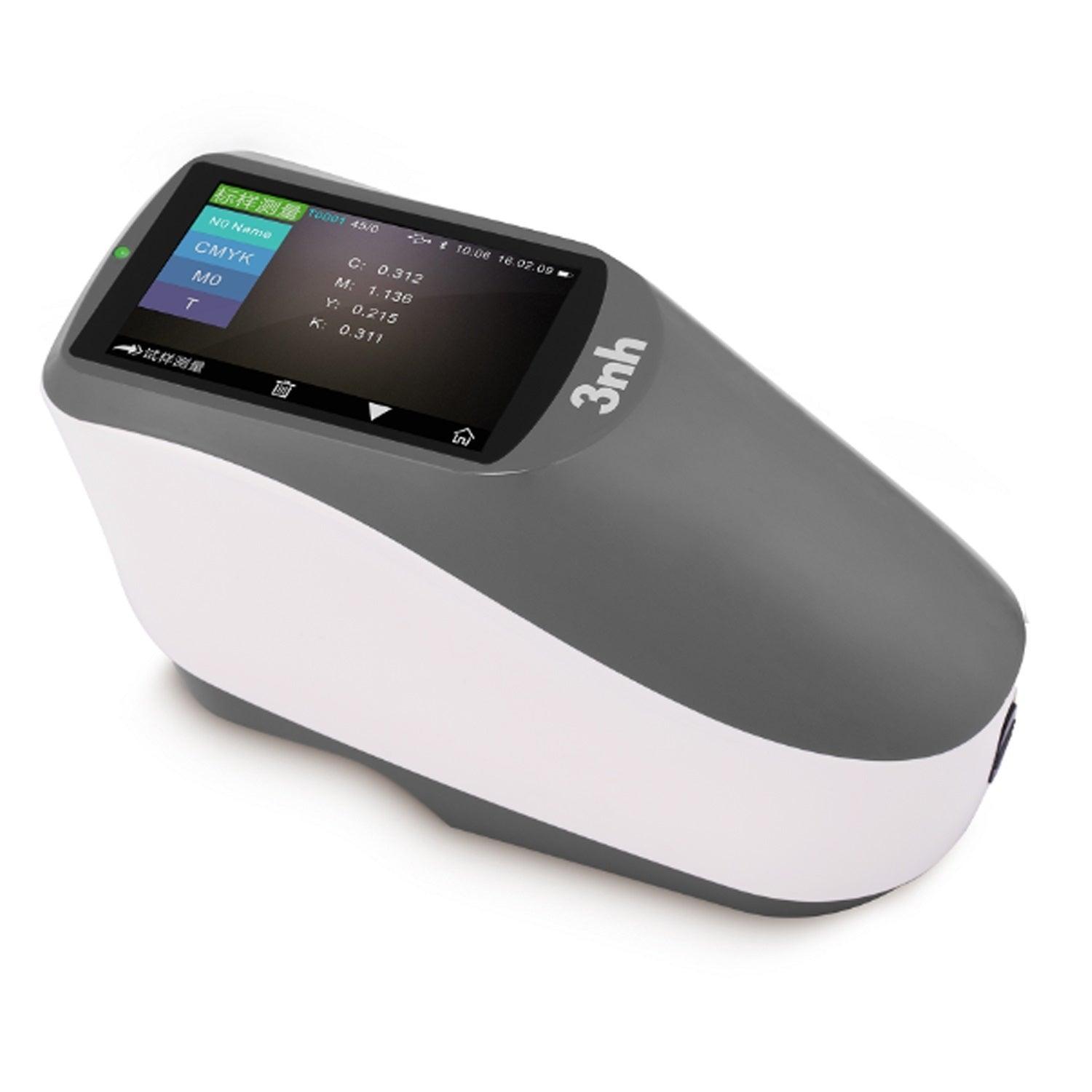

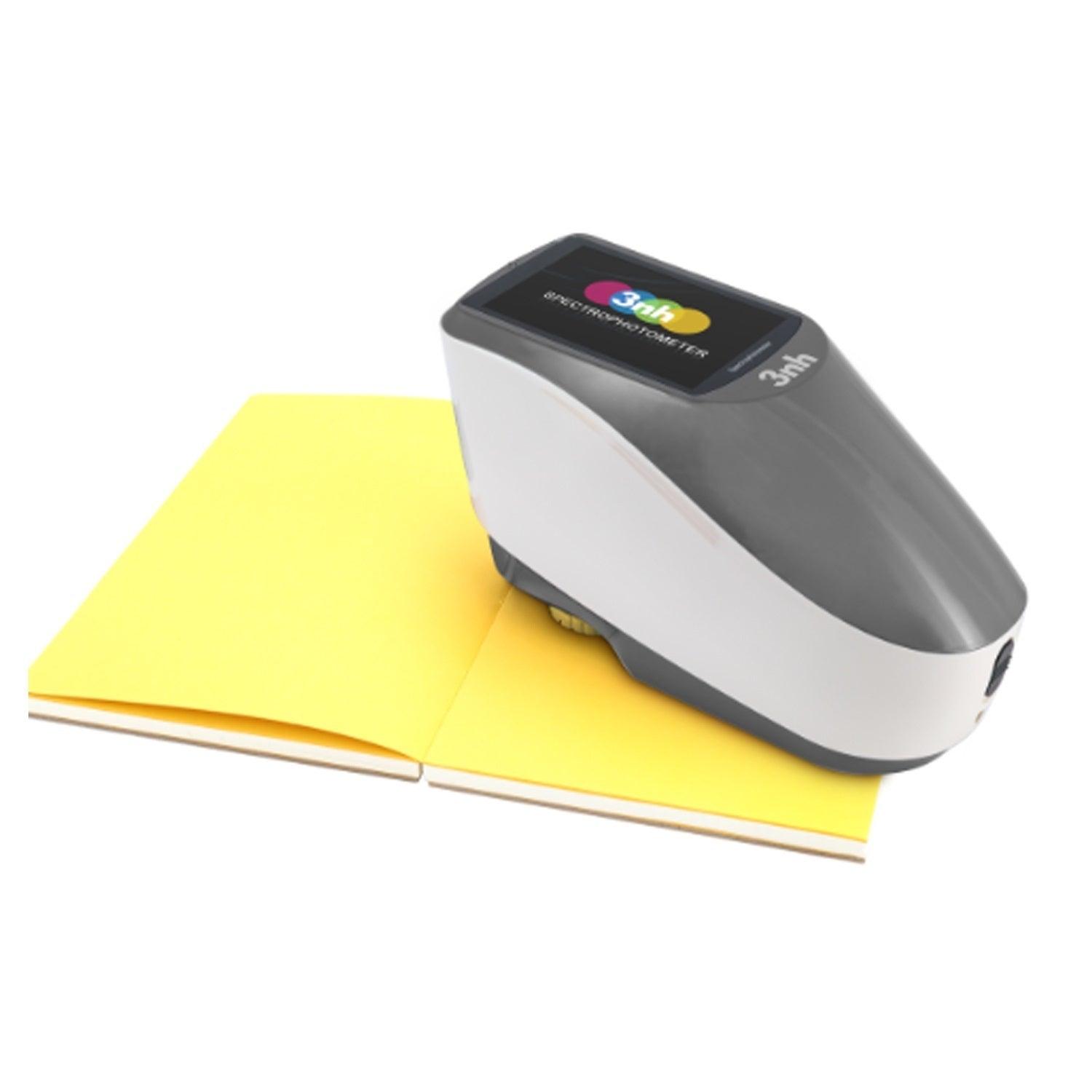

The YD5010 Grating Spectrophotometer is a high-precision densitometer designed for accurate color measurement and quality control in demanding industries. It's the perfect tool for ink printing, film processing, textile dyeing, and plastics, ensuring consistent and accurate color reproduction every time. Its 45/0 optical geometry and compliance with ISO 5-4 and CIE No. 15 standards guarantee reliable and professional results.
Key Features:
- Ergonomic Design: A perfect combination of a modern appearance with a user-friendly structure.
- Advanced Light Source: Utilizes a combined LED light source, including UV light, for long life and low power consumption.
- Versatile Apertures: Comes with optional apertures (Φ2mm, Φ4mm, Φ8mm) to adapt to various sample sizes.
- Comprehensive Data: Accurately measures reflectance spectrum, CMYK density, and LAB values.
- High-End Hardware: Features a 3.5-inch TFT color display, capacitive touch screen, concave grating, and a 256-pixel dual-array CMOS image sensor.
- Large Storage: Capable of storing over 10,000 test data points in its internal memory.
- PC Connectivity: Includes powerful PC software to expand its functionality and data management capabilities.
What's in the Box:
- YD5010 Spectrophotometer
- Power Adapter
- USB Cable
- Built-in Li-ion Battery
- User Manual
- PC Software (Downloadable)
- White and Black Calibration Board
- Protective Cover
- Polarization Filter Box
- Locating Plate
Technical Specifications:
| Model | YD5010 |
| Measurement Geometry | 45/0 (45 ring-shaped illumination, 0-degree viewing angle) |
| Light Source | Combined LED Light, UV Light |
| Wavelength Range | 400~700nm |
| Measurement Aperture | Customized one aperture：Φ2mm,Φ4mm,Φ8mm optional |
| Density Standards | ISO Status A, E, I, T |
| Color Spaces | CIE LAB, XYZ, Yxy, LCh |
| Observer Angle | 2°/10° |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Power Source | Li-ion battery (5000 measurements within 8 hours) |
| Weight | Approx. 600g |
