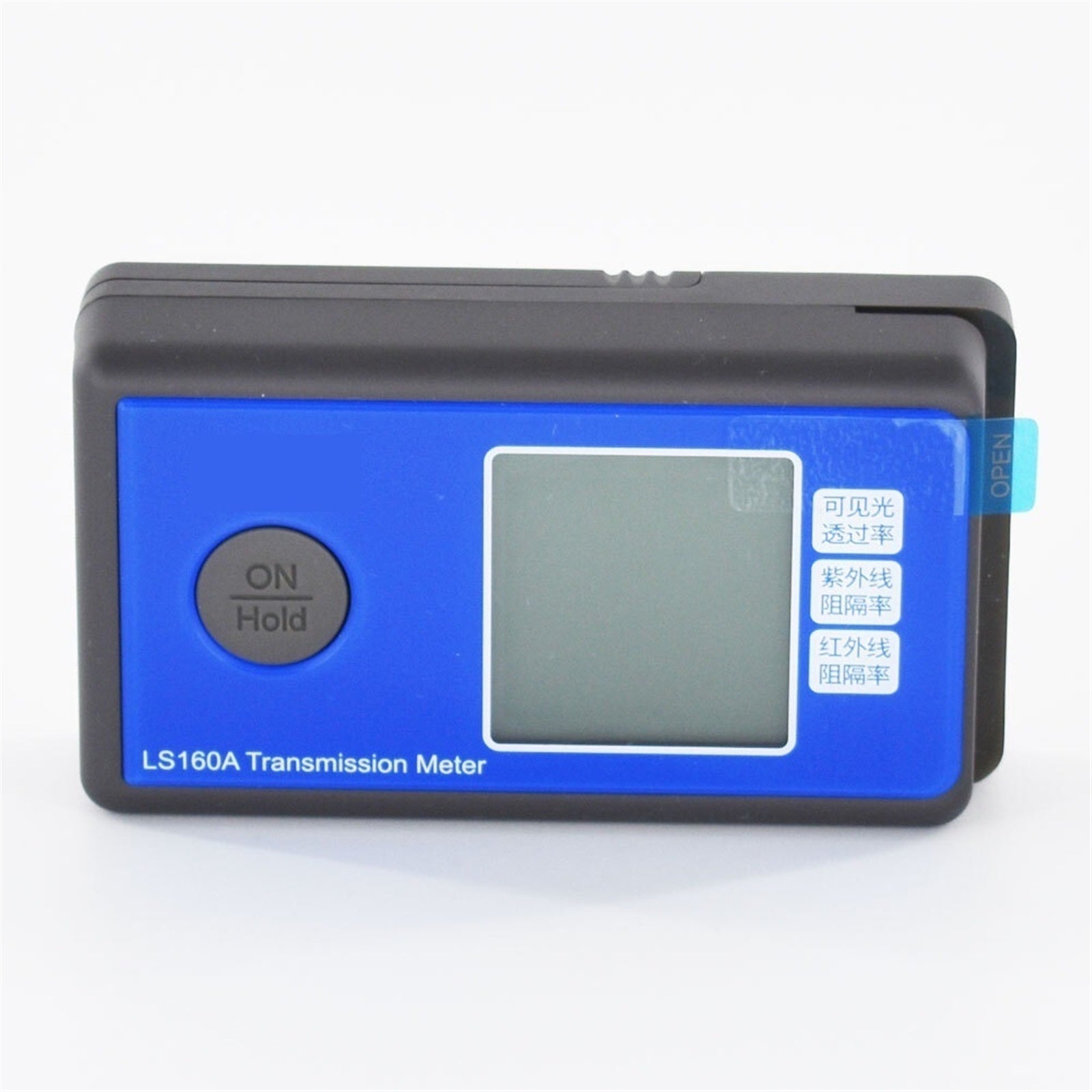

Compact LS160A Solar Film Transmission Meter
The LS160A is a compact and portable device designed for accurately measuring the light transmittance properties of various materials, including solar films, architectural films, and heat-insulating coatings. It provides precise readings for visible light transmittance (530nm), UV rejection, and infrared rejection (1400nm), making it an essential tool for professionals in the window tinting and automotive industries.
Key Features
- Comprehensive Testing: Simultaneously measures visible light transmittance, UV rejection, and infrared rejection.
- Portable Design: Its compact size makes it easy to carry and use on the go.

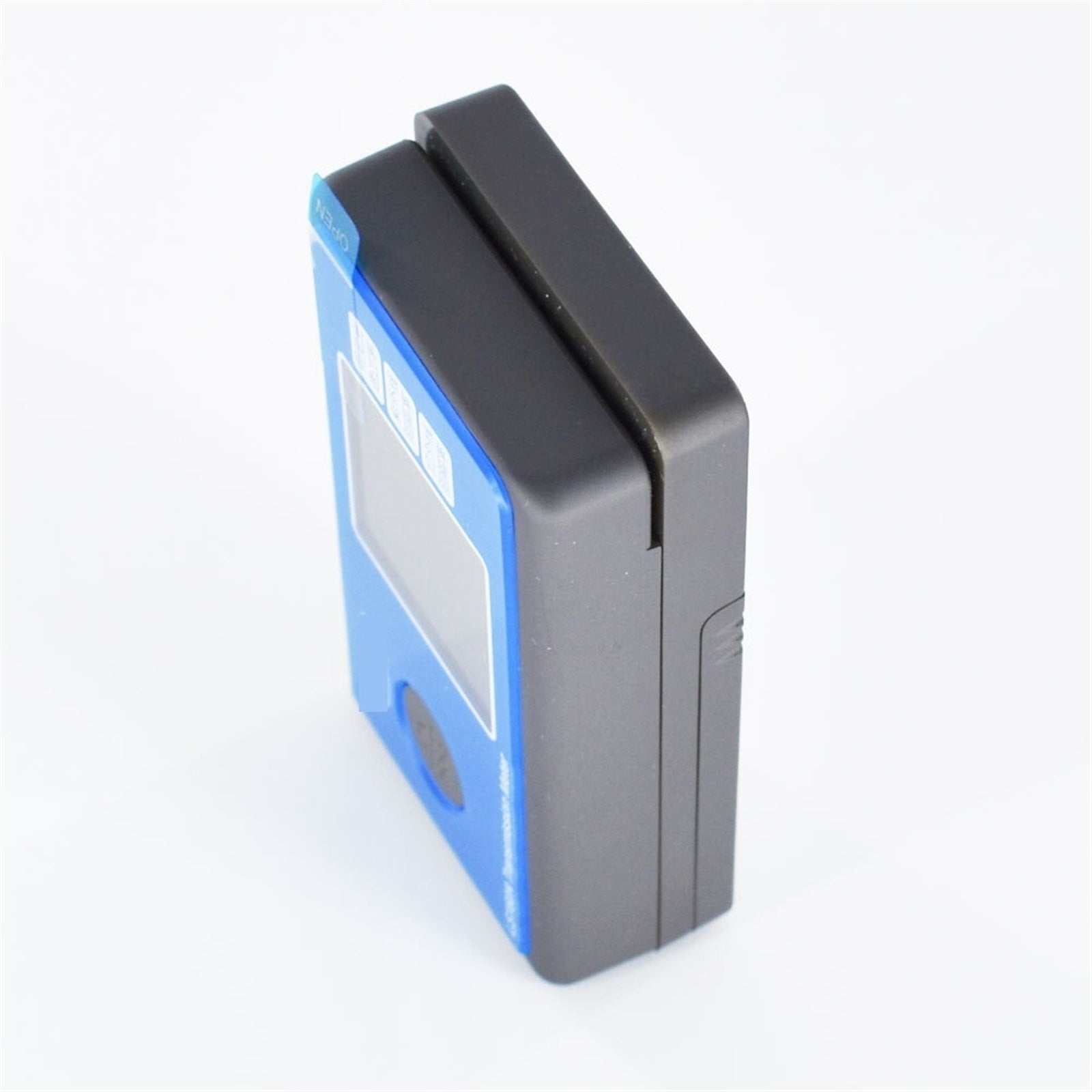

- Versatile Use: Features a 0.8mm test slot, suitable for various types of solar and architectural films.
- High Accuracy: Equipped with real-time dynamic calibration for precise and reliable measurements.

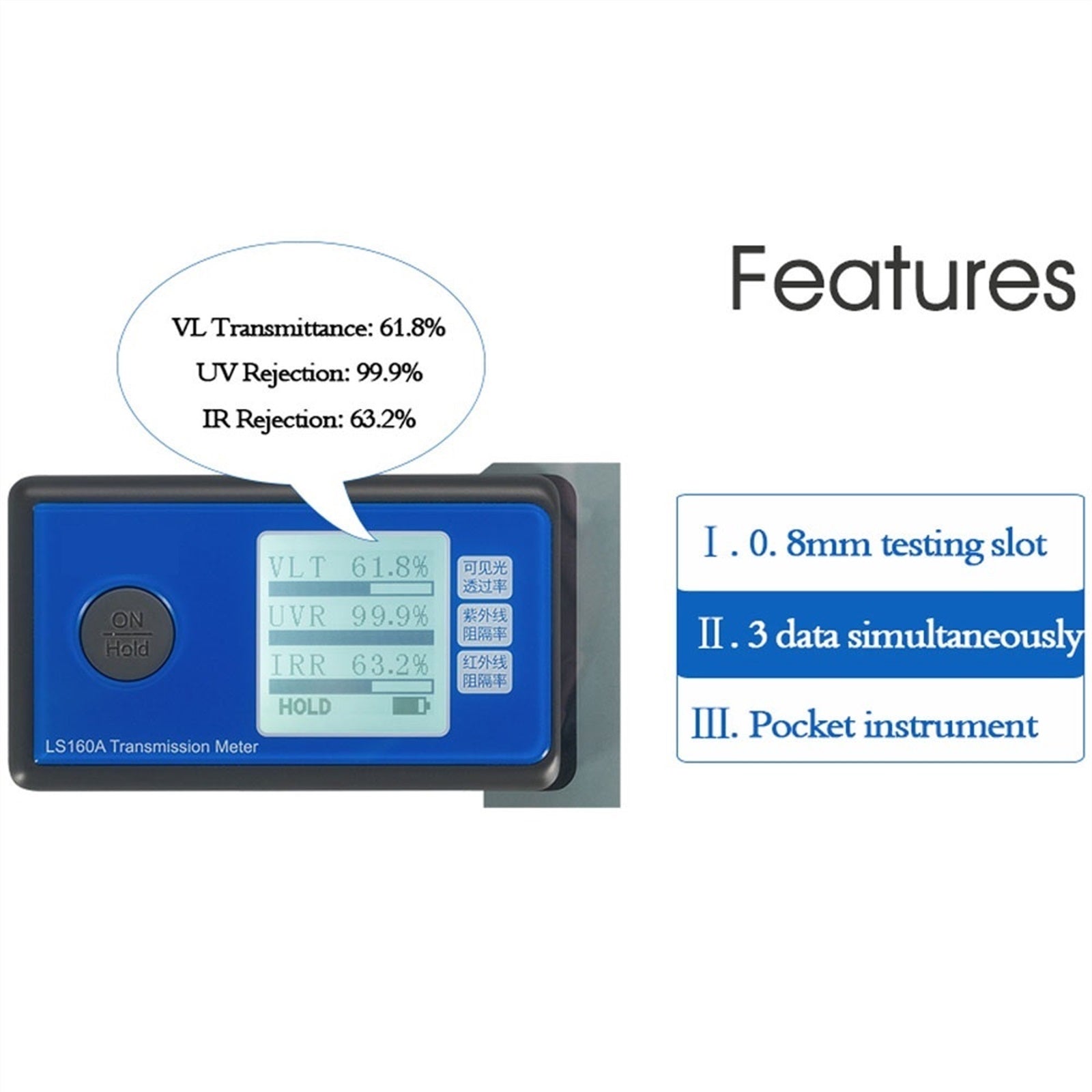

- Data Lock Function: Conveniently lock and review test results on the clear LCD screen.
- Quality Assured: CE certified for quality and reliability.
- Energy Efficient: Ultra-low power consumption for extended battery life.
Specifications
| Dimensions | 93mm x 52mm x 25mm (L x W x H) |
| Weight | 70g (excluding batteries) |
| Maximum Sample Thickness | <0.8mm |
| Resolution | 0.1% |
| Accuracy | ±2% (for colorless and transparent materials) |
| Visible Light Peak Wavelength | 530nm |
| UV Peak Wavelength | 365nm |
| IR Peak Wavelength | 1400nm |
| Display | 128x128 Dot Matrix LCD |

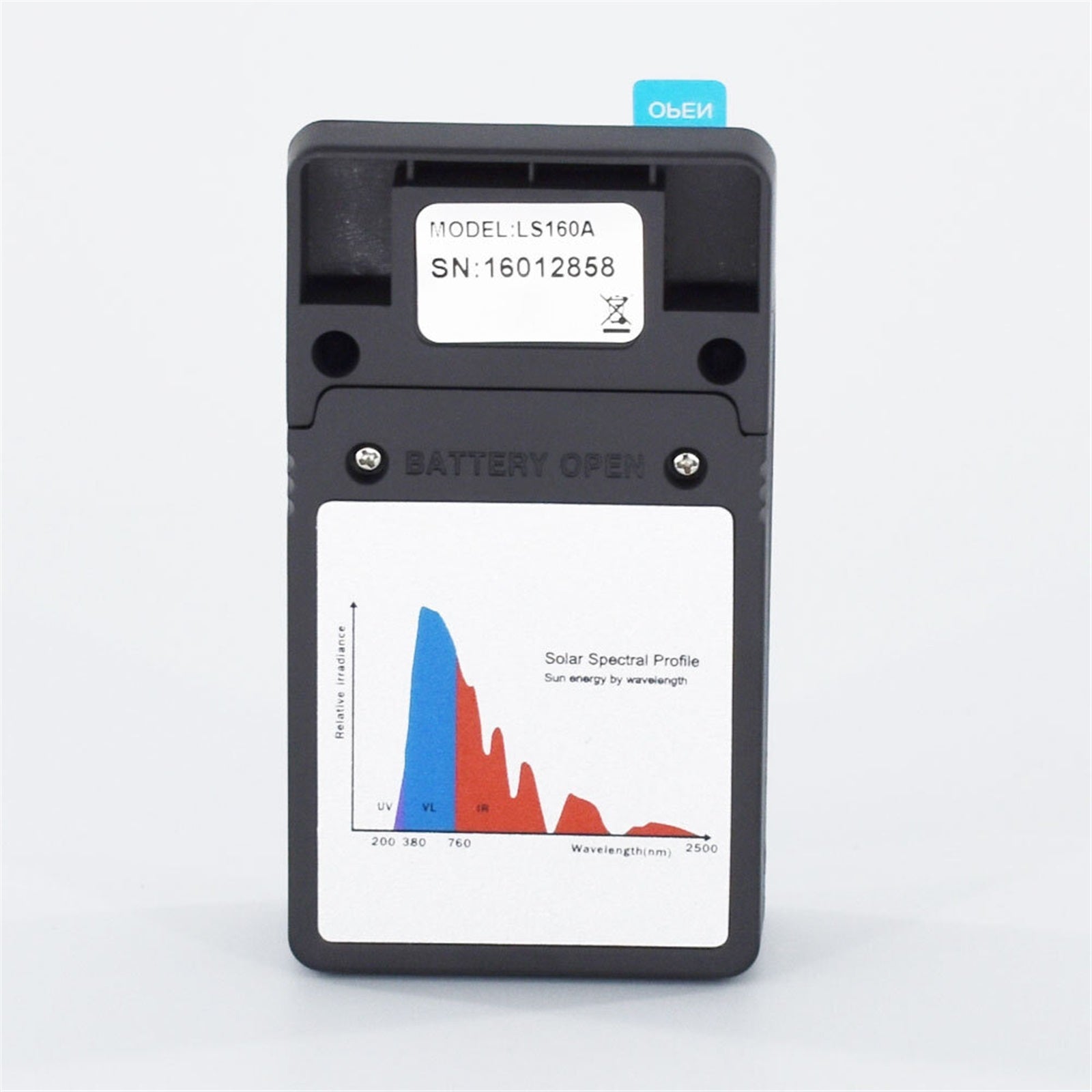

| Battery | 4 x AAA alkaline batteries (not included) |
What's in the Box
- 1 x LS160A Transmission Meter
- 1 x User Manual
- 1 x Certificate / Warranty Card
- 1 x Cloth Packing Bag
