AC vs AC/DC Clamp Meter: Differences, Sensing, and Selection
Quick answer: An AC clamp meter measures alternating current, while an AC/DC clamp meter is designed to measure both alternating and direct current. AC-only models commonly use current-transformer sensing; AC/DC models commonly use Hall-effect sensing. Choose from the current sources you actually test, then compare range, resolution, accuracy, bandwidth, waveform response, jaw access, safety ratings, and zeroing requirements. AC/DC capability is useful, but it does not automatically make a meter more accurate or more suitable for every AC task.
The label on the selector is only the start of the decision. Two meters that both display amperes can respond to different current types, have very different lower measurement limits, and behave differently around distorted waveforms or nearby magnetic fields. A useful comparison begins with how current changes over time and how the clamp converts its magnetic field into a reading.

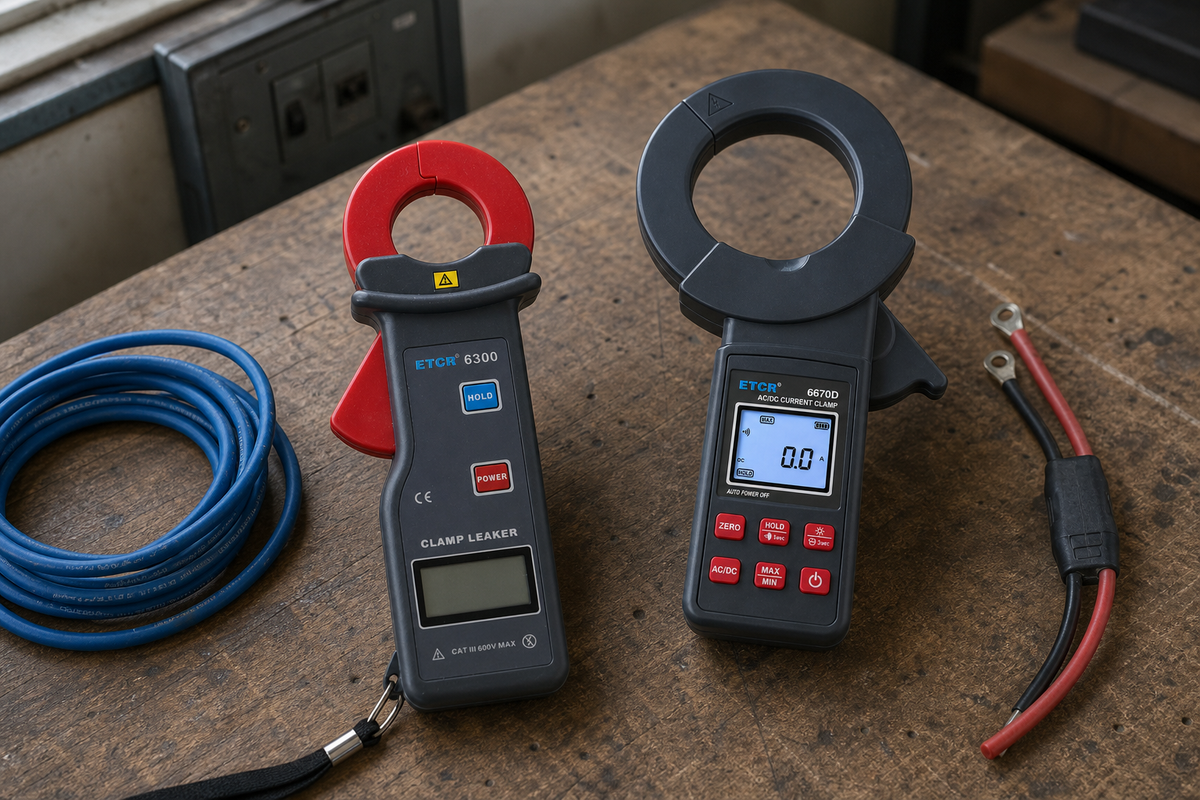

AC vs AC/DC Clamp Meter at a Glance
| Question | AC-only clamp meter | AC/DC clamp meter |
|---|---|---|
| Current measured | Alternating current | Alternating and direct current when the modes and ranges support them |
| Common rigid-jaw sensing | Current-transformer principle | Hall-effect sensing |
| Typical DC preparation | Not applicable to an AC-only current mode | May require zero adjustment with closed, empty jaws |
| Example applications | Conventional AC loads, distribution, and motors | AC systems plus batteries, vehicles, DC power, solar, and mixed equipment |
| Main tradeoff | Can be a focused choice when every required current measurement is AC | Adds DC capability but still requires model-level comparison |
This table describes common instrument families, not a guarantee about an individual model. Flexible Rogowski-coil clamps, leakage clamps, process-current clamps, high-voltage tools, and external current probes have their own capabilities and procedures.
Why the Sensing Method Changes the Current Type
Current-transformer clamps respond to changing current
In a conventional AC clamp, the conductor passing through the closed jaw acts like a one-turn primary winding. Alternating current creates a changing magnetic field in the core, which induces a related signal in the jaw windings. The meter scales that signal into an AC current value.
A steady DC current produces a static magnetic field rather than the continuously changing flux needed for a simple current transformer to generate its output. That is why an AC-only current-transformer clamp cannot become a DC meter through a selector change, software setting, or True RMS feature.
Hall-effect clamps can respond to AC and DC fields
A Hall-effect clamp places a semiconductor sensor in a gap in the magnetic core. The sensor responds to magnetic flux concentrated by the jaws, including the static field associated with DC current and the changing field associated with AC. Electronics condition and scale the signal for the display.
The Hall-effect clamp explanation describes the sensor gap and the need to compensate for offsets from the earth's magnetic field and other nearby fields. This is an important practical difference: DC capability brings a zeroing step and sensitivity to magnetic conditions that an operator must manage.
The broader clamp meter overview separates current-transformer AC clamps, Hall-effect AC/DC clamps, and flexible AC coils. These categories help explain capability, but the exact range, bandwidth, accuracy, and supported modes still come from the individual specification.
Why DC Zeroing Matters
With a Hall-effect clamp, the display may show an offset even when no conductor is inside the closed jaws. Residual magnetism, the earth's magnetic field, nearby conductors, temperature, jaw condition, and instrument drift can contribute. A model-specific zero function removes the present offset from the measurement.
Zeroing is not the same as calibration. Calibration establishes or evaluates instrument response against traceable references under defined conditions. Pressing zero establishes a local baseline for the current setup. It cannot correct the wrong range, an open jaw, magnetic saturation, an overloaded sensor, unsuitable bandwidth, or a damaged instrument.
A cautious DC workflow normally includes:
- Move the clamp away from the conductor and strong nearby magnetic sources.
- Close the empty jaws completely and orient the meter as it will be used.
- Select the specified DC current mode and range.
- Apply the instrument's zero procedure and confirm the baseline.
- Clamp the intended conductor with the stated orientation and alignment.
- Repeat zeroing if the manual requires it or if position, temperature, or the magnetic environment changes.
Some models provide auto detection, AC+DC, direction indication, or separate zero behavior. The Hioki clamp meter function guide shows one model-family workflow that includes zero adjustment and selection among AC, DC, AC+DC, auto, and frequency modes. It illustrates why the exact manual matters rather than supplying one universal button sequence.
Match the Clamp Meter to the Current Source
Building and conventional AC loads
If every planned current measurement is conventional mains-frequency AC, an AC-only clamp can be an efficient choice. Examples include many branch circuits, resistive heaters, lighting circuits, and line-fed motors. Confirm the range, resolution, frequency response, waveform conditions, conductor size, and safety ratings rather than choosing AC-only from the application name alone.
Motors, drives, and electronically controlled loads
A motor may receive AC, but a variable-frequency drive can produce a non-sinusoidal output with changing frequency and switching components. AC capability alone does not establish suitable bandwidth or waveform response. True RMS, low-pass filtering, crest factor, and manufacturer guidance may matter. Those are separate specifications from AC/DC sensing.
Batteries and vehicles
Battery charge and discharge, starter current, vehicle electrical systems, and many control circuits involve DC. An AC-only clamp cannot measure the steady component. An AC/DC meter may fit, but verify polarity indication, expected current, inrush or peak capture, jaw access, low-current resolution, and the procedure for zeroing around strong magnetic fields.
Solar, charging, and DC power systems
Photovoltaic strings, battery storage, DC charging, telecom supplies, and industrial DC buses require a supported DC current mode. The installation can also involve high DC voltage, available fault energy, and current direction. Current capability does not establish that the meter or work practice is suitable for the voltage environment.
Mixed AC and DC maintenance
Technicians who move between distribution, HVAC controls, vehicles, battery systems, drives, and power electronics may benefit from one AC/DC instrument. The benefit is coverage, not universal superiority. If low-level AC leakage, very high AC current, flexible access, or specialized power analysis is the primary task, a focused AC instrument may still perform the job better.
Compare Specifications Beyond AC and DC
After current type, compare the complete measurement requirement:
- Upper range: the meter must tolerate and measure normal, starting, and possible abnormal current within its stated limits.
- Lower range and resolution: a 1000 A maximum tells little about whether the meter can resolve 0.1 A or a few milliamperes.
- Accuracy format: read the percentage-of-reading, digit, and range terms for the mode and frequency in use.
- Bandwidth: verify the supported frequency range; AC or AC/DC labels do not define it.
- Waveform response: determine whether average responding, True RMS, filtering, and crest-factor limits fit the source.
- DC offset and drift: check zeroing, residual error, temperature effects, and orientation guidance.
- Jaw geometry: opening size, shape, alignment, and access can determine whether the measurement is possible.
- Ratings and environment: match measurement category, voltage, accessories, pollution conditions, and operating environment.
- Recording functions: hold, min/max, inrush, peak, logging, and export are separate capabilities.
Do not compare meters by the longest function list. A model with the correct low-current range, jaw opening, frequency response, and safety rating can be more useful than a feature-rich meter that misses the core task.
A Task-First Selection Workflow
- List every current source to be measured: AC, DC, or both.
- Estimate normal, minimum, and starting or peak current.
- Identify waveform and frequency conditions, including drives or electronic loads.
- Confirm conductor diameter, busbar shape, spacing, and access.
- Define the required resolution, accuracy, direction, and recording evidence.
- Match the complete meter and accessories to the circuit and environment.
- Review the current manual for zeroing, orientation, alignment, and mode limitations.
Choose an AC-only clamp when AC is the complete requirement and the model fits it well. Choose an AC/DC clamp when steady or bidirectional DC current is part of the task. If both can measure the source, let range, resolution, waveform response, access, ratings, and evidence requirements decide.
Common Comparison Mistakes
- Assuming digital means DC-capable: a digital display does not identify the current sensor.
- Equating AC/DC with True RMS: current type and AC waveform calculation are separate properties.
- Skipping DC zero adjustment: an offset can materially affect small DC readings.
- Choosing only by maximum amperes: low-current resolution and usable range may be more important.
- Ignoring direction: some DC tasks require polarity or current-direction information that must be supported and interpreted correctly.
- Expecting one meter to replace specialty tools: leakage, flexible high-current, process, ground, and power-quality clamps serve distinct tasks.
Frequently Asked Questions
Can an AC clamp meter measure DC current?
Not if its current mode uses an AC-only current-transformer sensor. A meter needs a sensing design and mode capable of responding to static DC magnetic flux.
Can an AC/DC clamp meter measure AC as well as an AC-only model?
It may, but the label alone cannot answer. Compare the AC ranges, resolution, accuracy, bandwidth, True RMS behavior, filters, crest-factor limits, jaw geometry, and ratings for the actual task.
Does every DC clamp meter need zeroing?
Follow the exact manual. Hall-effect current measurement commonly uses a zero adjustment to compensate for offsets, but implementation and timing differ by model.
Is an AC/DC clamp meter always more expensive or better?
Additional sensing capability can affect cost and complexity, but “better” depends on the measurement. A focused AC clamp can be preferable when its range, resolution, access, and response fit the work more closely.
Do I need AC+DC mode?
Only when the task requires a combined measurement and the instrument defines how that mode calculates and displays the result. Separate AC and DC modes may be more useful for distinguishing components.
Compare Current Type Before Product Features
Begin with the source: AC, DC, or both. Then narrow the choice by current range, resolution, waveform, bandwidth, conductor access, ratings, zeroing, and recording needs. Use the current documentation for each model in the Mcooh clamp meter collection instead of assuming that every AC or AC/DC label represents the same performance.
