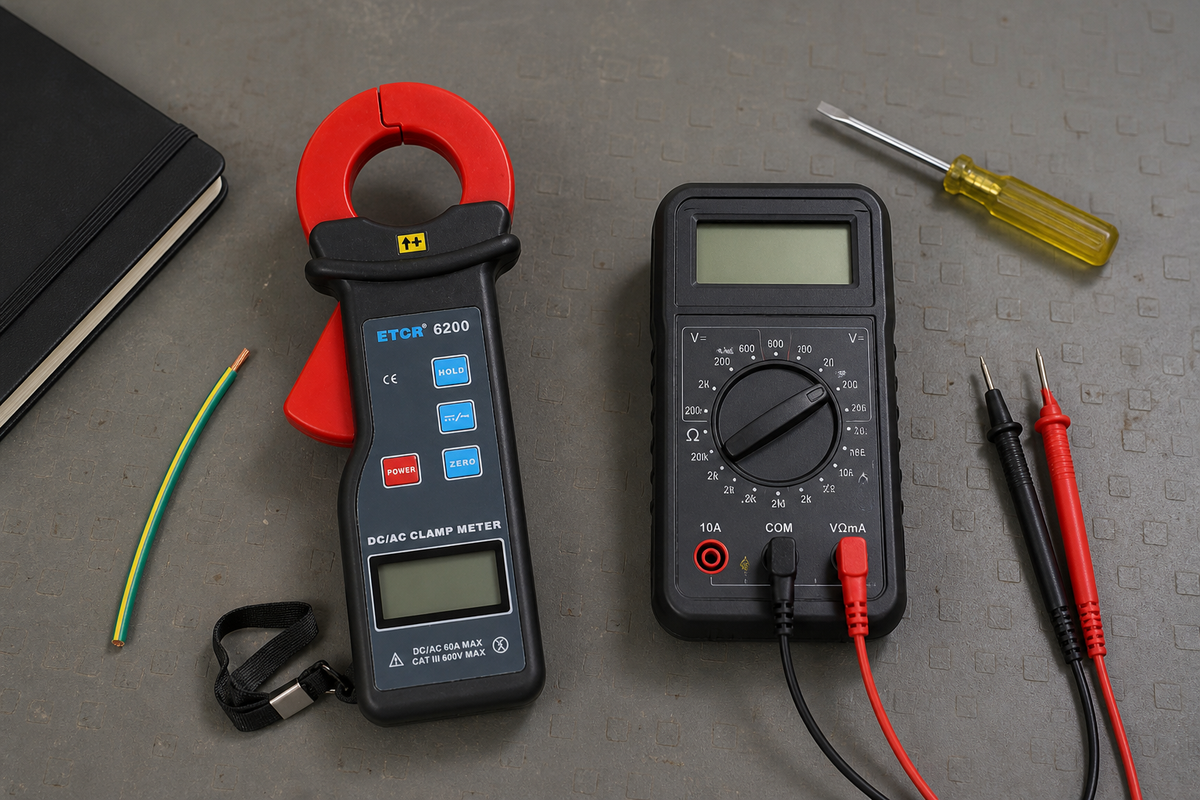

Clamp Meter vs Multimeter: Which Electrical Test Tool Do You Need?

Quick answer: Choose a clamp meter when current measurement around an accessible conductor is the main task, especially when opening the circuit for an in-series measurement is impractical. Choose a digital multimeter when you need contact measurements such as voltage, resistance, continuity, or fine electrical and electronic readings. Many troubleshooting jobs benefit from both. Model specifications, ratings, and the work procedure still control which tool is suitable.

The tools overlap enough to cause confusion. Many clamp meters accept test leads, and many multimeters include a current input. The important difference is not the number of icons on the dial. It is the instrument's primary measurement method, its useful range and resolution, and how it connects to the circuit.

The Core Difference

A clamp meter is built around a jaw or flexible sensor that measures current from the magnetic field around a conductor. It normally measures load current without placing the meter in series with the circuit. A digital multimeter, or DMM, is built around direct electrical inputs. It commonly measures voltage, resistance, continuity, and other quantities with test leads.

For current measurement, a DMM normally becomes part of the current path through a fused input and the selected current terminal. That procedure has model-specific current and time limits and requires the circuit to be prepared correctly. A clamp meter instead surrounds the intended conductor, but the user still needs appropriate access, ratings, training, and control of energized-work hazards.

The Fluke comparison of clamp meters and multimeters summarizes the distinction as current-first versus voltage-first. That is a starting point, not a guarantee that every model offers the same secondary functions.

Clamp Meter vs Multimeter at a Glance

Decision factor Clamp meter Digital multimeter
Primary strength Current around a conductor Contact voltage and general electrical measurements
Typical current method Jaw or flexible probe senses magnetic field Meter is connected in series through a current input
Current range emphasis Often suited to higher load current or specialty clamp ranges Often limited by input, fuse, leads, and allowed measurement time
Fine electrical resolution Varies; general clamps may not resolve small electronic currents Often better suited to millivolt, milliamp, resistance, and electronics work
Conductor access Needs space around the correct conductor Needs safe access to appropriate electrical test points
Voltage and resistance Available only on models with suitable test-lead functions Core functions on most DMMs
Specialized options Leakage current, inrush, flexible coils, process current, power, logging High resolution, frequency, capacitance, temperature, electronics, logging

These are tendencies, not universal specifications. A specialty leakage clamp may resolve currents that a general DMM setup cannot measure conveniently. A high-end DMM may outperform a basic clamp in voltage accuracy, while an advanced clamp may add filtering, inrush capture, and logging. Compare the actual modes rather than the product category alone.

How the Two Tools Measure Current

Clamp current measurement

The jaw or coil detects the field around the conductor. For an ordinary load-current check, the sensor surrounds one intended conductor. Clamping around both outgoing and returning conductors can cause their fields to cancel. The meter must support the current type, expected range, waveform, frequency, and conductor geometry.

Clamp and series current measurement methods compared

Because the clamp does not need to carry the measured load current through its input terminals, it is often practical for feeders, motors, heaters, HVAC equipment, and other operating loads. That does not make any location automatically safe to access. The installation and the meter's ratings still matter.

Multimeter current measurement

A DMM commonly measures current through a dedicated fused input. The circuit is prepared so current flows through the meter in series. The correct terminal, mode, range, lead, fuse, polarity, and allowed duration are essential. Accidentally placing a meter configured for current across a voltage source can create a severe fault.

This method can be useful for lower-current circuits and bench electronics when the DMM's range and burden voltage fit the task. It is not the default way to measure a large feeder current. Always use the exact current procedure in the instrument manual.

Clamp accessories for a DMM

A compatible accessory current clamp can let a DMM display higher current without using its internal current shunt. Compatibility is not automatic. The clamp's output ratio, connector, current type, bandwidth, range, accuracy, and the DMM input mode must match.

Where the Functions Overlap

Many modern clamp meters accept test leads and may measure AC or DC voltage, resistance, continuity, frequency, capacitance, or temperature. Some DMMs can log readings, capture minimum and maximum values, filter drive outputs, or accept current-clamp accessories. A combined-function clamp can be an efficient field tool when its secondary specifications are adequate.

Overlap does not mean equivalence. Check resolution and accuracy for each mode, not only the meter's headline specification. A clamp with a resistance range may not replace a DMM for low-resistance comparison. A DMM with a 10 A input may not replace a clamp for a long-duration high-current trend. A voltage function on a clamp still requires correctly rated leads and a contact procedure.

When a Clamp Meter Fits Better

A clamp meter is usually the more direct choice when:

  • Load current is the main quantity.
  • The conductor can be accessed without opening the current path.
  • The expected current exceeds the practical fused-input range of the available DMM.
  • Several phases or branches need comparative readings.
  • Inrush, leakage, flexible access, process milliamp, or long-term current logging is the real task.
  • The meter has the required AC/DC capability, bandwidth, resolution, jaw size, and installation ratings.

For example, comparing three phase currents at a motor feeder is a clamp-oriented task. Measuring a small residual current may require a dedicated leakage clamp, not simply the lowest range on a general-purpose instrument.

When a Multimeter Fits Better

A DMM is often the better starting point when:

  • Voltage, resistance, continuity, diode behavior, or a low-level signal is the primary question.
  • The work involves control boards, sensors, fuses, switches, wiring continuity, or bench electronics.
  • Fine resolution is more important than high-current range.
  • The required current is within the DMM's protected input capability and the series procedure is appropriate.
  • The measurement needs a specified input impedance, burden voltage, frequency response, or electronics-oriented function.

A DMM can answer whether supply voltage is present, whether a de-energized conductor is continuous, or how a sensor output changes. A clamp current reading cannot substitute for those contact measurements.

When You Need Both Tools

Electrical behavior often depends on more than one quantity. A motor current difference is easier to interpret when supply voltage, operating command, load state, and time are also recorded. A voltage sag and a current rise measured at the same event tell a different story from a voltage sag with little current change.

Two instruments can also support simultaneous readings without repeatedly moving one tool between current and voltage modes. That can improve the time relationship between observations. It does not turn the pair into a power-quality analyzer, and it does not replace the procedure needed for phase, power, harmonics, or transient analysis.

For many technicians, a current-focused clamp and a voltage-focused DMM are complementary rather than competing purchases. The right pair depends on the circuits, current range, waveform, access, and documentation requirements.

Choose the Tool From the Measurement

  1. Write down the quantity: current, voltage, resistance, continuity, frequency, temperature, or another parameter.
  2. Estimate the normal and maximum value, including startup or transient conditions when relevant.
  3. Identify AC, DC, waveform distortion, and required bandwidth.
  4. Confirm whether the correct conductor or electrical test points are safely accessible under the work procedure.
  5. Compare range, resolution, accuracy, crest factor, filtering, and logging for the exact mode.
  6. Verify maximum working voltage, installation category, leads, probes, fuses, and environmental limits.
  7. Decide whether one combined tool is adequate or whether two instruments provide clearer, simultaneous evidence.

Browse the Mcooh clamp meter collection by current type, range, jaw or coil design, resolution, and data requirements. Treat product titles as orientation; use the current manual and mode-specific specifications for the final decision.

Technician choosing an electrical test tool for different measurement tasks

Common Selection and Measurement Mistakes

  • Choosing by maximum current without checking the low end that must be resolved.
  • Assuming every clamp measures DC or every DMM supports the required current.
  • Clamping an entire cable for a normal load-current reading.
  • Leaving a test lead in a current terminal before a voltage measurement.
  • Comparing two tools in different modes, ranges, bandwidths, or time responses.
  • Assuming a True RMS label removes crest-factor, bandwidth, or overload limits.
  • Using current alone to declare a component healthy or faulty.

Frequently Asked Questions

Can a clamp meter replace a multimeter?

Sometimes for a limited field workflow, if the clamp also has suitable voltage, resistance, continuity, and other required functions. It may not match a DMM's resolution, input specifications, or electronics capabilities, so compare each mode.

Which tool is more accurate?

Neither category is universally more accurate. Accuracy depends on the model, function, range, waveform, bandwidth, conductor position, leads, calibration status, and conditions. Compare specifications for the quantity you will measure.

Which tool is better for current?

A clamp meter is usually more practical for load current around an accessible conductor. A DMM can be appropriate for lower current when its fused input, burden voltage, range, and series procedure fit the circuit.

Can a multimeter use a current clamp?

Yes, if the accessory output and connector match a supported DMM input and the user applies the correct conversion or ratio. Check both manuals and treat their combined uncertainty and bandwidth as one system.

Do I need True RMS on both tools?

You need a suitable True RMS response when measuring supported non-sinusoidal AC waveforms. The requirement applies to the quantity and waveform, not automatically to every task. Range, crest factor, bandwidth, and filtering also matter.

Build a Measurement-First Tool Kit

Choose a clamp meter for the current and conductor access you actually encounter, and choose a multimeter for the contact measurements and resolution your troubleshooting requires. If one instrument cannot cover both roles with documented performance, use a complementary pair. Start with the current-focused options in the Mcooh clamp meter collection and verify every required mode against current documentation.

Related guides: clamp meter fundamentals.
