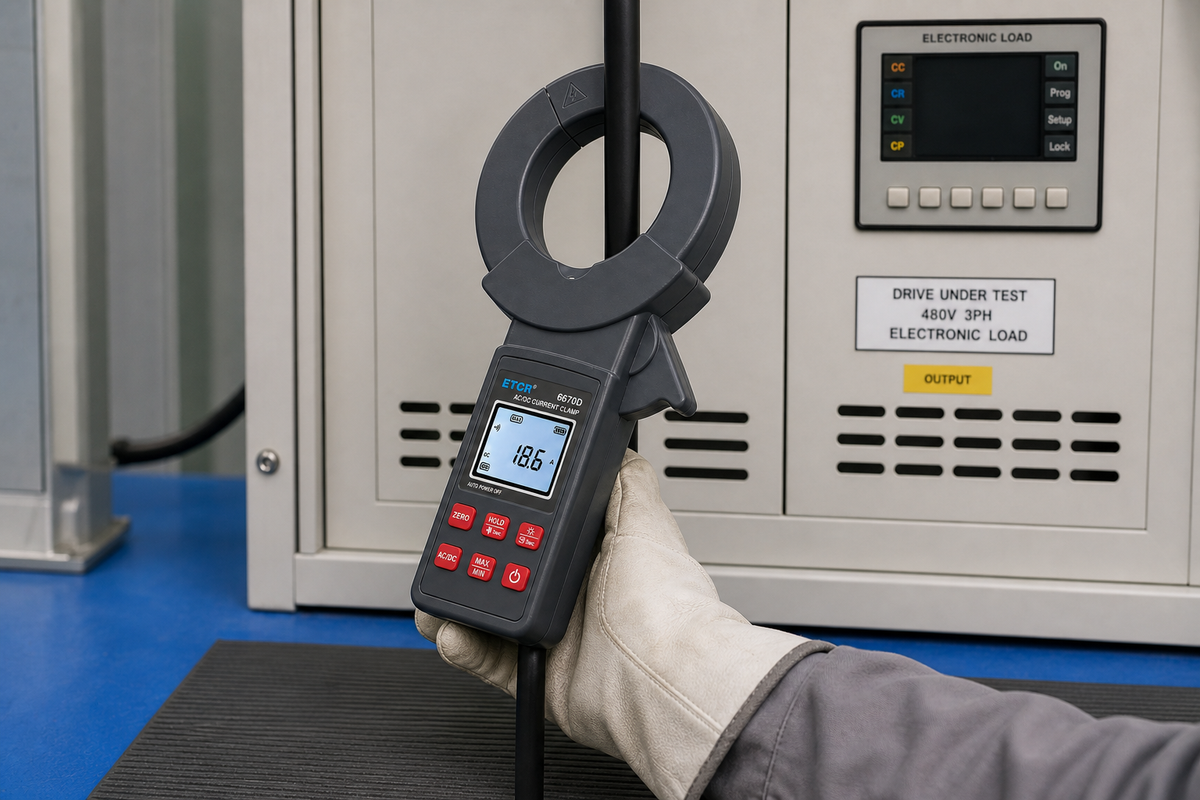

When Do You Need a True RMS Clamp Meter?

Quick answer: You need a True RMS clamp meter when the AC current waveform may be distorted rather than a clean sine wave and the meter's range, bandwidth, and crest-factor limits fit that waveform. Electronic controls, variable-speed drives, switching power supplies, LED drivers, and similar non-linear loads can create this need. True RMS does not automatically provide inrush capture, VFD output filtering, harmonic analysis, DC current, or universal accuracy.

The label matters because two meters can show different AC current on the same distorted waveform. An average-responding meter estimates RMS under a sine-wave assumption. A True RMS instrument calculates an effective value from sampled waveform information within its stated limits. On a clean sine wave, both methods may agree closely. On a non-sinusoidal wave, the average-responding estimate can be misleading.

What RMS Means in Electrical Measurement

RMS stands for root mean square. For current or voltage, it expresses the effective value of an AC waveform in terms of its heating effect. This makes RMS useful when comparing an AC current with equipment ratings, conductor loading, fuses, breakers, and thermal effects that are stated in RMS terms.

RMS is not the same as average, peak, peak-to-peak, or instantaneous value. A sine wave has a predictable relationship between its peak and RMS values. A distorted waveform may have narrow peaks, flat sections, or pulses that break that simple relationship.

Average-Responding vs True RMS Clamp Meters

Average-responding instruments

An average-responding AC meter rectifies and averages the waveform, then applies a scale factor based on a pure sine wave. That method is efficient and can be accurate when the measured signal is close to the assumed sine shape. It does not directly calculate the RMS value of an arbitrary waveform.

True RMS instruments

A True RMS meter processes the input waveform to determine its root-mean-square value. It is designed to handle both sine waves and supported non-sinusoidal waves. The word supported is essential: the input must remain inside the meter's amplitude range, bandwidth, crest-factor capability, and other conditions.

True RMS is therefore a response specification, not a complete measurement-quality certificate. Two True RMS meters can still disagree because of different bandwidths, filters, sampling methods, conductor positions, calibration status, or overload behavior.

Linear and Non-Linear Loads Create Different Waveforms

A linear load draws current in a shape that follows the applied voltage relatively closely. Traditional resistive heating and some conventional motor conditions can be near-sinusoidal examples. An average-responding meter may be adequate when the waveform is known to be a clean sine wave and the rest of the specifications fit.

A non-linear load draws current unevenly during the AC cycle. Rectifiers, capacitors, switching power supplies, electronic lighting, computers, variable-speed controls, and other solid-state equipment can draw pulses or otherwise distort the current waveform. Harmonic components appear because the current is no longer a simple sine wave.

The Fluke True RMS fundamentals guide identifies variable-speed drives, electronic ballasts, computers, HVAC controls, and solid-state equipment as common contexts for non-sinusoidal measurements. The exact waveform still depends on the equipment and operating state.

When True RMS Is Justified

A True RMS clamp meter is the prudent choice when one or more of these conditions apply:

• The load contains switching electronics, rectifiers, inverters, drives, or electronically commutated controls.
• The waveform is unknown and the current reading will guide a loading or troubleshooting decision.
• The circuit supplies computers, LED drivers, electronic power supplies, or mixed modern loads.
• You need to compare measured current with an RMS equipment or protection rating.
• An average-responding tool and another instrument disagree on the same controlled measurement.
• The procedure or equipment documentation explicitly requires a True RMS instrument.

You may not need True RMS for every known clean sine-wave measurement. The decision should come from the expected waveform and uncertainty, not from treating one label as a universal upgrade.

What True RMS Does Not Solve

A True RMS response does not correct:

• a current above or below the useful measurement range;
• a frequency component outside the meter's bandwidth;
• a waveform with peaks beyond the stated crest-factor capability;
• an incompletely closed jaw or poor conductor placement;
• clamping around the wrong conductors;
• DC offset when the selected mode cannot measure it;
• an overloaded sensor or an unsuitable installation rating;
• missing calibration, damage, contamination, or an unstable zero.

It also does not identify which harmonic frequencies are present. A clamp may display effective current, but spectral diagnosis, phase relationships, detailed power, or transient analysis can require a power-quality analyzer, oscilloscope, or other instrument and a qualified procedure.

Bandwidth and Crest Factor Matter

Bandwidth describes the frequency range over which the meter provides its stated response. A distorted 50 or 60 Hz current includes harmonic content above the fundamental frequency. If significant components lie outside the instrument's supported bandwidth, the displayed RMS value may not represent the full waveform as intended.

Crest factor is the ratio of peak value to RMS value. A narrow pulsed current can have a much higher peak relative to its RMS value than a sine wave. A meter may be within its RMS range while waveform peaks exceed the allowed crest factor. Review both the crest-factor limit and how it changes with range.

A Low-Pass Filter Is a Separate Feature

Variable-frequency drives can produce a pulse-width-modulated output containing high-frequency switching components. A clamp meter designed for drive work may include a low-pass filter that suppresses selected high-frequency content so the displayed value corresponds to the intended motor-related measurement. True RMS alone does not guarantee that filter or its suitability.

Filter behavior, measurement location, drive output frequency, conductor arrangement, grounding, and the manufacturer procedure all matter. Do not assume that a general True RMS clamp can accurately measure every point on a VFD system. Follow the drive and instrument documentation, and use a power-quality or motor-drive specialist when the task exceeds a current check.

Inrush, Peak, and True RMS Are Different

Inrush current is a short-duration event when equipment starts or energizes. A normal display update or min/max function may miss its highest portion. A dedicated inrush mode uses a defined trigger and capture interval. True RMS describes how the instrument calculates effective AC value; it does not state how quickly the instrument captures a startup event.

Peak mode records a waveform peak under its own timing and bandwidth conditions. It is not interchangeable with RMS or inrush. If startup current is the decision, compare trigger level, capture time, maximum range, and the equipment starting sequence rather than choosing from the True RMS label alone.

Select a True RMS Clamp Meter as a Complete Measurement System

1. Identify the load type and whether its current is likely sinusoidal, distorted, pulsed, or unknown.
2. Confirm AC, DC, or AC/DC capability for the actual measurement point.
3. Estimate normal current, possible starting current, and the low-current resolution needed.
4. Check True RMS range, frequency bandwidth, crest factor, accuracy, and overload specifications.
5. Decide whether low-pass filtering, inrush capture, min/max, or logging is separately required.
6. Verify jaw size, conductor access, installation category, working voltage, and environmental conditions.
7. Use the same conductor position, operating state, mode, and time basis when comparing readings.
8. Record the meter, range, filter state, load state, and uncertainty context with the value.

The current Mcooh ETCR6670D product record lists AC/DC TRMS along with maximum, minimum, average, storage, and wireless functions. Treat those as model-specific claims and confirm the current manual, range details, bandwidth, crest factor, and ratings before matching it to a waveform.

Common True RMS Selection Mistakes

• Buying True RMS without checking whether the meter measures the required AC or DC current.
• Ignoring the lower range and resolution while focusing on maximum amperage.
• Assuming True RMS includes inrush capture or a VFD low-pass filter.
• Ignoring bandwidth and crest-factor limits on pulsed loads.
• Comparing filtered and unfiltered readings as though they measure the same signal.
• Using a stable display as proof that the waveform is within specification.
• Treating a True RMS clamp as a harmonics or power-quality analyzer.

Frequently Asked Questions

Is True RMS always more accurate?

It is the appropriate response for supported distorted AC waveforms. Overall accuracy still depends on range, bandwidth, crest factor, waveform, position, calibration, and conditions. On a clean sine wave, a suitable average-responding tool may agree closely.

Do I need True RMS for household circuits?

It depends on the load. Modern homes contain LED drivers, computers, chargers, variable-speed appliances, and other electronics that can draw non-sinusoidal current. Use True RMS when the waveform is distorted or unknown and the decision needs a reliable effective value.

Does True RMS measure harmonics?

It can include supported waveform components in the effective-value calculation, but it does not identify individual harmonic frequencies or their magnitudes. That requires suitable harmonic or power-quality analysis.

Is True RMS required for a VFD?

Drive-related current can be non-sinusoidal, so True RMS may be necessary. The output can also require a suitable low-pass filter, bandwidth, measurement location, and drive-specific procedure. Check both manuals.

Is inrush current the same as True RMS?

No. True RMS is a calculation of effective AC value. Inrush is a short startup event that needs an appropriate trigger, capture interval, and range.

Match the Response to the Waveform

Choose True RMS when the current waveform is non-sinusoidal or unknown, then verify the rest of the measurement system: AC/DC mode, range, resolution, bandwidth, crest factor, filtering, inrush capture, jaw access, ratings, and records. Compare suitable models in the Mcooh clamp meter collection, using current manuals rather than the True RMS label alone.
