Ferrous vs Non-Ferrous Coating Thickness Measurement
Quick answer: Ferrous and non-ferrous coating thickness measurement differ mainly because the gauge responds to the metal substrate beneath the coating. A magnetic or magnetic-induction method is commonly used for a suitable nonmagnetic coating over magnetic steel or iron. An eddy-current method is commonly used for a suitable nonconductive coating over conductive, nonmagnetic metal such as aluminum. A combination Fe/NFe gauge can support both, but the operator must still confirm the substrate, coating system, mode, reference checks, and measurement conditions.
The letters on a coating thickness gauge are easy to misread. “Fe” and “NFe” are not quality grades, coating names, or universal labels for every alloy. They are practical indicators of the sensing method and the base-metal behavior the instrument expects. Choosing from the paint name alone can produce a believable but invalid number.
Fe and NFe Describe the Substrate Response
For common handheld dry-film gauges, the sensor measures the distance between its probe and a compatible metal base. That distance is interpreted as coating thickness. In a typical Fe application, the base responds magnetically. In a typical NFe application, the base is electrically conductive but does not respond as a ferromagnetic substrate.
This substrate-first view is more reliable than saying “steel gauge” or “aluminum gauge” without qualification. Carbon steel is a common ferrous base, and aluminum is a common non-ferrous base, but real components can include stainless grades, cast alloys, copper, brass, zinc layers, plated systems, thin sheet, and mixed-metal assemblies. Their magnetic and electrical behavior, geometry, and layer structure must fit the selected method.
The coating must also be compatible. Magnetic-induction dry-film measurement usually expects a nonmagnetic layer over a magnetic base. Amplitude-sensitive eddy-current measurement usually expects a nonconductive layer over a conductive nonmagnetic base. Metallic coatings, magnetic coatings, duplex layers, and unusual combinations may require another method, a special probe, or a procedure designed for the system.
How Magnetic Induction Measures on Ferrous Metal
A magnetic-induction probe creates a magnetic field and senses how the field changes as the probe approaches the ferrous base. The coating separates the probe from that base, so the measured response can be converted to distance. The Helmut Fischer magnetic-induction overview explains the method and identifies substrate permeability, part shape, roughness, and operator placement as important influences.
Typical suitable systems include paint, lacquer, enamel, or plastic over compatible steel or iron. Some metallic layers over steel can also be measured by specific magnetic methods, but do not assume a general paint gauge separates individual layers. A conventional reading may represent the total measurable distance between the probe and the ferrous response.
Steel properties matter. Magnetic permeability can vary with grade, heat treatment, processing, and part condition. If a gauge is adjusted on one flat steel plate and then used on a different alloy, thin stamping, small fastener, or curved pipe, its response may shift. The best reference is an uncoated sample representative of the actual part whenever the project procedure permits one.
How Eddy Current Measures on Non-Ferrous Metal
An eddy-current probe uses an alternating electromagnetic field to induce circulating currents in a conductive base. The instrument senses the resulting field response, which changes with the distance between the probe and substrate. For a common NFe coating application, that distance is a nonconductive coating over aluminum or another suitable conductive, nonmagnetic metal.
Electrical conductivity is not identical across aluminum alloys, copper alloys, and other metals. Substrate thickness, nearby edges, curvature, and the presence of another conductive layer can alter the response. An eddy-current gauge adjusted on a smooth aluminum zero plate should not automatically be assumed accurate on every non-ferrous component.
“Non-ferrous” also does not mean “nonmetal.” Plastic, fiberglass, wood, concrete, and carbon-fiber structures are not ordinary NFe bases for this method. A normal dual-mode Fe/NFe paint gauge requires a compatible metal substrate. If the sensor shows no valid substrate or returns an unexpected mode, investigate the construction instead of forcing a reading.
Ferrous vs Non-Ferrous Coating Measurement at a Glance
| Decision point | Ferrous / Fe measurement | Non-ferrous / NFe measurement |
|---|---|---|
| Common method | Magnetic pull-off, magnetic, or magnetic induction, depending on gauge type | Eddy current for common electronic dry-film gauges |
| Typical base | Compatible magnetic steel or iron | Compatible conductive nonmagnetic metal, often aluminum |
| Typical coating | Nonmagnetic coating | Nonconductive coating |
| Key substrate property | Magnetic response or permeability | Electrical conductivity without a conflicting magnetic response |
| Representative zero base | Uncoated ferrous part or suitable steel reference | Uncoated non-ferrous part or suitable aluminum reference |
| Frequent mistake | Assuming every steel or stainless part responds like the reference plate | Assuming every non-ferrous or nonmetal part is suitable for eddy current |
The table above is a selection guide, not a substitute for the exact gauge manual or the coating specification.

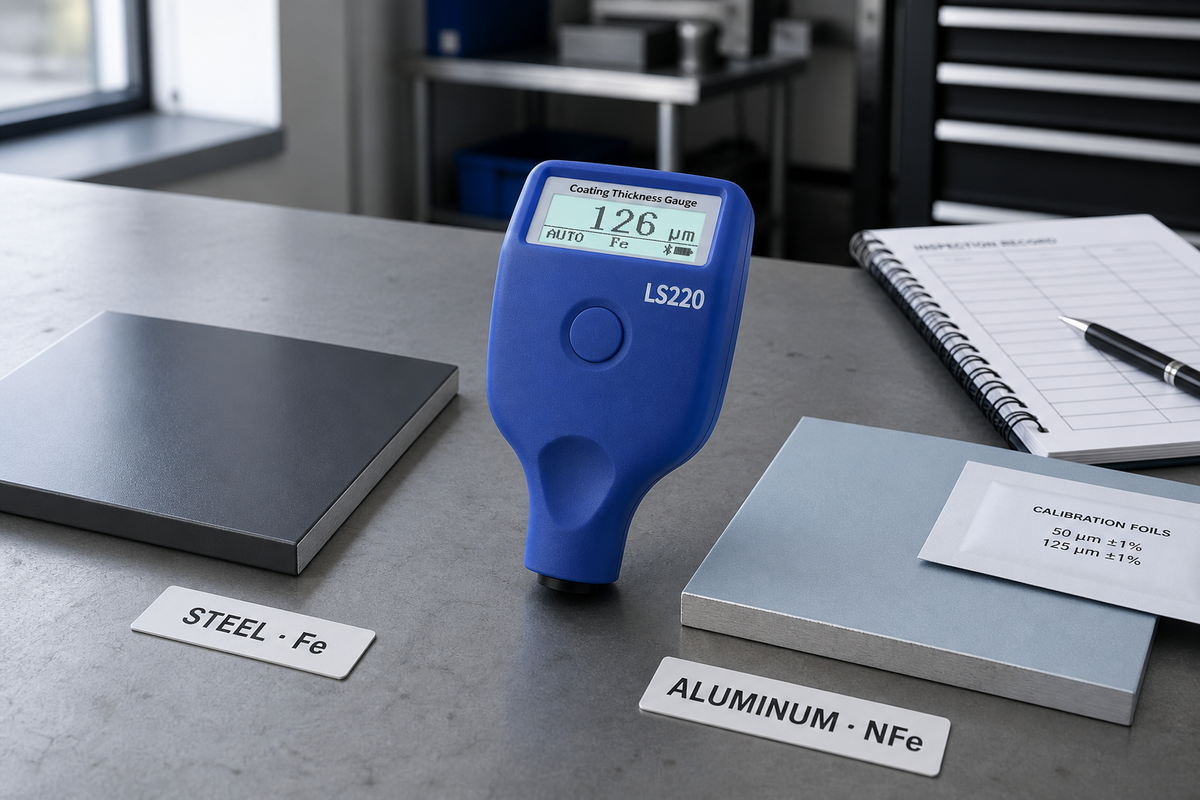

What a Combination Fe/NFe Gauge Does
A combination gauge places both sensing capabilities in one instrument or probe system. In automatic mode, many models attempt to recognize the substrate and select Fe or NFe measurement. That is convenient for automotive panels, fabrication shops, incoming inspection, or mixed steel and aluminum assemblies.
Automatic recognition should still be verified. Test the instrument on suitable bare Fe and NFe references, confirm the displayed mode, and check with appropriate thickness standards or shims. If the gauge repeatedly changes modes, gives unstable zero readings, or disagrees with known construction, do not accept the auto-selected value without investigation.
Some instruments let the operator lock a mode. This can prevent unwanted switching, but a mode lock does not make an incompatible substrate measurable. Use it only when the material is known and the manufacturer describes that application.
Stainless Steel, Zinc, and Duplex Systems Need Care
Stainless steel is a useful example of why metal names are not enough. Some grades are magnetic, some are generally nonmagnetic, and processing can change the response. Partially magnetic or inconsistent material may confuse a conventional auto-select function. Verify the exact grade or response and use a method designed for the application.
Galvanized and duplex systems can contain a zinc layer plus paint over a steel base. A conventional magnetic reading may report a combined distance rather than separate paint and zinc thicknesses. A specialized duplex method may use more than one sensing principle to resolve layers, but that capability is model-specific. Do not subtract readings or report individual layers unless the method and procedure support it.
Metallic paint pigments do not by themselves decide whether the base is Fe or NFe. Conversely, a conductive or magnetic coating can affect a method that assumes a nonconductive or nonmagnetic layer. When the layer stack is uncertain, identify it through drawings, material records, process information, or an appropriate specialist method.
Use a Substrate-First Measurement Workflow
- Define the coating system. Identify the base metal, coating materials, expected thickness range, cure state, and governing specification.
- Confirm the substrate response. Use drawings, material records, known samples, or approved checks rather than relying only on appearance.
- Select the method and probe. Choose magnetic induction for a compatible Fe system or eddy current for a compatible NFe system. Use specialized equipment for exceptions.
- Inspect the probe and references. Clean the probe face, bare substrate sample, zero plates, coated standards, and shims.
- Verify the gauge. Check known values appropriate to the selected mode and expected range.
- Adjust for the part where permitted. Account for its alloy response, shape, thickness, and roughness using the manufacturer and project procedure.
- Take repeated measurements. Place the probe perpendicular to the surface, lift between readings, and sample enough locations to represent variation.
- Reverify after a change. Recheck when moving between Fe and NFe, changing parts or probes, or seeing drift.
- Report the method. Record substrate, gauge, probe, mode, references, adjustment, readings, units, and exceptions.
ASTM D7091 describes magnetic and eddy-current dry-film measurement and emphasizes manufacturer instructions, verification, adjustment, and proper measurement technique. It also notes that a single point may not represent coating variation across a larger area. Apply the current edition required by the contract or inspection program.
Control Geometry, Roughness, and Probe Placement
The same coating can produce different readings when the reference and part do not present the same electromagnetic conditions. Curvature changes the probe field. An edge or small part may not provide enough surrounding base material. A thin substrate can respond differently from a thick reference. Roughness changes where the probe sits relative to peaks and valleys.
Place the probe fully and perpendicular to the surface. Avoid rocking or sliding it. Stay far enough from edges, holes, welds, and tight curves unless the probe specification and adjustment cover those locations. Use a fixture or smaller probe where repeatable placement is difficult. On rough surfaces, use the sampling and base-metal correction method required by the applicable specification rather than choosing one convenient peak or valley.
Temperature, probe wear, contamination, and soft or tacky coatings can also influence the result. Do not press a probe into a coating that deforms under its load and then treat the indentation as dry-film thickness. Confirm the cure state and allowed measurement method.
Interpret Readings Against the Specification
A gauge does not create the acceptance limit. The project specification, coating manufacturer data, contract, or inspection standard defines the target, minimum, maximum, sampling frequency, and averaging rule. Report the individual readings and required statistical result in the specified units.
Do not compare Fe and NFe readings without context when they come from different substrates, reference adjustments, surface profiles, or sensor modes. A difference can reflect coating application, but it can also reflect the measurement system. Verify both modes and representative bases before concluding that one panel or batch is out of specification.
Fe vs NFe Coating Gauge FAQ
Does Fe mean the coating contains iron?
No. On a common coating gauge, Fe usually identifies the method for a compatible ferrous or magnetic substrate beneath the coating. The coating is normally expected to be nonmagnetic for that application.
Does NFe mean the gauge works on plastic?
No. NFe commonly refers to a conductive nonmagnetic metal substrate used with an eddy-current method. Plastic and other nonmetal materials need a different coating-thickness method.
Can one gauge measure paint on both steel and aluminum?
Yes, if it has compatible combination Fe/NFe capabilities and its range, probes, coating assumptions, and reference procedures fit both applications. Verify each mode separately and record which one produced each reading.
Which mode should I use on stainless steel?
It depends on the grade and magnetic response, not only the stainless label. Some stainless steels are magnetic, others are generally nonmagnetic, and some can be partially magnetic. Confirm the material and the gauge manufacturer's recommended method.
Why does the reading change near an edge?
The probe's magnetic or electromagnetic field can extend beyond the available substrate near an edge, on a small part, or around a tight curve. Use the specified edge clearance, a suitable probe, and a representative adjustment rather than accepting the changed value automatically.
Select the Probe for the Real Layer Stack
