How to Verify and Adjust a Coating Thickness Gauge

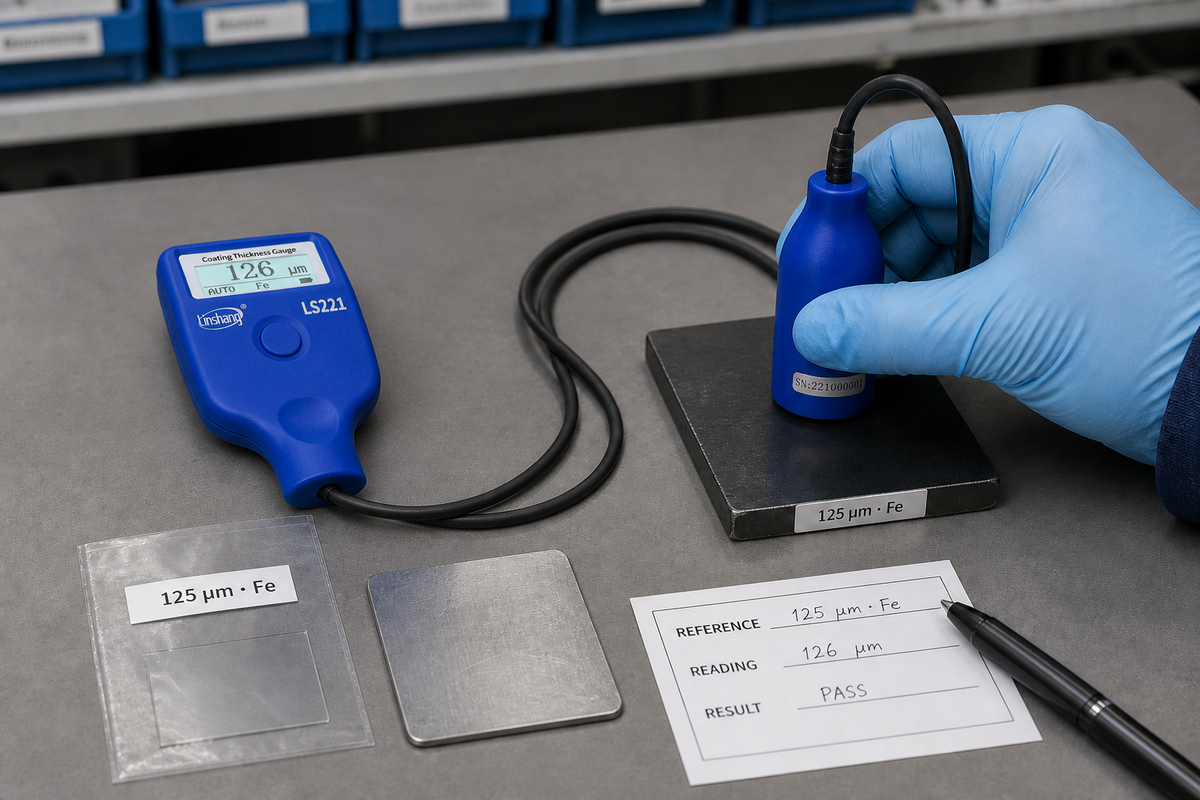

Quick answer: To verify a coating thickness gauge, inspect the instrument and probe, confirm the correct Fe or NFe mode, and take repeated readings on suitable known references that cover the expected working range. Compare the results with the acceptance rule in the gauge manual or quality procedure, including reference uncertainty or tolerance where required. If the gauge passes but shows application-specific bias on the actual substrate, perform only the zero, one-point, or two-point adjustment allowed by the manufacturer. Reverify after adjustment. If it still fails, remove it from measurement service and investigate rather than forcing the display to match.
People often say they “calibrated” a paint or dry-film thickness gauge when they pressed zero on a plate. That shortcut can obscure what was actually done. Calibration, verification, and adjustment answer different questions: Is the instrument's performance traceably established? Is it operating within the expected limits now? Has its response been aligned to the specific part and thickness range?
Calibration, Verification, and Adjustment Are Different
ASTM D7091-22 identifies calibration, verification, and adjustment as separate operational steps for magnetic and eddy-current dry-film gauges. The standard supplements the manufacturer's operating instructions rather than replacing them. Use the current edition and terminology required by your contract or quality system.
| Activity | Purpose | Typical performer | Typical evidence |
|---|---|---|---|
| Calibration | Controlled, documented comparison with traceable standards under defined conditions | Manufacturer, authorized service, or qualified calibration laboratory | Calibration results or certificate, procedure, standards, conditions, and uncertainty as applicable |
| Verification | Check that the gauge is operating within the required limits at the time and range of use | Instrument user or inspector | Reference values, repeated readings, acceptance rule, result, date, and operator |
| Adjustment | Remove bias for a specific substrate, geometry, or portion of the range | Instrument user where the gauge and procedure permit | Adjustment method, references, stored setup, and successful post-adjustment verification |
The DeFelsko calibration terminology guide similarly describes calibration as a controlled documented process, verification as a user check on known standards, and adjustment as alignment to a known sample. A field check can be important and traceable without being mislabeled as a full calibration.
Choose the Right Reference for the Check
Your reference should challenge the same method and approximate range used on the job. A magnetic Fe gauge needs suitable ferrous references; an eddy-current NFe gauge needs suitable conductive nonferrous references. Verify both modes separately on a combination instrument.
- Certified coated metal standards: durable plates with assigned coating thickness values. They are useful for verification when their substrate, range, uncertainty, and traceability meet the procedure.
- Plastic shims or foils: known flexible thicknesses placed over a compatible bare substrate. They can represent the application geometry better, but shim tolerance and seating affect the comparison.
- Bare substrate or zero plate: used to evaluate zero response or create an allowed application adjustment. A smooth supplied plate may not represent the production part.
- Known coated part: may be useful if its value and acceptability are established by an agreed method. It should be stable, identified, and protected from wear or contamination.
Reference condition matters. Keep plates, shims, the production sample, and probe face clean. Check shims for folds, scratches, dirt, and curling. Do not stack foils unless the procedure allows it, and do not assume their printed nominal value has zero uncertainty.
Plan the Verification Range and Acceptance Rule
Choose references near or spanning the coating thicknesses expected on the job. A check only at zero may show that the gauge recognizes bare metal but not that it measures correctly near the target dry-film thickness. For a wide working range, more than one nonzero reference may be appropriate.
Define acceptance before reading the reference. The rule may need to combine the gauge accuracy statement with the reference tolerance or uncertainty and the quality procedure's decision method. Do not invent a universal percentage. Record the units and make sure the gauge has not silently switched between micrometers and mils.
Use repeated placements rather than one favorable number. Lift the probe completely, replace it perpendicular to the surface, and collect the number of readings specified by the procedure. Repetition helps expose tilt, a damaged probe face, an unstable substrate response, or inconsistent shim seating.
Verify the Gauge Before Measurement
- Review calibration status. Confirm the instrument ID, probe, latest calibration evidence, and whether the established interval or quality-system requirement is current.
- Inspect the equipment. Check the display, batteries, connector, cable, probe face, and reference condition. Clean them as allowed.
- Confirm configuration. Select the correct probe, Fe or NFe mode, units, and stored setup. Disable an unrelated adjustment if the manual requires a fresh setup.
- Check a compatible bare reference. Take several readings without changing the display yet. Determine whether the average is within the allowed zero response.
- Check known thickness references. Measure one or more coated standards or shims covering the expected range.
- Compare with the defined limits. Include the relevant reference and gauge tolerances or uncertainty.
- Record pass or fail. Identify every reference, reading set, mode, result, time, and operator.
Repeat verification during the work at the frequency defined by the inspection plan and after events that could affect performance. Perform an end-of-series check so the measurement interval is bounded by acceptable evidence.
Decide What to Do After a Pass or Failure
If the gauge passes on independent standards and no application adjustment is required, begin work and retain the verification record. If it passes on standards but shows consistent bias on a representative production substrate, investigate geometry, composition, roughness, substrate thickness, edge effect, and the selected mode. An allowed application adjustment may be appropriate.
If the gauge fails, repeat the check carefully with clean references and correct settings. Confirm the reference value and units, inspect the probe, restart or reload the intended setup, and try another appropriate standard if available. Do not adjust the gauge merely to hide damaged equipment, nonlinear error, or a reference outside the instrument's usable range.
When failure remains, remove the gauge and affected probe from measurement service. Follow the quality procedure for repair, formal calibration, or replacement. Measurements collected since the last successful verification may need review, containment, or reinspection; the responsible quality authority should decide their disposition.
Use Zero, One-Point, or Two-Point Adjustment Carefully
An adjustment changes the gauge response for a defined application. The exact control names and sequence vary. Some instruments store several setups; others apply one active offset. Mechanical pull-off gauges and electronic gauges may require different treatment, so follow the exact manual.
Zero adjustment
Zeroing is the simplest one-point adjustment. The user takes readings on a clean, uncoated substrate representative of the part and aligns the response to zero. It can compensate for some effects of alloy, shape, and substrate mass. It does not prove accuracy across the entire working range, so check a known nonzero thickness afterward.
One-point adjustment at a known thickness
A one-point adjustment aligns the gauge near one known coating or shim value. Choose a point representative of the target range and use the actual bare substrate where possible. Take several readings and follow the model procedure. Then verify with an independent reference rather than using the same single reading as both adjustment and proof.
Two-point adjustment
A two-point adjustment aligns the response at two known values, usually on opposite sides of the expected coating thickness. It can be useful where a one-point setup does not control bias across the required range. Both points must be valid for the gauge, probe, substrate, and procedure. Reverify at an intermediate or otherwise independent value after the adjustment.
Rough, Curved, Thin, and Small Parts Need Representative Setup
Factory characterization commonly uses controlled smooth and flat standards. Production parts may not behave the same way. Curvature changes the sensor field, an edge or small area limits the available substrate, and thin metal may respond differently from a thick plate. Use a representative uncoated part, a suitable fixture or probe, and the manufacturer-recommended adjustment.
Blast-cleaned steel adds surface profile. A simple zero on a rough surface may not report thickness above the profile peaks as required by some specifications. The DeFelsko calibration, verification, and adjustment guide describes application-specific approaches such as shims over an uncoated rough substrate for some electronic gauges and base-metal readings for some mechanical gauges. Apply the procedure required by the current project rather than treating either method as universal.
An adjustment represents only the substrate, geometry, mass, roughness, and region used to make it. If those conditions change across the job, a new setup or verification may be needed. Label stored adjustments clearly so an operator does not apply a curved NFe setup to a flat Fe part.
Check Fe and NFe Modes Separately
A dual-mode gauge may automatically detect steel or a conductive nonferrous base, but each mode uses different reference substrates and sensing behavior. Verify Fe on suitable steel references and NFe on suitable aluminum or other specified nonferrous references. Confirm the mode indicator during every check.
Unexpected switching can signal mixed construction, partial magnetism, unusual alloy response, a thin substrate, edge influence, or a setup problem. Do not force the preferred mode until the base material and instrument instructions support it. Specialized plated or duplex layer systems may require a different probe or method.
Set Verification Frequency from Risk and Procedure
No single schedule suits every instrument and quality system. The verification frequency may depend on the governing standard, contract, consequence of an incorrect decision, frequency of use, abrasive surfaces, probe wear, handling, environment, and historical stability. Typical control points include before use, during a shift or lot, after a setup or substrate change, after a drop or suspected damage, when readings become questionable, and after the measurement series.
Formal calibration intervals are also established by the organization, manufacturer guidance, contractual requirements, and performance history. A successful field verification does not automatically extend an expired required calibration, and a recent certificate does not eliminate before-use checks.
Keep a Traceable Gauge Check Record
Record the gauge, serial number, probe, mode, units, calibration status, reference IDs and assigned values, reference tolerances or uncertainty where required, individual or averaged readings, acceptance rule, adjustment method, post-adjustment result, operator, date, time, and environmental or surface conditions relevant to the job.
Link the record to the production measurements it controls. If an end check fails, this connection helps identify the affected parts or inspection interval. Preserve failed results and corrective actions rather than overwriting them with a later pass.
Coating Thickness Gauge Verification FAQ
Is pressing zero the same as calibrating the gauge?
Usually not. Pressing zero is generally a user adjustment to a specific uncoated substrate. Formal calibration is a controlled documented process using suitable traceable standards and defined conditions.
Can I verify the gauge with only a zero plate?
A zero plate checks bare-substrate response but may not verify performance near the expected coating thickness. Use suitable known nonzero references covering the working range as required by the manual and quality procedure.
Are plastic shims accurate enough?
They can be useful for field checks and application adjustments, but the shim's tolerance, condition, seating, substrate, and gauge performance all matter. Certified coated plates may offer a different level of control. Choose the reference required by your measurement objective.
Should I adjust the gauge whenever a reference reading is different?
No. First decide whether the result is actually outside the applicable acceptance limit. Check settings, units, references, cleanliness, technique, and damage. Adjust only when permitted and when the difference represents application-specific bias rather than equipment failure.
What if the gauge passes on the supplied plate but not on the part?
The part's alloy, curvature, roughness, thickness, size, edge distance, or layer system may differ from the plate. Use a representative uncoated sample and the appropriate application adjustment or probe, then verify again. Escalate if the setup cannot be validated.
