Thickness Gauge Types: Coating, Paint, and Ultrasonic Measurement
Quick answer: Choose a thickness gauge by identifying what must be measured. A coating or paint gauge measures the distance from its probe to a compatible metal substrate, so it is used for paint, plating, or powder coating on steel or nonferrous metal. An ultrasonic gauge measures material thickness from pulse travel time, often from one accessible side of a pipe, tank, sheet, or part. These tools are not interchangeable.
The phrase thickness gauge can refer to instruments that answer very different questions. A car paint meter may measure the total coating stack over a metal panel. An ultrasonic wall-thickness gauge may measure the remaining steel beneath a surface. A mechanical micrometer may measure the total dimension of a sample between two contact faces. The right category starts with the layer, material, and access—not the display resolution.
Start With the Layer or Wall You Need to Measure
Write the measurement question in one sentence before comparing products:
- How thick is the dry coating on this steel or aluminum surface?
- Does automotive paint thickness vary across these metal panels?
- What is the remaining wall thickness of this pipe when only the outside is accessible?
- How thick is this plastic, glass, ceramic, or metal part?
- Do I need the total thickness or an individual layer?
Those questions lead to different sensors. The Evident overview of thickness gauges separates ultrasonic, Hall-effect, and coating/paint gauges because material properties and access determine which physical method works.

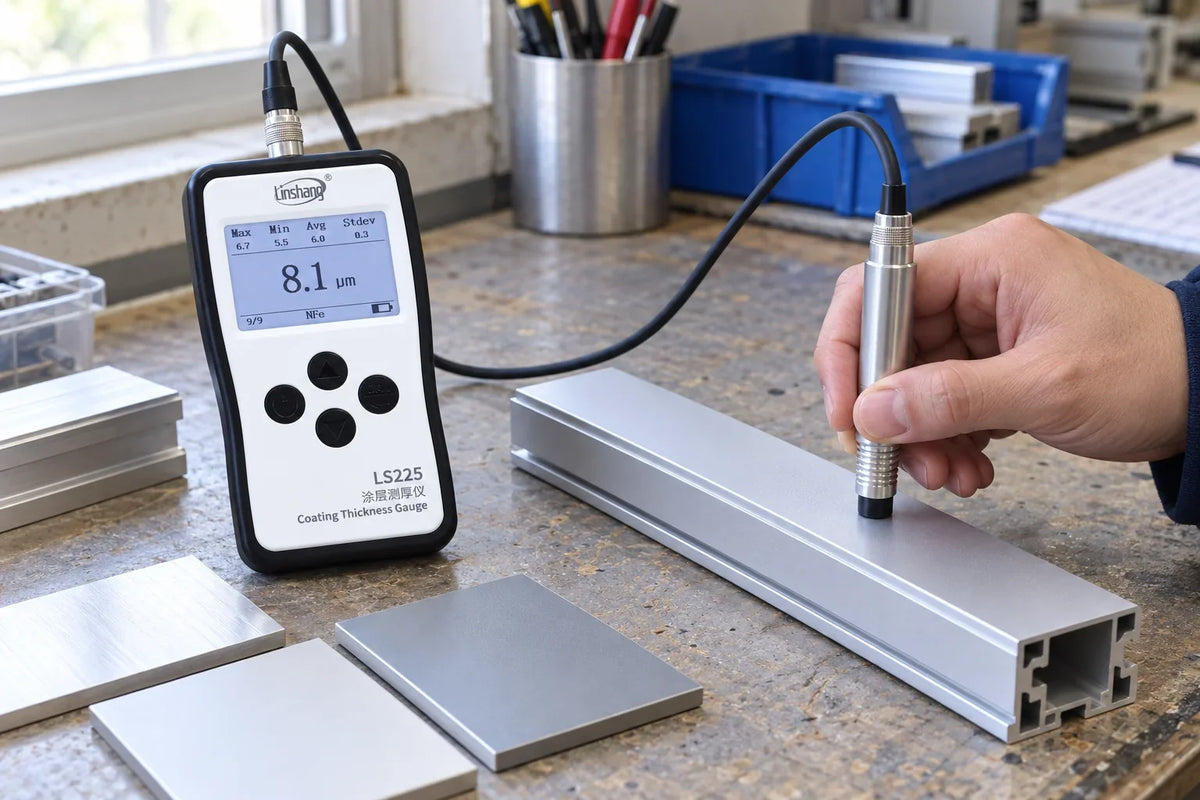

Coating and Paint Thickness Gauges
A common electronic coating gauge measures the gap between its probe and a metal substrate. Paint, powder coating, plating, enamel, or another compatible layer creates that gap. The displayed value normally represents the total measurable coating stack between probe and substrate; it does not automatically separate primer, color, clear coat, filler, and other individual layers.
These gauges are widely used for dry-film quality control, coating application, corrosion-protection work, automotive inspection, refinishing, detailing, and incoming inspection. They usually require direct probe contact with the surface. Soft, tacky, dirty, highly curved, rough, thin, or edge-adjacent areas may need a different setup or interpretation.
A coating gauge must match both coating and substrate. The two main electronic methods for metal substrates are magnetic and eddy current. A dual Fe/NFe instrument can switch methods when it correctly recognizes the substrate, but combination capability does not make it suitable for every metal or coating.
Ferrous and Nonferrous Coating Measurement
Magnetic methods on ferrous metal
Magnetic pull-off or electronic magnetic-induction gauges measure a nonmagnetic coating over a magnetic substrate such as appropriate steel or iron. The instrument responds to the distance created by the coating. Substrate magnetism, alloy, shape, roughness, edge distance, and thickness can affect the result.
Eddy-current methods on nonferrous metal
Eddy-current gauges measure nonconductive coatings over conductive nonferrous metals such as suitable aluminum. They generate an alternating field that induces eddy currents in the substrate. The response changes with the probe-to-metal distance. Conductive coatings, unusual alloys, curvature, edge effects, and thin substrates may require a different method or adjustment.
The DeFelsko coating measurement guide describes magnetic methods for nonmagnetic coatings on ferrous substrates and eddy current for nonconductive coatings on nonferrous substrates. It also identifies roughness, curvature, metal type, substrate thickness, and distance from an edge as measurement influences.
Automotive Paint Thickness Gauges
An automotive paint meter is usually a coating thickness gauge adapted to vehicle inspection. On compatible steel and aluminum panels, repeated readings can help map variation across a vehicle. The pattern may support a closer review of refinishing, filler, localized repair, sanding history, or panel differences, but one number does not prove a repair or accident.
Vehicle materials are not uniform. Exterior panels may include steel, galvanized steel, aluminum, plastic, fiberglass, composite, glass, or structures that a normal Fe/NFe paint gauge cannot measure. A display code or no-reading condition may describe substrate incompatibility rather than coating thickness.
For automotive inspection, type selection is only the first step; a complete workflow also needs a defined panel map, repeated readings, and cautious interpretation. Key selection questions include substrate recognition, Fe/NFe capability, probe geometry, range, reference pieces, temperature limits, and record export.
Ultrasonic Material Thickness Gauges
An ultrasonic thickness gauge sends a high-frequency sound pulse into the test piece and times an echo from the far boundary. With the sound velocity for the material and the measured round-trip time, the gauge calculates thickness. This pulse-echo approach can often measure from one side, which is valuable for pipes, tanks, pressure-vessel walls, sheets, structural parts, glass, plastics, and other sound-transmitting materials.
Ultrasonic measurement usually requires a couplant between the probe and the test surface. The material must transmit a usable echo, and the instrument must be calibrated for the material sound velocity and the probe/setup. Roughness, corrosion scale, curvature, grain structure, attenuation, temperature, coating, probe frequency, and alignment can affect the result.
The international scope of ISO 16809:2025 covers thickness determination of metallic and nonmetallic materials from ultrasonic pulse time of flight. A gauge reading alone does not locate every flaw, characterize corrosion morphology, or establish fitness for service.
The current Mcooh LS211 ultrasonic thickness gauge record lists probe options and material-thickness modes, including a through-coating mode. Treat those capabilities as model-specific and confirm the current manual, probe, calibration, couplant, range, and material setup.
Other Thickness Measurement Methods
A mechanical micrometer or caliper measures the distance between contact faces and normally needs access to opposite sides or an exposed edge. It may be the simplest reference for total sample thickness when geometry allows. It does not isolate a coating layer without before-and-after data.
A Hall-effect material-thickness system can use a magnetic probe and a target ball or disk on the opposite side of a nonmagnetic sample. This can suit thin plastic, glass, rubber, or container walls when both sides are accessible. It is a different method from the Hall-effect sensing used in some ferrous coating or electrical-current instruments.
Wet-film combs, destructive cross-section methods, optical systems, X-ray fluorescence, eddy-current conductivity instruments, and laboratory methods serve other layer and material questions. Do not choose a method solely because its result is expressed in micrometres or mils.
Thickness Gauge Types Compared
| Method | What it usually measures | Access | Main dependency |
|---|---|---|---|
| Magnetic coating gauge | Nonmagnetic coating on compatible ferrous metal | One coated surface | Substrate magnetic response and probe spacing |
| Eddy-current coating gauge | Nonconductive coating on compatible nonferrous metal | One coated surface | Substrate conductivity and probe spacing |
| Dual Fe/NFe paint gauge | Coating stack on compatible steel or nonferrous vehicle panels | One painted surface | Correct substrate identification and reference adjustment |
| Ultrasonic material gauge | Wall or total material thickness from echo time | Often one side | Sound velocity, probe, couplant, echo quality, and calibration |
| Mechanical micrometer | Total dimension between contact faces | Usually two sides or an edge | Contact force, geometry, alignment, and reference zero |
| Hall-effect material system | Nonmagnetic wall thickness using a target | Both sides for probe and target | Target geometry, probe relationship, and calibration |
Choose by Sample, Access, and Decision
- Define whether the target is a coating layer, coating stack, material wall, or total sample dimension.
- Identify the coating and substrate materials, including magnetic, conductive, nonconductive, layered, porous, or composite behavior.
- Confirm whether one side, two sides, an edge, or an uncoated reference area is accessible.
- Estimate thickness range, curvature, surface roughness, edge distance, temperature, and minimum measuring area.
- Choose the sensor and probe that match the physical method.
- Define the governing specification, tolerance, sampling pattern, and reporting requirement.
- Plan zero checks, verification, adjustment, calibration, reference standards, or known-thickness samples as the method requires.
Mcooh's thickness gauge collection contains coating/paint instruments and ultrasonic material-thickness gauges. Filter first by measurement method and sample, then compare range, probe, substrate, reference accessories, environmental limits, and data functions.
Accuracy Depends on More Than Display Resolution
A display that shows 0.1 micrometre or 0.001 millimetre increments does not guarantee that every measurement is accurate to that increment. Resolution is only the smallest displayed step. Accuracy and repeatability depend on the gauge, probe, range, substrate or material, reference condition, calibration, surface, geometry, temperature, and operator technique.
For coating gauges, repeated readings and a defined sampling plan matter because coatings vary across a surface. For ultrasonic gauges, the result is only as good as the material velocity, zero calibration, echo selection, coupling, and probe alignment. A stable number can still be wrong if the setup is wrong.
Verification, Adjustment, and Records
Calibration, verification, and adjustment are related but different. Calibration establishes the relationship between instrument response and traceable references, typically under controlled conditions. Verification checks performance against a known reference. Adjustment changes the instrument or reading setup to improve agreement for the application.
ASTM D7091 explicitly separates these terms for dry-film coating gauges and emphasizes proper use on ferrous and nonferrous substrates. Ultrasonic systems use their own velocity and zero procedures with known-thickness samples and the selected transducer.
Record the instrument, probe, mode, reference, adjustment, units, location, substrate or material, surface condition, temperature context, and repeated readings. Without that context, a thickness number is difficult to reproduce or compare.
Frequently Asked Questions
Can one thickness gauge measure paint and metal wall thickness?
Some platforms support multiple probes or modes, but ordinary coating and ultrasonic material gauges use different physics. Confirm the exact probe and method for each target rather than assuming one display supports both.
Can a car paint gauge measure plastic bumpers?
A typical magnetic/eddy-current Fe/NFe gauge requires a compatible metal substrate and normally cannot measure paint on plastic. A plastic panel requires another method specifically designed and validated for that material and coating combination.
Does an ultrasonic thickness gauge need access to both sides?
Pulse-echo thickness gauging often works from one side by timing the reflection from the far boundary. The material, geometry, surface, couplant, and echo quality must support the measurement.
Is a paint thickness reading the clear-coat thickness?
Usually not. A magnetic or eddy-current automotive gauge normally reports the total measurable coating stack between probe and metal substrate. It does not automatically isolate clear coat.
Are microns and mils different measurements?
They are different units for thickness. One mil is 0.001 inch, equal to 25.4 micrometres. Unit conversion does not change the measurement method or uncertainty.
Match the Gauge to the Physical Layer
Choose a coating or paint gauge for a compatible coating-over-metal question, an ultrasonic gauge for supported material wall thickness from echo time, and a mechanical or specialized method when access or materials demand it. Compare current product documentation in the Mcooh thickness gauge collection only after defining the layer, substrate, access, range, reference, and reporting goal.
