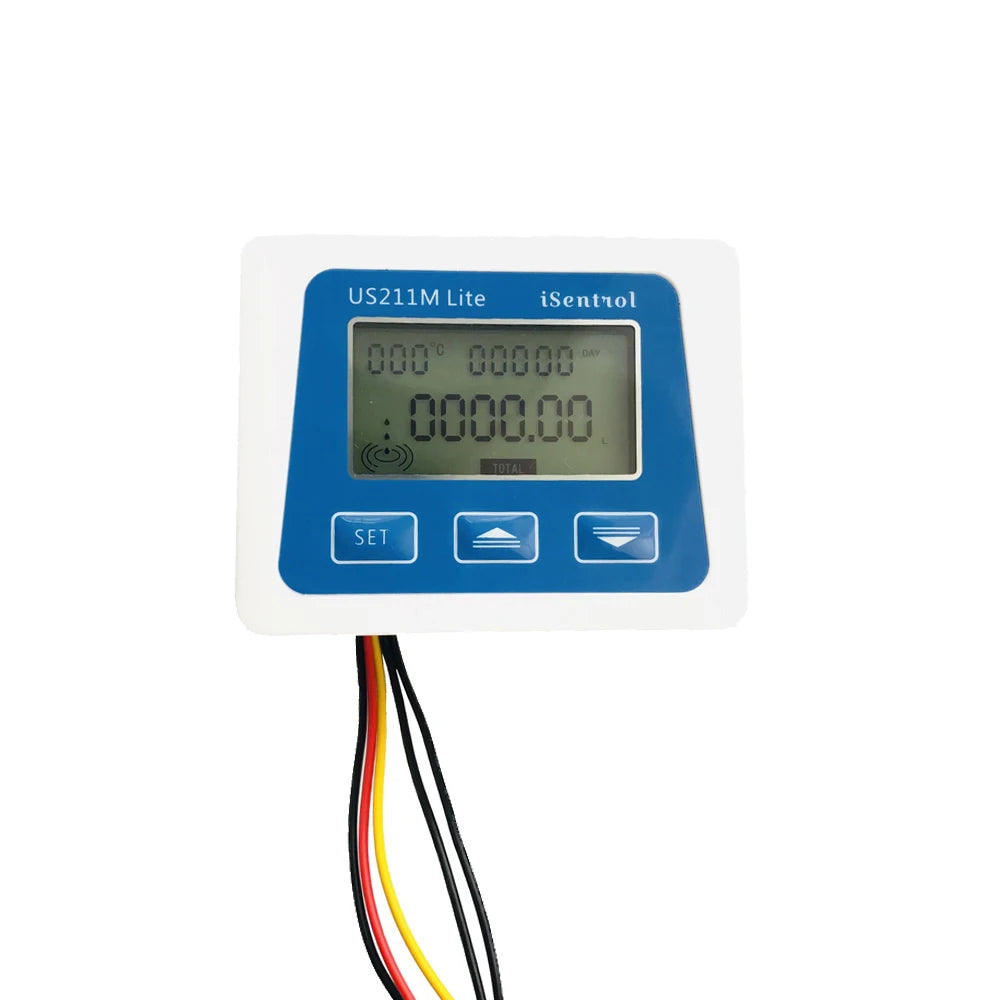

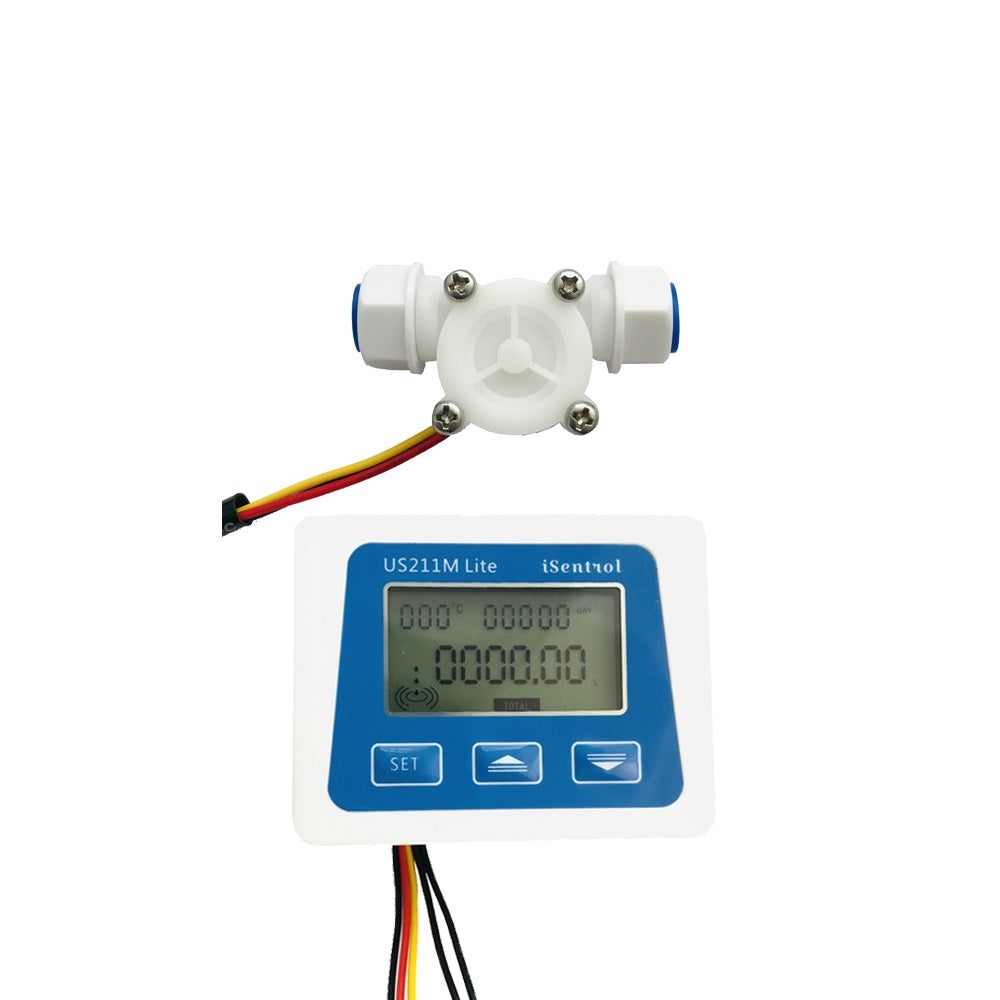

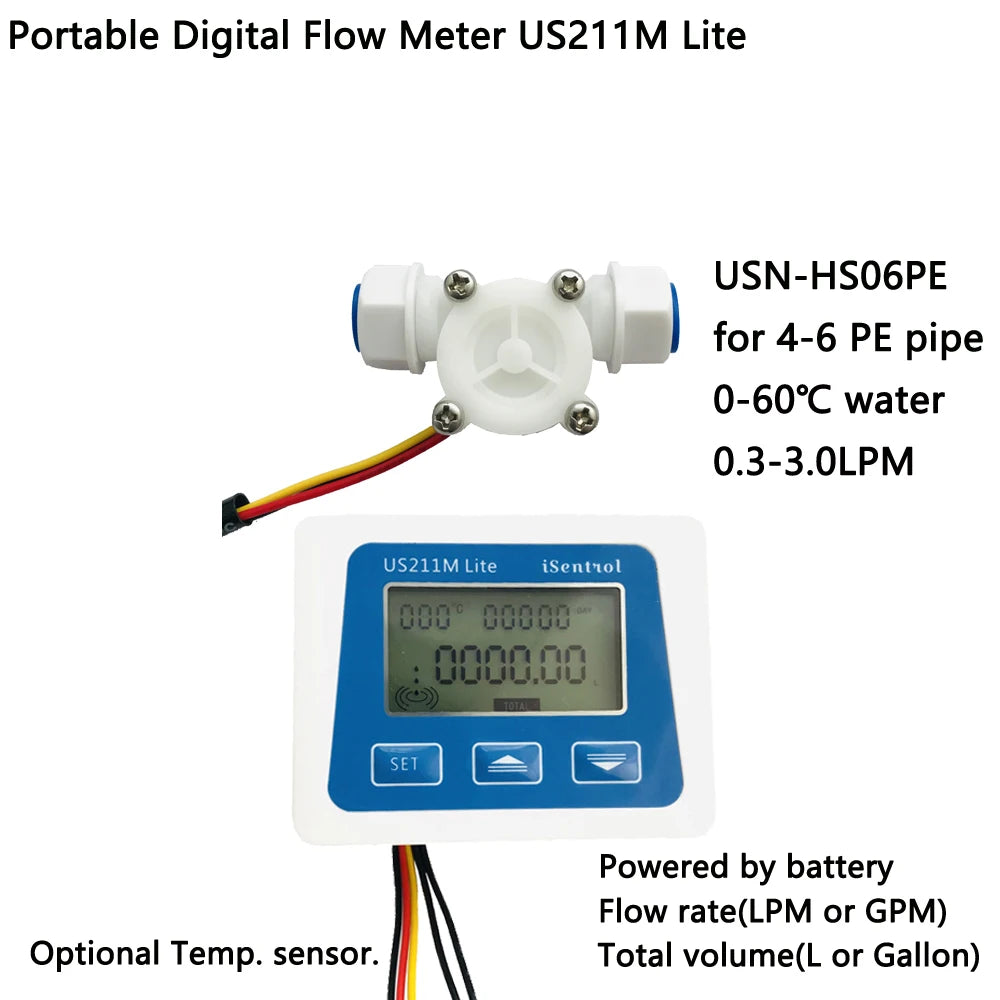

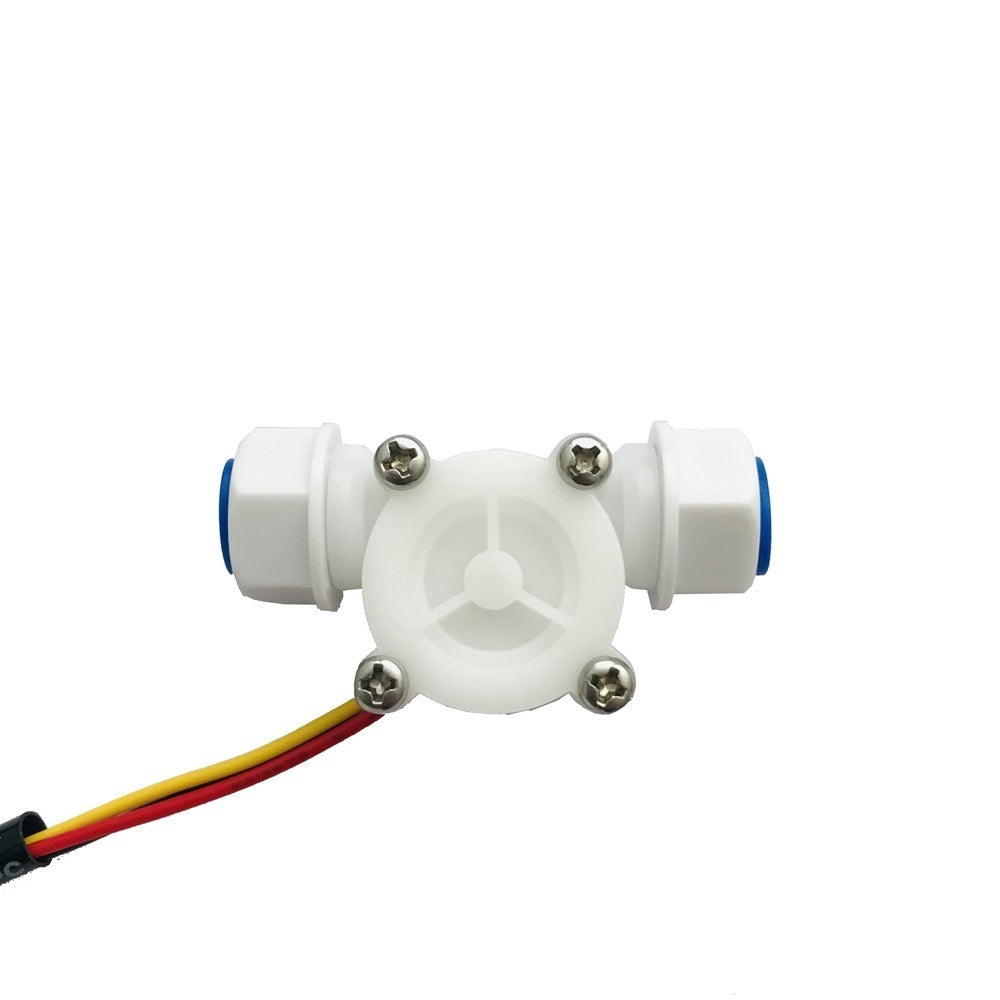

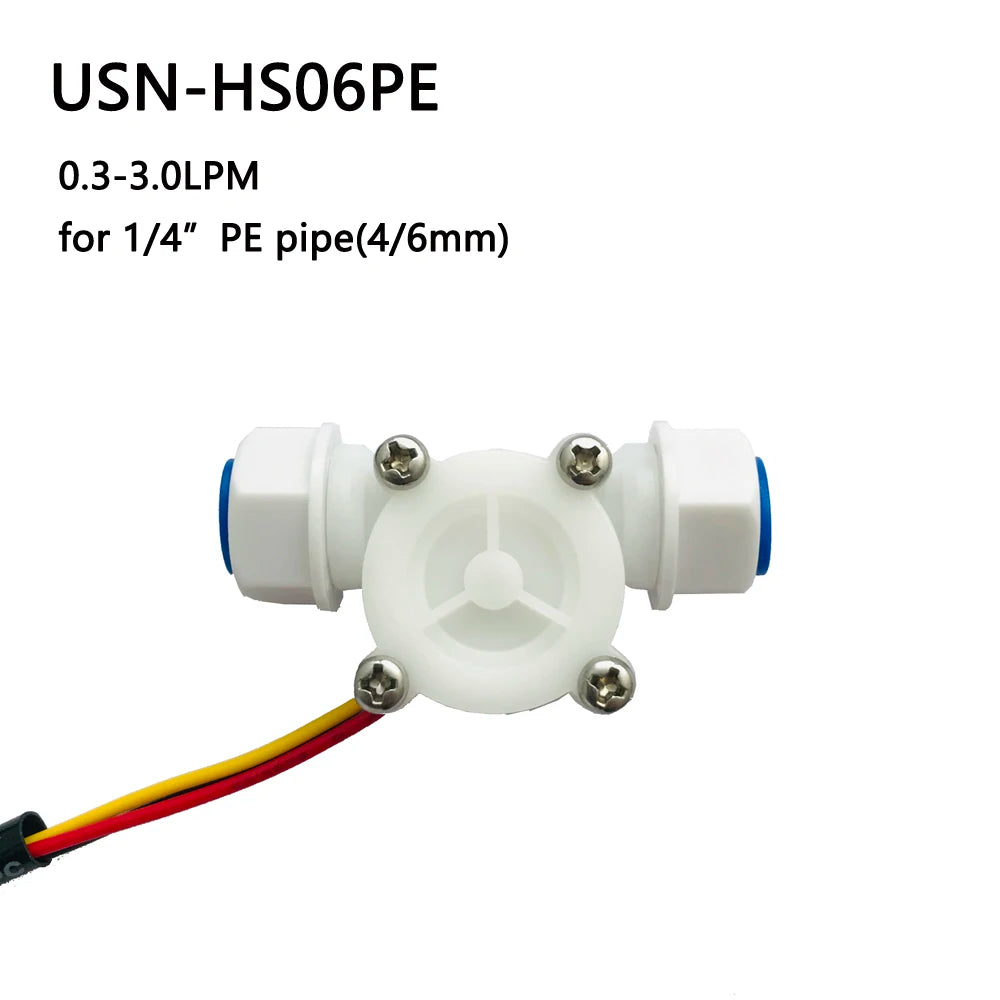

This low-flow water-meter configuration pairs a US211M Lite display unit with a USN-HS06PE Hall-effect flow sensor. The sensor covers 0.3–3.0 L/min and connects to 4/6 mm PE tubing. The display shows instantaneous flow rate and accumulated volume for water-flow monitoring.
Choose the meter-and-sensor set, the display unit, or the sensor according to the equipment required for your installation. Temperature display requires a compatible optional temperature sensor.
Order Options
| Shopify option | Supplied component |
|---|---|
| Meter Sensor | US211M Lite display unit and USN-HS06PE flow sensor |
| Meter Only | US211M Lite display unit |
| Sensor Only | USN-HS06PE flow sensor |
Flow Display and Sensor Data
| Item | Specification |
|---|---|
| Display model | US211M Lite |
| Flow sensor | USN-HS06PE |
| Flow range with this sensor | 0.3–3.0 L/min |
| Flow accuracy | ±5% |
| Fluid | Water |
| Sensor water-temperature range | 0–60 °C |
| Tube connection | 4/6 mm PE tubing |
| Operating pressure | 0.05–0.8 MPa |
| Sensor K value | 90 |
| Cable length | 35 cm |

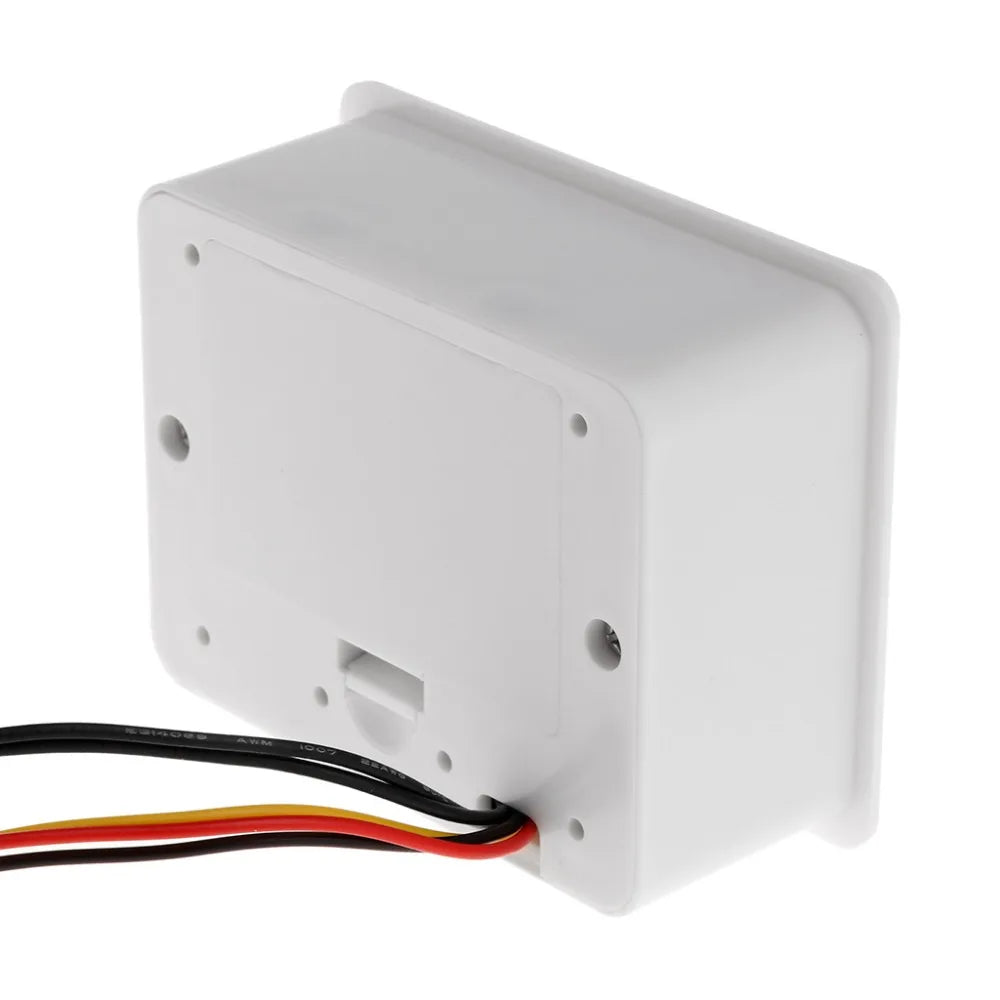

| Display dimensions | 84 x 66 x 34 mm |

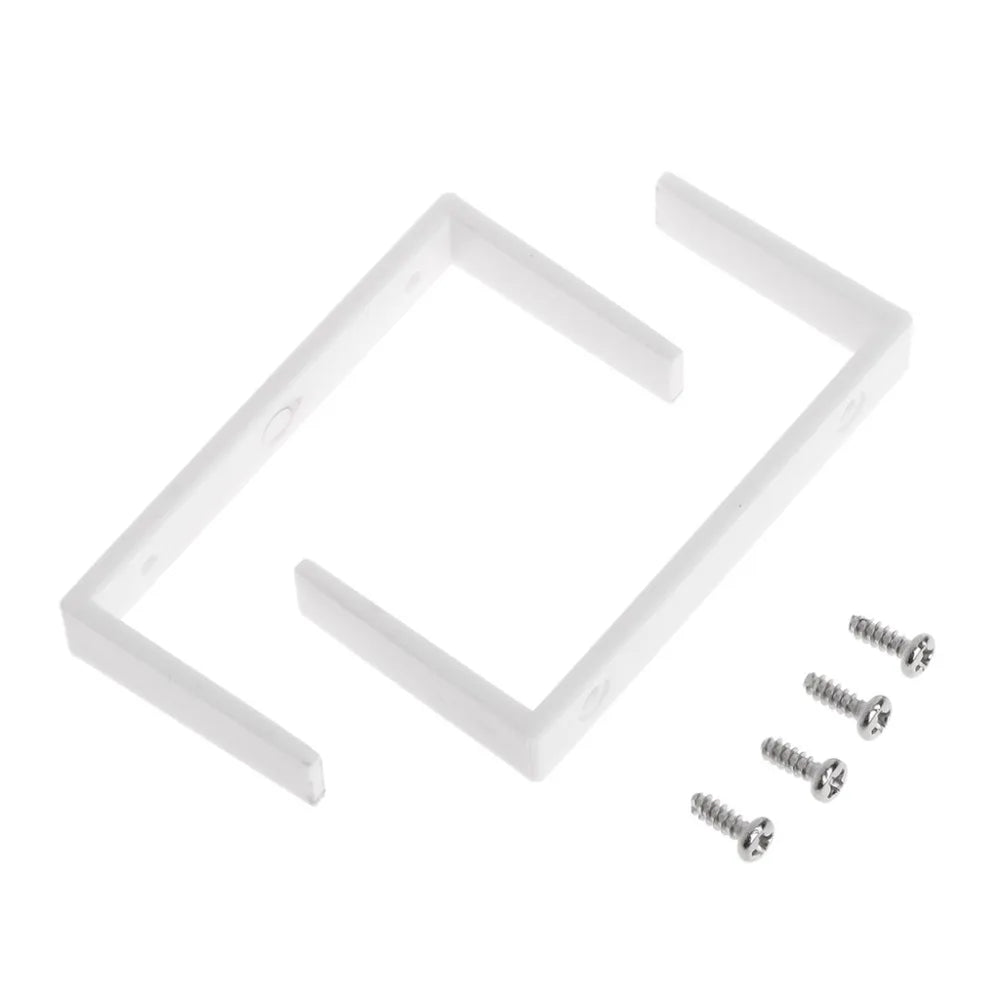

| Mounting dimensions | 78 x 60 mm |
| Display power input | 5 V DC |
| Flow units | L/min or gallons/min |
| Total-volume units | Liters or gallons |
| Temperature display | Celsius or Fahrenheit with a compatible optional sensor |
Matching the Sensor to the Display
The display calculates flow from the connected sensor's signal and K setting. When selecting replacement components, check the sensor model, supply requirements, wiring and calibration setting together.

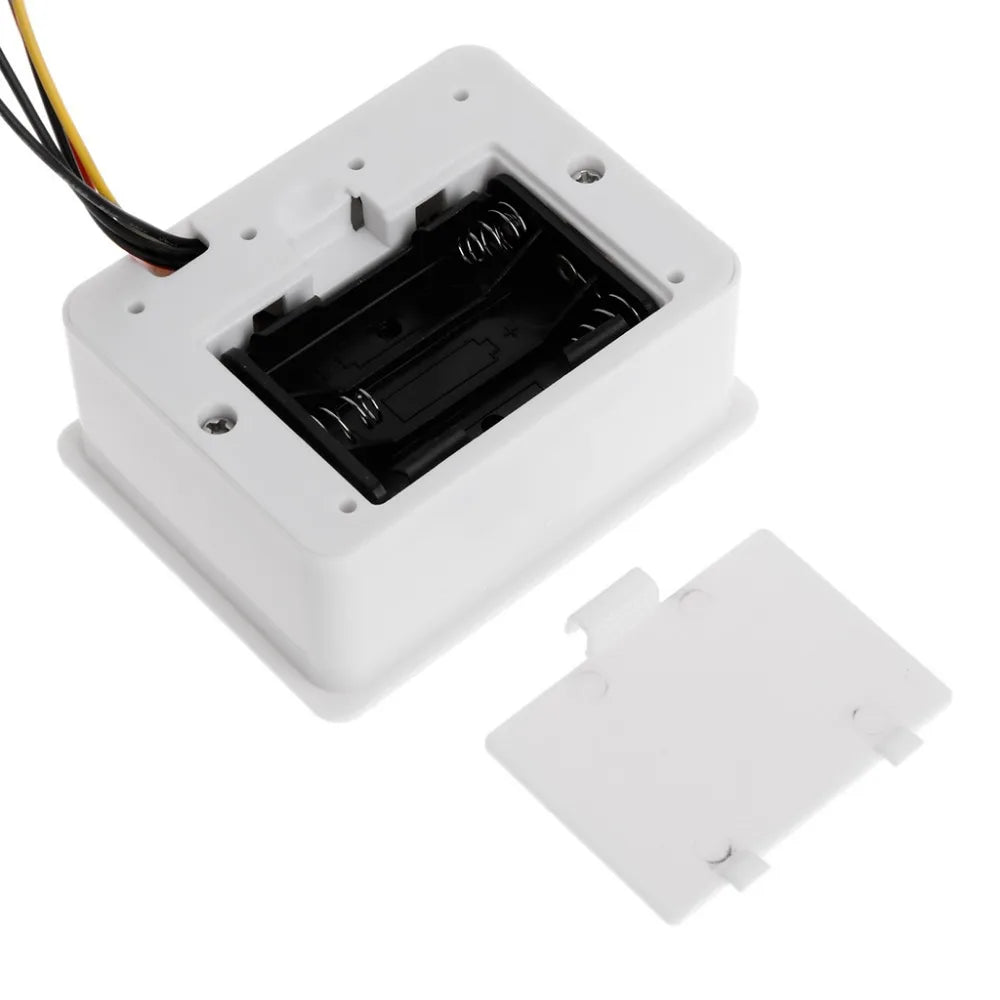

Battery operation depends on the connected sensor's power consumption. Select the power arrangement for the complete display-and-sensor combination and follow the supplied connection instructions.
The water-temperature limit belongs to the flow sensor. Temperature measurement additionally requires the optional temperature-sensing component. Confirm that component when ordering a configuration for water-flow and temperature readings.
