Digital Water Flow Meter with Stainless Steel Sensor (3-50L/min)

Mcooh  |  SKU: FLO-8UYM-01
$160.22 USD
Free standard shipping to supported destinations. Taxes calculated at checkout.

Need help choosing? Tell us what you need to measure.

Shipping & returns

Free standard shipping is available to supported destinations. Delivery time includes order preparation and transit and varies by destination. See our shipping policy for current delivery estimates and availability.

See our return policy for return conditions. For an order-specific delivery question, contact Mcooh.

Choosing the right instrument?

Tell us your measurement range, material or target, and operating conditions.

Ask a selection question

Description

Precise Water Flow Measurement & Control

The US211M Digital Water Flow Meter and USS-HS10TA Hall Effect Sensor kit provides a reliable and accurate solution for measuring and controlling liquid flow. Featuring advanced single-chip microcomputer technology and a durable stainless steel sensor, this system is perfect for a wide range of applications, from industrial processes to home use. Its ultra-thin design and clear LCD display make it both easy to install and simple to operate.

Key Features:

  • High Accuracy: Utilizes advanced microcomputer technology for precise and repeatable flow measurement.
  • Durable Construction: The USS-HS10TA sensor is made from stainless steel for long-lasting performance.
  • Clear Digital Display: A large, white backlit LCD screen provides real-time flow rate and total volume readings.
  • Flexible Installation: The controller's ultra-thin and lightweight design allows for easy mounting in various configurations.
  • Wide Compatibility: Supports a broad range of external power supplies, making it adaptable to different systems.

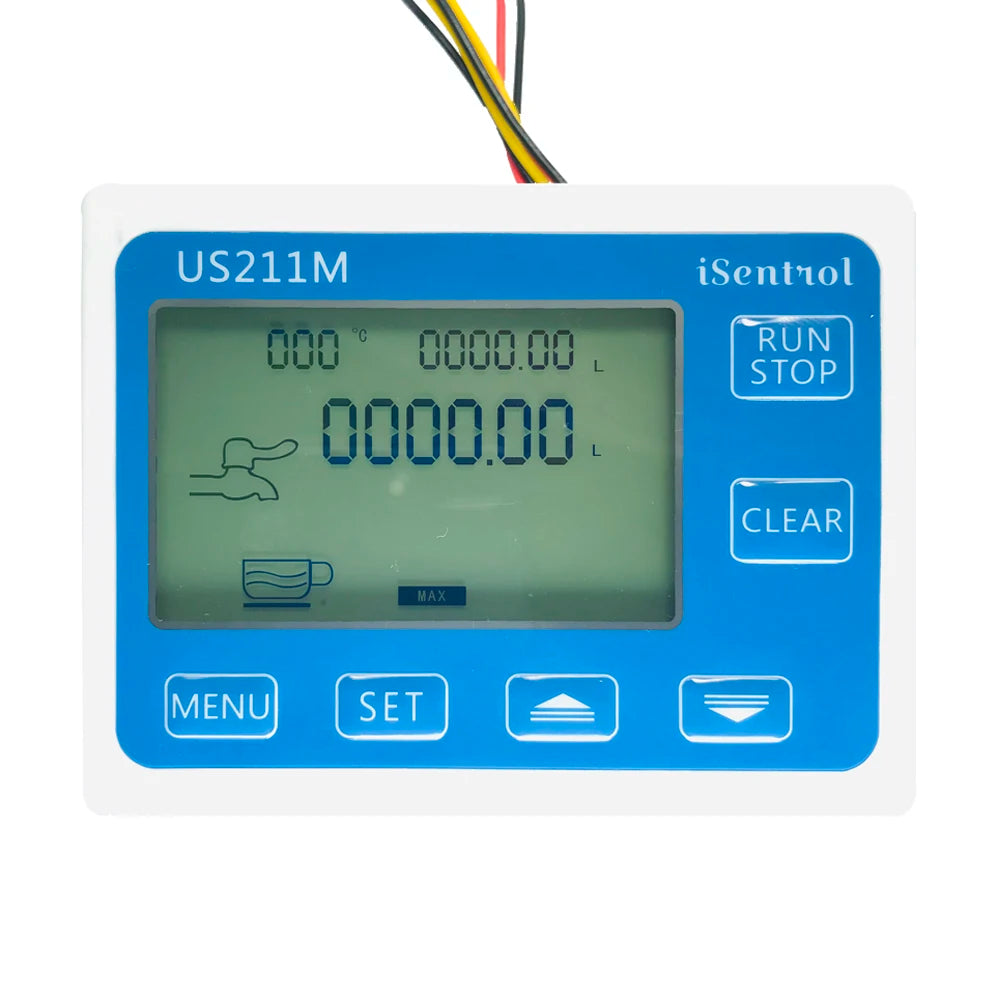

Controller Specifications:

Specification Details
Voltage Range DC 24V ±8V / 1A
Solenoid Valve Voltage DC 12V / 0.3A-0.5A (Normally Closed)
Flow Probe Voltage DC 5V
Quantitative Range 0.1 - 9999 Liters

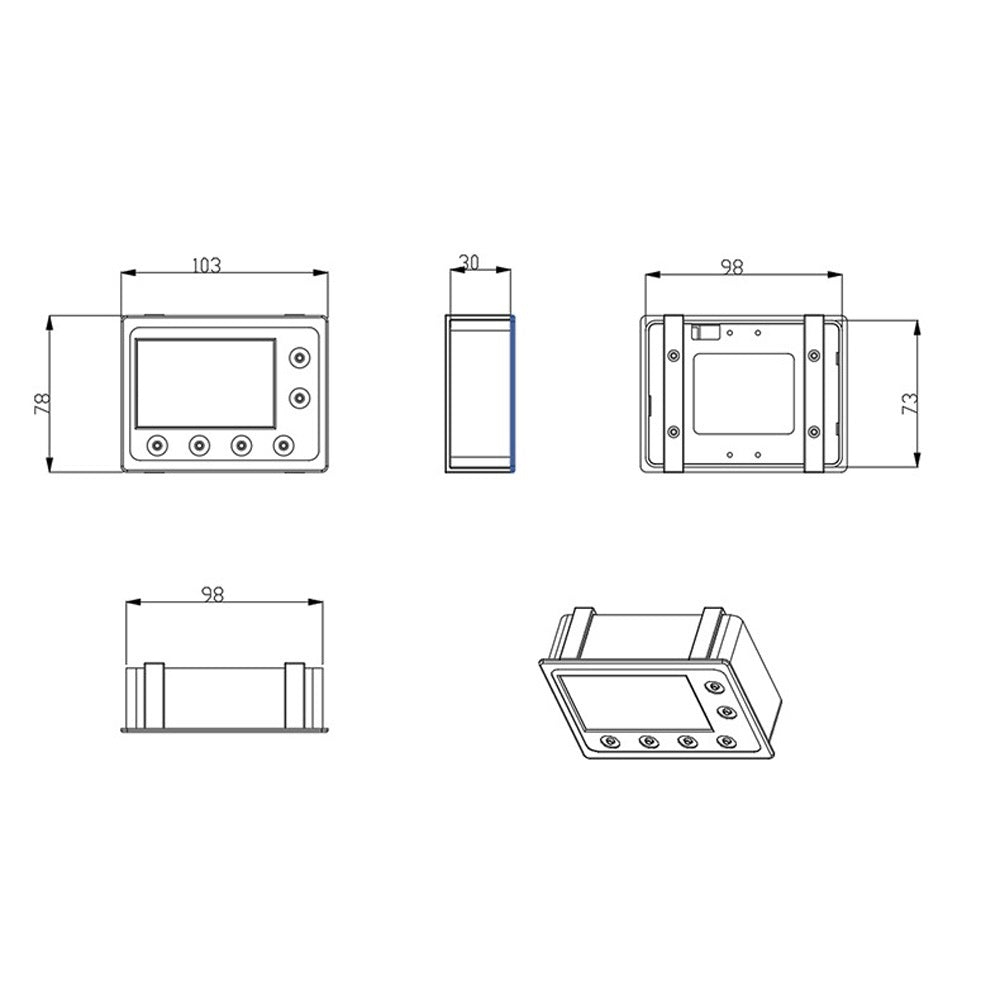

Dimensions 103 x 80 x 35 mm

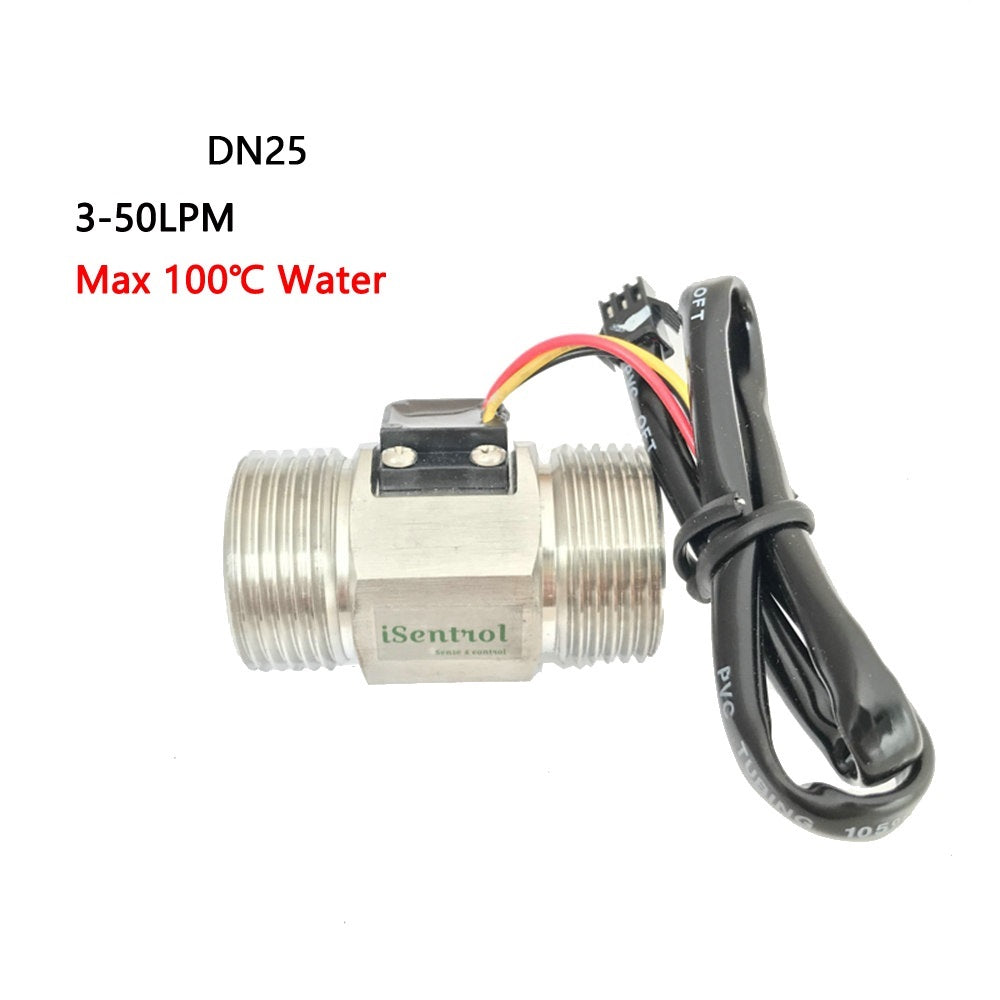

Flow Sensor Specifications:

Specification Details
Thread Size BSPP G1" Male
Flow Range 3 - 50 L/min
Accuracy ±5%
Working Pressure 0.05 - 0.8MPa
Temperature Range -20°C to 80°C
Material Stainless Steel

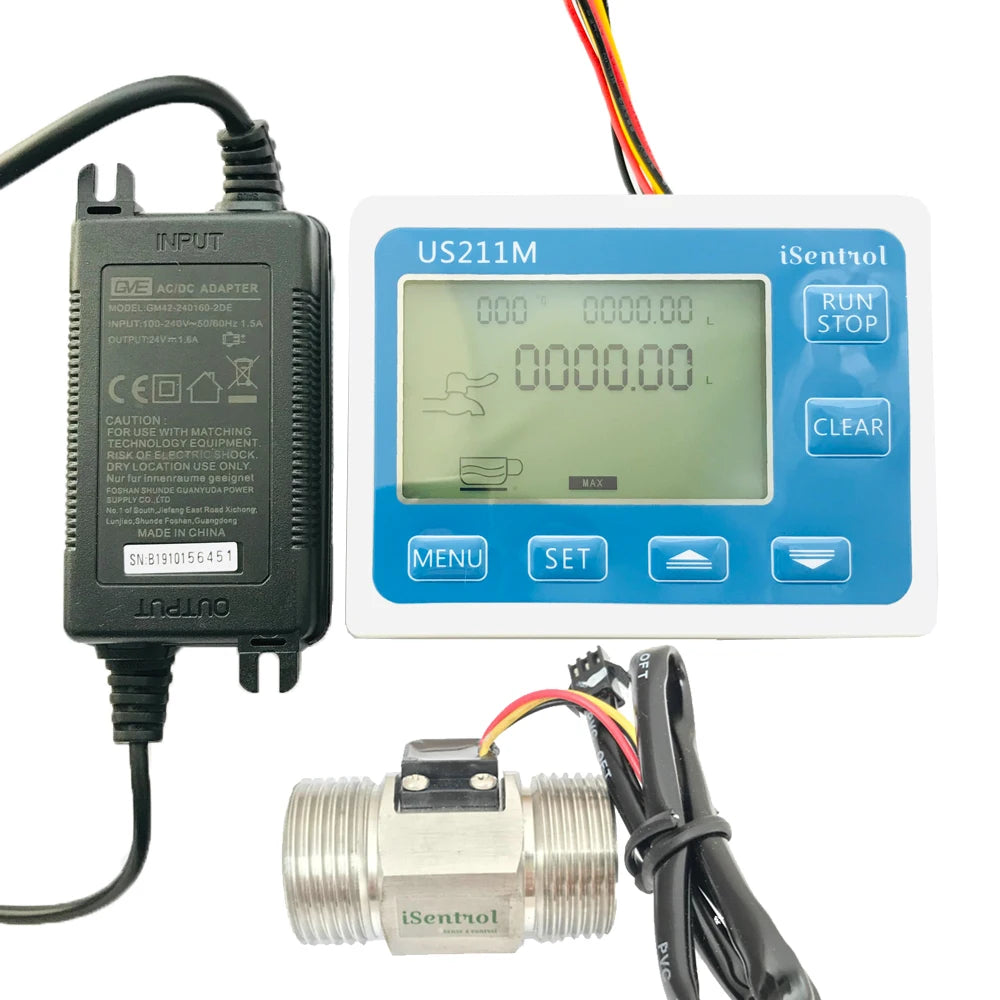

What's in the Box:

  • 1 x US211M Digital Flow Meter Controller
  • 1 x USS-HS10TA Stainless Steel Flow Sensor
  • 1 x Power Adapter
  • 1 x User Manual
