Description

Measure hydrogen chloride concentration with the MH2000-HCL electrochemical detector and its adjustable internal sampling pump. This portable HCl detector is available in Standard, High Precision and High Performance configurations, with the measuring span selected for the order.

HCl Configurations and Measuring Spans

Standard and High Precision versions each offer 0-10, 0-20, 0-50 and 0-100 ppm. They share the same available spans but are separate performance configurations. Select the performance grade as well as the range to identify the required version.

High Performance versions cover 0-500, 0-1000 or 0-2000 ppm and are single-gas instruments. All options on this page measure hydrogen chloride only. The menu describes eleven order combinations, with one selected configuration supplied per instrument.

Specifications

Item	Specification
Model	MH2000-HCL
Detected gas	Hydrogen chloride (HCl)
Sensor principle	Electrochemical
Performance options	Standard / High Precision / High Performance
Standard measuring spans	0-10 ppm; 0-20 ppm; 0-50 ppm; 0-100 ppm
High Precision measuring spans	0-10 ppm; 0-20 ppm; 0-50 ppm; 0-100 ppm
High Performance measuring spans	0-500 ppm; 0-1000 ppm; 0-2000 ppm
Gas configuration	Single-gas HCl; High Performance versions are single-gas only
Sampling method	Internal sampling pump
Pump flow	Up to 1 L/min
Pump adjustment	10 suction levels
Display	LCD dot matrix; gas type, concentration, unit, battery level and time
Concentration units	µmol/mol, ppm, mg/m³; 1 µmol/mol = 1 ppm
Interface languages	English / Chinese
Alarm outputs	Sound, light and vibration
Alarm stages	Two-stage sound and light alarms
Sound alarm	85 dB
Alarm lights	Blue low alarm / red high alarm
Alarm setpoints	User adjustable
Setup functions	Self-check and zero calibration
Factory reset	Supported
Compensation functions	Temperature and pressure compensation
Housing	High-strength engineering plastic
Battery	3.6 V, 2300 mAh rechargeable lithium polymer
Charging time	4-6 hours
Operating temperature	-20°C to 50°C
Operating humidity	0-95% RH, non-condensing
Protection rating	IP65
Dimensions	205 x 75 x 32 mm
Instrument weight	300 g
Data recording	Optional; more than 100,000 records
Recording interval	5-3600 seconds, adjustable with optional recording
PC transfer	USB download and printing with optional data function

Sampling Adjustment and Display

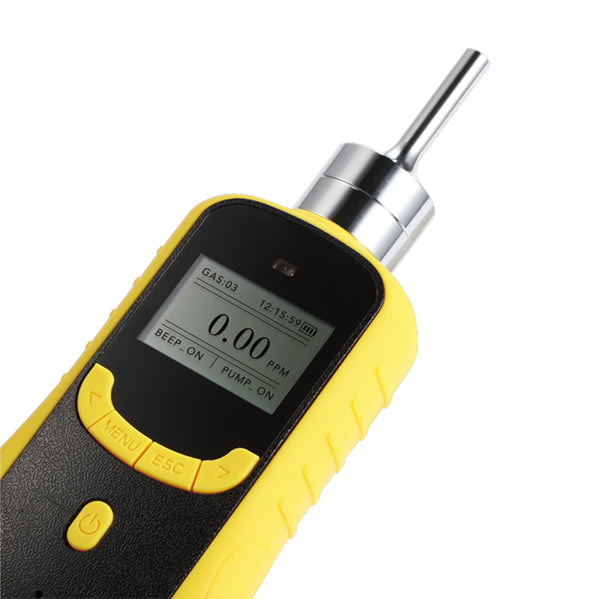

The internal pump provides ten suction levels and flow up to 1 L/min. An LCD dot-matrix display presents the gas type, concentration, unit, battery level and time. English and Chinese interfaces are available, and the concentration display can switch between µmol/mol, ppm and mg/m³.

Two-stage sound and light alarms have adjustable setpoints, with vibration also available as an alarm output. Self-check and zero calibration support instrument setup, alongside factory reset and temperature and pressure compensation functions. Follow the supplied instructions for the chosen HCl configuration when using these controls.

Recording and Package Choices

Optional recording stores more than 100,000 readings, with an adjustable interval of 5 to 3600 seconds. USB download and printing are optional data functions. Specify these requirements when ordering so the selected package matches the intended recordkeeping procedure.

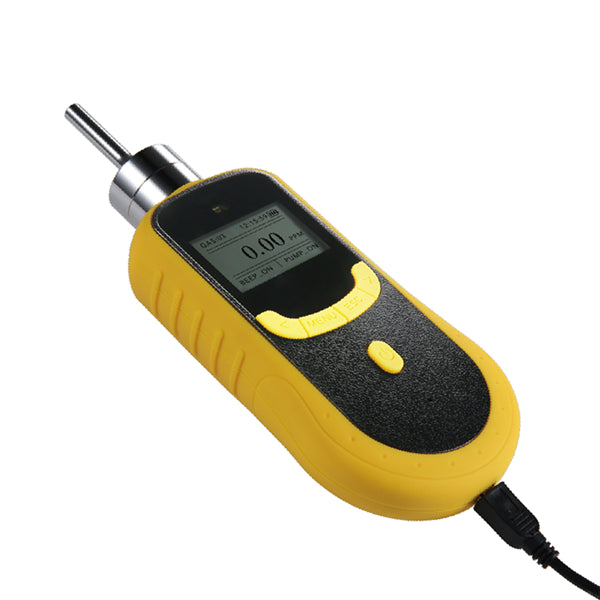

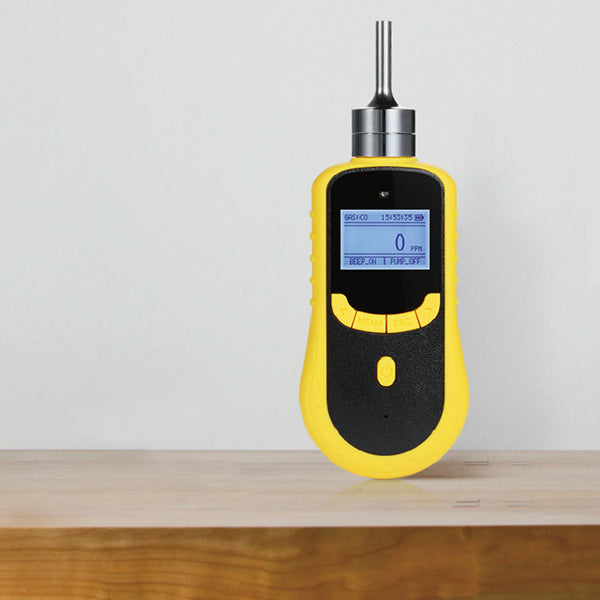

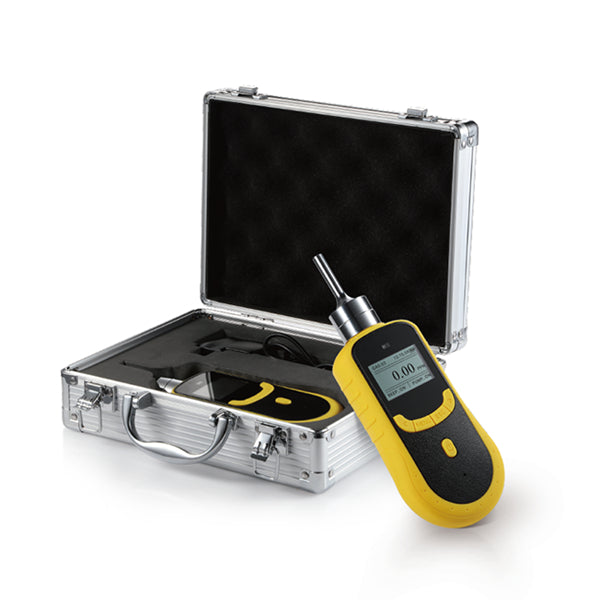

The standard package contains the detector, carrying case, charging/data cable and instruction manual. The cable alone does not provide the optional recording function. Gallery images illustrate the shared pump-detector housing; screen readings are illustrative and the case view does not represent two supplied detectors.

Hydrogen Chloride Detector with Adjustable Pump Sampling
