Nitrogen Dioxide Detector - Low Range 1 & 5 ppm
Nitrogen Dioxide Detector - Low Range 1 & 5 ppm - 0-1 ppm In stock. Shipping calculated at checkout.
In-stock orders usually take 2–4 business days to prepare; delivery typically takes 5–15 business days after dispatch. Availability is confirmed at checkout. Duties and taxes may apply. Shipping details · Return conditions
Need help choosing? Tell us what you need to measure.
Shipping & returns
Shipping & returns
See our shipping policy for preparation and delivery information, and our return policy for return conditions.
For a delivery estimate to your destination, contact Mcooh.
Choosing the right instrument?
Tell us your measurement range, material or target, and operating conditions.
Description
Description
The MH2000-NO2 Low Range detector measures nitrogen dioxide in ambient air with an electrochemical sensor and an internal sampling pump. Two separate versions are available: 0-1 ppm and 0-5 ppm. Both have 0.001 ppm resolution. Choose the span that covers the sample concentration expected in the measurement procedure.
Choose the 1 ppm or 5 ppm Version
The 0-1 ppm version provides a lower maximum measuring span, while the 0-5 ppm option covers a broader low-concentration interval. Each instrument is configured for the range selected when ordering. The supplied detector does not automatically switch between the two versions.
Resolution is the stated reading increment. The 0.001 ppm value does not establish a detection limit or a numerical accuracy specification. This High Precision, single-gas configuration measures NO2 for ambient-air tasks. Choose the separate flue-gas-specific NO2 version when that application is required.
Readings and Alarm Settings
An LCD dot-matrix display shows the gas type, concentration, unit, battery level and time. English and Chinese operating interfaces are available. Concentration units include μmol/mol, ppm and mg/m³, with 1 μmol/mol equivalent to 1 ppm.
Two alarm stages allow the setpoints to be adjusted. Sound, light and vibration provide the alarm outputs, including an 85 dB sound alarm and blue/red alarm lights. Self-check, zero calibration, factory reset, and temperature and pressure compensation support instrument setup. Use these controls according to the supplied instructions for the selected low-range NO2 configuration.
Specifications
| Item | Specification |
|---|---|
| Model | MH2000-NO2 |
| Detected gas | Nitrogen dioxide (NO2) |
| Configuration | High Precision, ambient-air, single-gas |
| Measuring range options | 0-1 or 0-5 ppm |
| Resolution | 0.001 ppm for both Low Range options |
| Sensor principle | Electrochemical |
| Sampling method | Internal sampling pump |
| Pump flow | Up to 1 L/min |
| Pump adjustment | 10 settings |
| Display | LCD dot matrix; gas type, concentration, unit, battery level and time |
| Operating languages | English and Chinese |
| Concentration units | μmol/mol / ppm / mg/m³; 1 μmol/mol = 1 ppm |
| Alarm outputs | Sound, light and vibration |
| Alarm stages | Two |
| Alarm setpoints | User adjustable |
| Sound alarm | 85 dB |
| Alarm lights | Blue for low alarm; red for high alarm |
| Measurement compensation | Temperature and pressure compensation |
| Instrument controls | Self-check, zero calibration and factory reset |
| Battery | 3.6 V, 2300 mAh rechargeable lithium polymer |
| Charging time | 4-6 hours |
| Operating temperature | -20°C to 50°C |
| Operating humidity | 0-95% RH, non-condensing |
| Protection rating | IP65 |
| Dimensions | 205 x 75 x 32 mm |
| Instrument weight | 300 g |
| Data recording / PC export | Optional; excluded from this base configuration |
Sampling and Recording Choices
The internal pump offers up to 1 L/min flow and ten adjustment settings. The 300 g detector uses a 3.6 V, 2300 mAh rechargeable lithium-polymer battery, with a charging time of 4-6 hours. Sampling filters, drying accessories and probes are separate package choices.

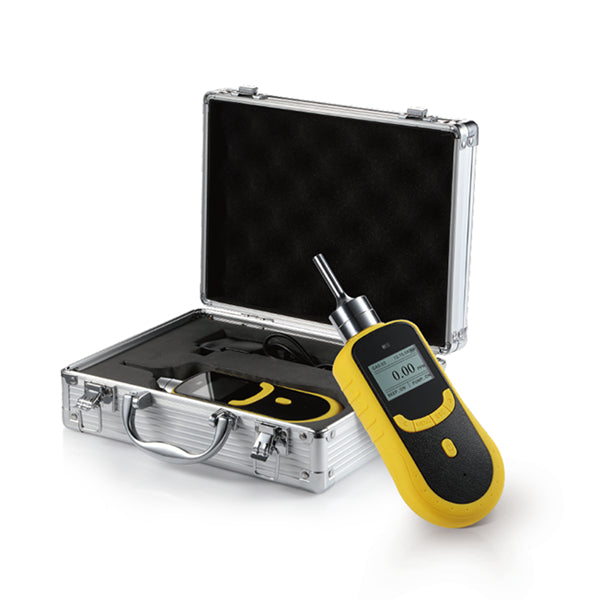

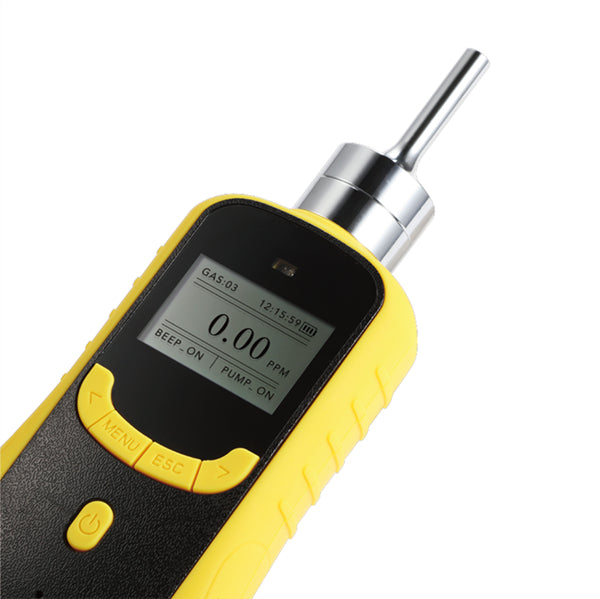

Data logging and PC export are optional and excluded from this base configuration. Gallery photographs show the shared pump-detector housing and its controls. Screen readings are illustrative; the carrying-case view does not represent two supplied instruments, and a connected cable does not establish included PC export.
