BH-90A Ozone Detector — Six O3 Range and Resolution Options

The BH-90A ozone product contains six O3 range variants with different resolution labels. These are separate purchase configurations. Start with the concentration span and reading increment needed for the measurement, then compare sampling and package details.

Choose the Configuration for Your Measurement

• Lower ranges: 0-10, 0-20 and 0-50 ppm options are labeled 0.1 ppm.
• Other ranges: 0-100, 0-1000 and 0-5000 ppm options are labeled 1 ppm.
• Comparison: Do not infer a built-in pump from the BH-90A family name; compare explicitly pumped K-600 and MH2000 options if needed.

Order Options

Open an option to review its current price and purchase controls. Each option is a separate order configuration; use the selected product and SKU when confirming the supplied package.

Product Details and Specifications

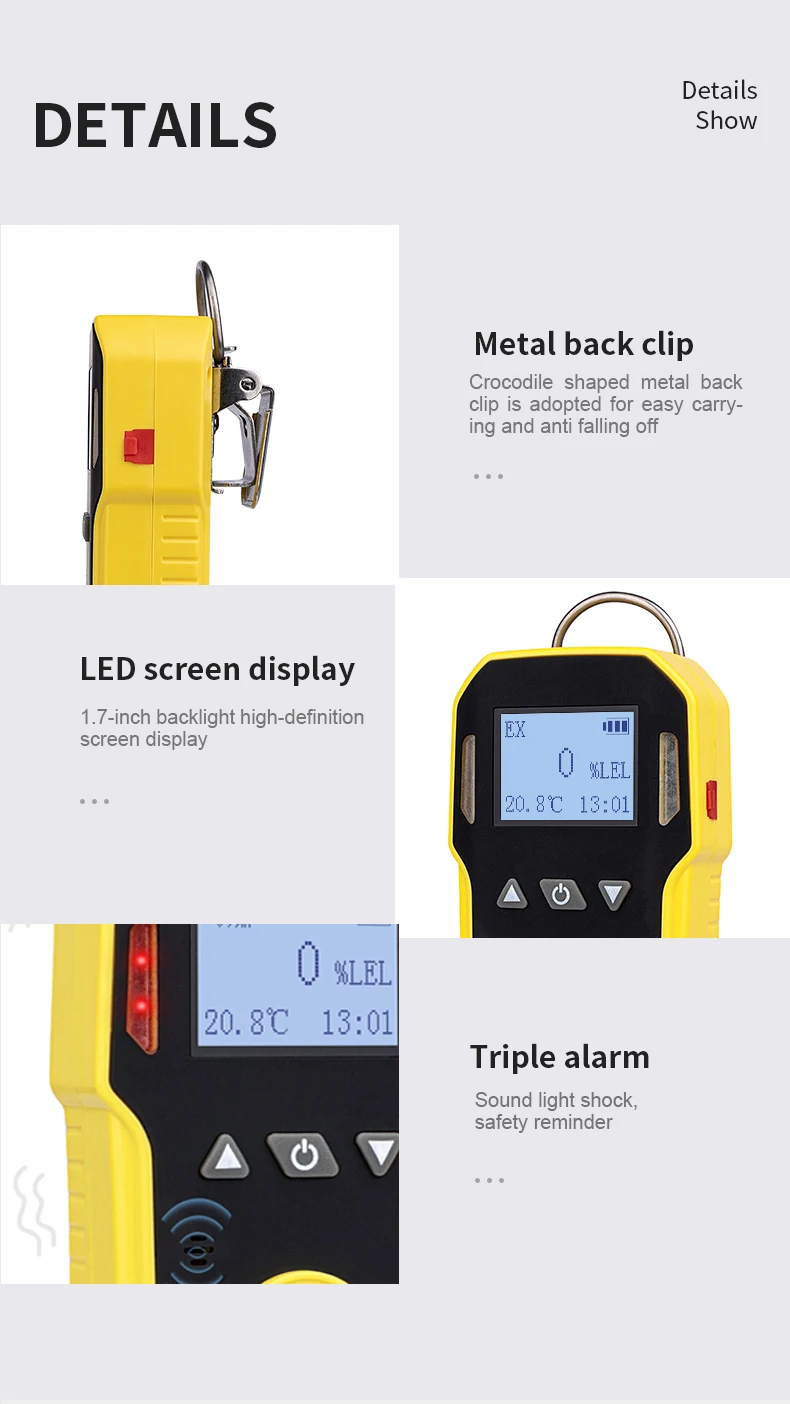

Features:

1. Industrial-grade sensor, high precision, real data, strong stability, real-time detection.

2. Triple alarm mode (sound, light, vibration) is not easy to ignore, high security, high and low alarm value can be set free.

3. 3.7v rechargeable lithium battery, battery capacity 1500MA, charging time is less than five hours, continuous work for more than ten hours (gas detection is not less than 7 hours).

4. High-strength ABS material, waterproof, dustproof, explosion-proof, three anti-design.

5. The use of mainstream 8-bit micro-control technology, fast response, high precision, stability and repeatability, simple operation, small size, portable and durable, with a high degree of waterproof performance, withstand the harsh environment of the test.

Product description

Gas type: Ozone Gas detector

Gas measurement range: Ozone: 0~20ppm/0-50ppm/0-100ppm/0-1000ppm/0-5000ppm

Resolution: 0-10ppm/0-20ppm/0-50ppm: 0.1ppm, 0-100ppm/0-1000ppm/0-5000ppm: 1ppm

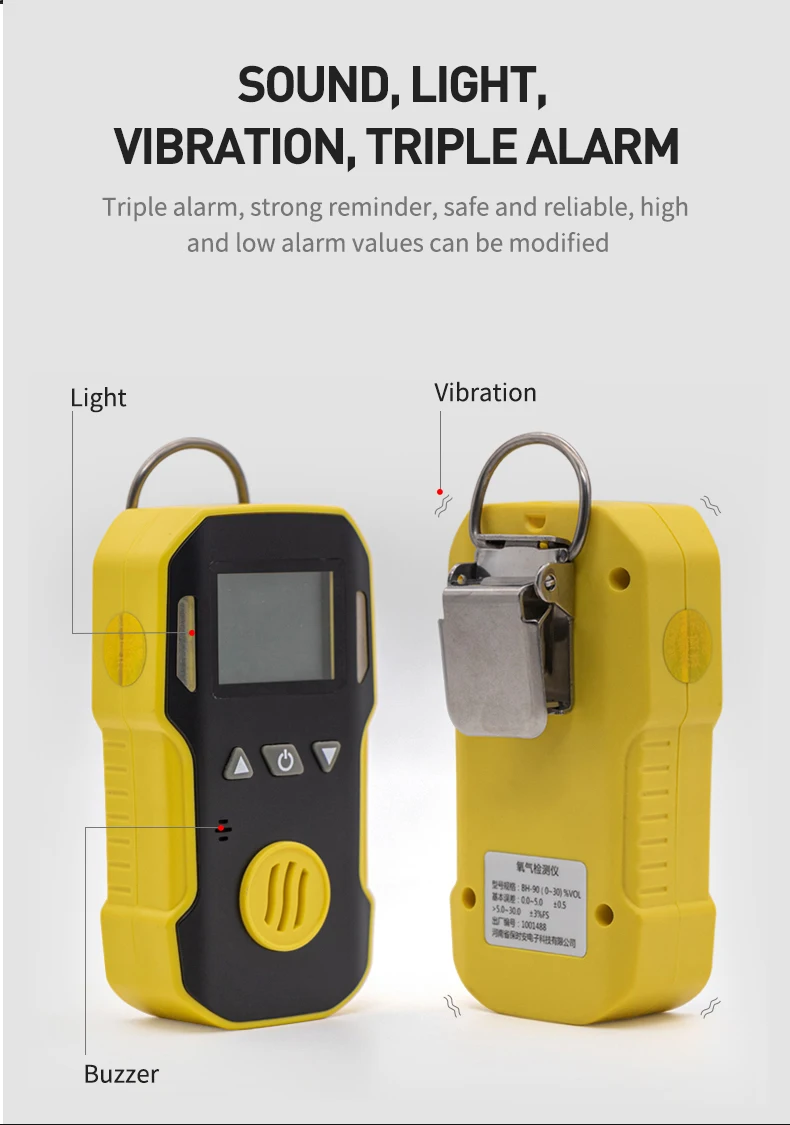

3 Alarm methods : Sound Alarm, Light flashing, Vibrating alert, adjustable alarm values, alarm sound up to 80db

Operating temperature:  -20℃～50℃(except LEL is 0~40C)

Operating humidity:＜95%RH (no dew)

Display: 2.0 inch HD display

Power: 3.7V li-battery(Built-in)

Battery runtime: 10 hours or so.

Product Net Weight : 227g (with battery)

Size : 100mm×60mm×30mm (L × W × H)

Explosion-proof mark: Exib IIB T3 Gb

Protection class: ip65

Record storage: 1000 groups of alarm records

Product Size: 130mm×67mm×30mm (L × W × H)

Package Weight: 1000g

Packing List

1 x O3 gas monitor

1 x English User manual

1 x Charging adaptor

1 x USB charging cable

1 x Calibration cover

1 x Metal aluminum box

1 xCertificate


Compare the Relevant Alternative

K-600 explicitly states built-in-pump sampling and offers 0-50 ppm / 0.1 ppm and 0-100 ppm / 1 ppm options. BH-90A provides a wider range menu on this page. Compare the exact selected versions rather than their shared gas name alone.

View the comparison model and its options.

Questions Before Ordering

Why do the range labels include different resolution numbers?

The current variants pair a span with a reading increment. Keep that pair together; the lower-range 0.1 ppm label is not carried over to the 0-5000 ppm version.

Can one BH-90A order use every O3 range?

No range-switching capability is established by the variant menu. Select one listed configuration before ordering.

Selection and Use Guides

• Pumped vs diffusion gas detectors
• Gas sensor cross-sensitivity
• Browse gas detectors by gas and measurement task

Selection note: Follow the supplied instrument instructions and the applicable site procedure. This product comparison does not replace a site-specific risk assessment.
