The PID ethylene oxide gas detector is the MH2000-EO High Precision PPM configuration, offered with five measuring spans. Select 0-100, 0-200, 0-1000, 0-2000 or 0-3000 ppm for the concentration interval required by your procedure. This product uses a photoionization sensor rather than the Standard electrochemical configuration.
PID Configuration and Range Selection
All five options use the PPM sensor configuration. The 0-100 and 0-200 ppm versions have lower upper limits; 0-1000, 0-2000 and 0-3000 ppm cover broader intervals. Each starts at zero. The order selection identifies one measuring version, not five ranges that can be exchanged during operation.
Sensor configuration and upper measuring limit are separate purchase decisions. A 0-100 or 0-200 ppm PID version and an electrochemical version with the same span are different configurations. Use the PID label when specifying this product, together with the selected range and ethylene oxide gas identity.
Pump Sampling and Controls
Internal pump sampling brings the sample to the instrument. The LCD shows the gas concentration together with the gas type, unit, battery level and time. Adjustable alarm points and sound, light and vibration outputs support the instrument's concentration alarm functions.
Self-calibration, zero calibration and factory reset are available. Use the supplied instructions for the selected PID version and the intended measurement procedure when setting up the instrument.
Specifications
| Item | Specification |
|---|---|
| Model | MH2000-EO |
| Detected gas | Ethylene oxide (EO / EtO) |
| Sensor principle | Photoionization (PID) |
| Configuration | High Precision, PPM sensor |
| Measuring range options | 0-100 ppm; 0-200 ppm; 0-1000 ppm; 0-2000 ppm; 0-3000 ppm |
| Sampling method | Internal sampling pump |
| Pump flow | Up to 1 L/min |
| Display | LCD dot matrix; gas type, concentration, unit, battery level and time |
| Concentration units | ppm / mg/m³ |
| Alarm outputs | Sound, light and vibration |
| Sound alarm | 85 dB |
| Low alarm light | Blue |
| High alarm light | Red |
| Alarm setpoints | User adjustable |
| Calibration functions | Self-calibration and zero calibration |
| Factory reset | Supported |
| Housing | High-strength engineering plastic |
| Battery | 3.6 V, 2300 mAh rechargeable lithium polymer |
| Charging time | 4-6 hours |
| Operating temperature | -20°C to 50°C |
| Operating humidity | 0-95% RH, non-condensing |
| Protection rating | IP65 |
| Dimensions | 205 x 75 x 32 mm |
| Instrument weight | 300 g |
Specify the Measurement Arrangement

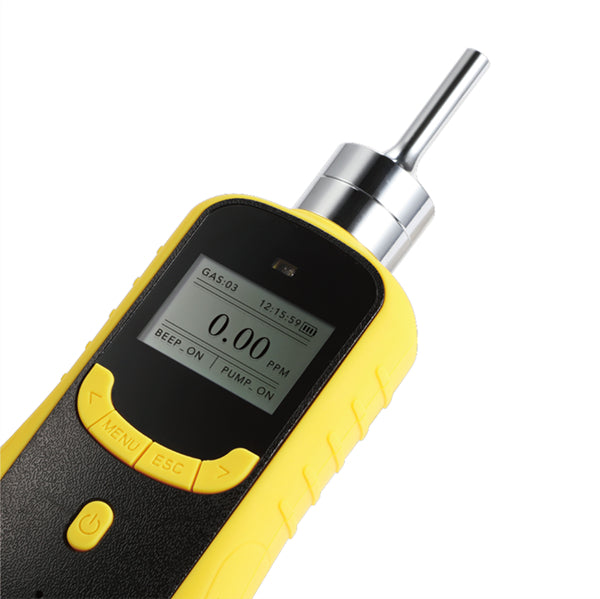

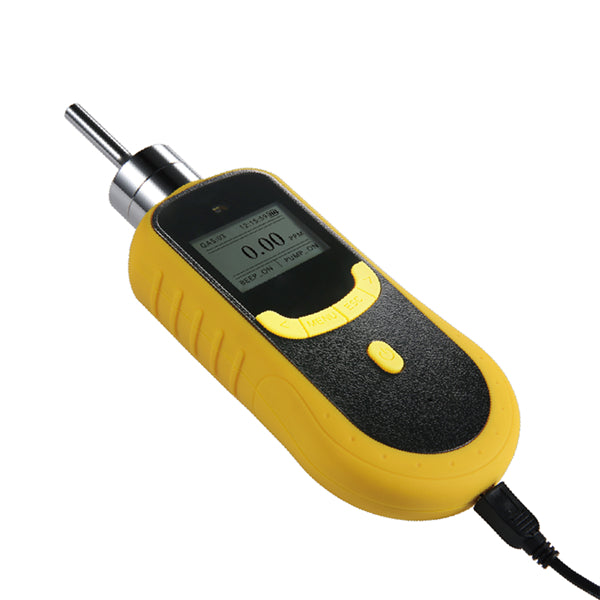

Choose the sampling arrangement for the operating conditions listed above. Recording, PC export, filters, drying accessories and probes should be specified as order requirements when needed. Gallery views illustrate the shared housing and controls; screen readings do not identify the supplied PID sensor or range, and a case photograph does not establish a two-instrument bundle.
