This portable 4 gas monitor combines carbon monoxide, hydrogen sulfide, oxygen and combustible gas measurement in one instrument. The MH-1200H-S4 uses diffusion sampling, with electrochemical sensors for CO, H2S and O2 and a catalytic combustion sensor for the LEL channel. It provides the four readings through a monochrome LCD and uses sound, light and vibration for alarm indication.
Four Gas Channels in One Configuration
The instrument is supplied as one four-channel configuration. Each gas has its own measurement span and concentration unit:
| Gas channel | Measurement range | Sensor principle |
|---|---|---|
| Carbon monoxide (CO) | 0-1000 ppm | Electrochemical |
| Hydrogen sulfide (H2S) | 0-100 ppm | Electrochemical |
| Oxygen (O2) | 0-30% Vol | Electrochemical |
| Combustible gas (LEL) | 0-100% LEL | Catalytic combustion |
Use these channel ranges when comparing the monitor with the requirements of your monitoring procedure. CO and H2S are measured in ppm, oxygen in percent by volume and combustible gas in percent LEL. Diffusion sampling measures air at the instrument inlet. Keep the inlet exposed to the air being checked and follow the instrument instructions for calibration and pre-use checks.
Alarm Settings and Event Review
The audible alarm is rated at 85 dB, with light and vibration providing additional indications. Alarm set points can be configured for the monitoring procedure. The detector stores 100 alarm records that can be reviewed on the instrument. The 128 x 64 monochrome LCD supports English and Chinese interfaces; backlight timing can be adjusted, and the backlight turns on automatically during an alarm.
Instrument Specifications
| Model | MH-1200H-S4 |
|---|---|
| Gas configuration | CO, H2S, O2 and combustible gas |
| Sampling | Diffusion |
| Display | 128 x 64 monochrome LCD |
| Interface languages | English and Chinese |
| Alarm modes | Sound, light and vibration |
| Audible alarm | 85 dB |
| Alarm settings | Configurable set points |
| Alarm history | 100 records viewable on the instrument |
| Backlight | Adjustable timing; automatic illumination during an alarm |
| Battery | 2300 mAh rechargeable lithium-polymer |
| Operating temperature | -20 to 50 Degree C |
| Ingress protection | IP65 |
| Dimensions | 131 x 83 x 35 mm |
| Approximate instrument weight | 240 g including protective cover |
Controls and Carrying Details
Zero calibration, self-calibration, battery status checks and a factory reset function are available through the instrument controls. A rechargeable 2300 mAh lithium-polymer battery powers the monitor. The housing measures 131 x 83 x 35 mm, and the instrument weighs approximately 240 g including its protective cover. A rear clip provides a carrying point during inspection rounds.

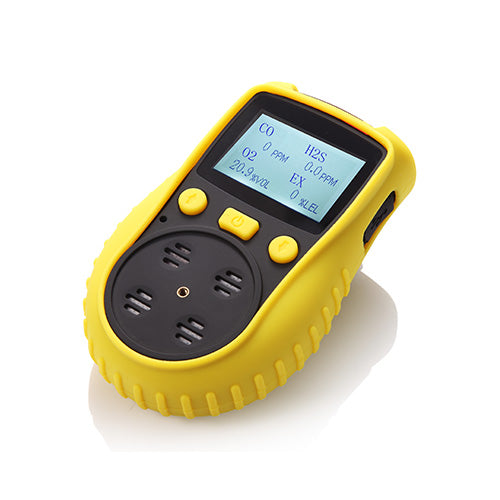

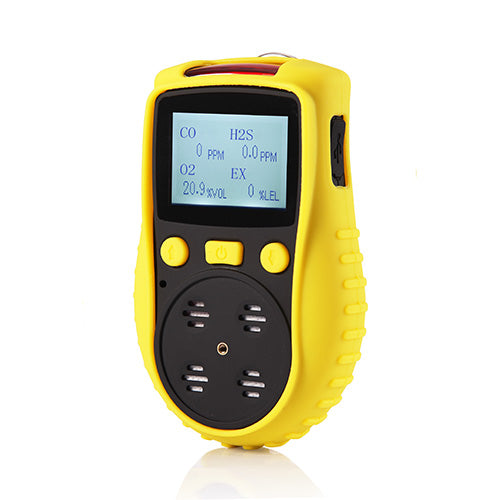

Follow the instrument instructions and your monitoring procedure for setup, calibration, checks and alarm handling. Product photos illustrate the housing shared across this series; gas names on the demonstration screen may differ from the selected configuration.
