MH-1200H-S-H2S Detector — Diffusion, 50/100/200 ppm
MH-1200H-S-H2S Detector — Diffusion, 50/100/200 ppm - 0-50 ppm In stock. Shipping calculated at checkout.
In-stock orders usually take 2–4 business days to prepare; delivery typically takes 5–15 business days after dispatch. Availability is confirmed at checkout. Duties and taxes may apply. Shipping details · Return conditions
Need help choosing? Tell us what you need to measure.
Shipping & returns
Shipping & returns
See our shipping policy for preparation and delivery information, and our return policy for return conditions.
For a delivery estimate to your destination, contact Mcooh.
Choosing the right instrument?
Tell us your measurement range, material or target, and operating conditions.
Description
Description
The MH-1200H-S-H2S is the diffusion hydrogen-sulfide model with separate 0-50, 0-100 and 0-200 ppm configurations. It is a single-gas choice for a named H2S measurement requirement. If other channels are required, compare a model that lists those gases explicitly.
Choose the Configuration for Your Measurement
- Gas and options: Hydrogen sulfide, with three current range/SKU pairs.
- Sampling: Diffusion sampling is stated in the product description.
- Selection boundary: A single H2S instrument does not acquire O2, CO or combustible-gas channels from the application name.
Order Options
| Select an option | SKU |
|---|---|
| 0-50 ppm | GAS-H7Q2-01 |
| 0-100 ppm | GAS-H7Q2-02 |
| 0-200 ppm | GAS-H7Q2-03 |
Open an option to review its current price and purchase controls. Each option is a separate order configuration; use the selected product and SKU when confirming the supplied package.
Product Details and Specifications
The MH-1200H-S-H2S is a portable hydrogen sulfide detector for H2S checks during facility and field inspections. An electrochemical sensor measures gas in the air around the instrument through diffusion sampling. The detector has a rear clip and protective cover for carrying during a measurement round. Select the required H2S range when ordering; each range is a separate product variant.
H2S Range Options
Choose from 0-50 ppm, 0-100 ppm, or 0-200 ppm according to the concentration span required for your work. The three ranges are separate order configurations. The standard configuration samples by diffusion. An external sampling pump is an optional setup for applications that need a different sampling arrangement; confirm the pump setup before ordering.
Readings, Alarms, and Records
The monochrome dot-matrix LCD shows the gas reading and concentration unit. The display supports ppm and mg/m³ units, and its backlight can be set to switch on automatically during an alarm. Audible, visual, and vibration alarms give three ways to notice an alert. Alarm points can be configured, and up to 100 alarm records can be reviewed on the detector. Zero and self-calibration functions are available on the instrument.
Technical Specifications
| Model | MH-1200H-S-H2S |
|---|---|
| Measured gas | Hydrogen sulfide (H2S) |
| Sensor principle | Electrochemical |
| Sampling method | Diffusion; external pump setup optional |
| Range configurations | 0-50 ppm; 0-100 ppm; 0-200 ppm |
| Display | 128 x 64 monochrome dot-matrix LCD |
| Concentration units | ppm and mg/m³ |
| Alarm modes | Sound, light, and vibration |
| Audible alarm | 85 dB |
| Alarm history | 100 records, viewable on the instrument |
| Backlight | Adjustable timing; automatic activation during an alarm |
| Power | 2300 mAh rechargeable lithium-polymer battery |
| Operating temperature | -20 to 50 Degree C |
| Ingress protection | IP65 |
| Dimensions | 131 x 83 x 35 mm |
| Approximate unit weight | 240 g with protective cover |
Before Use

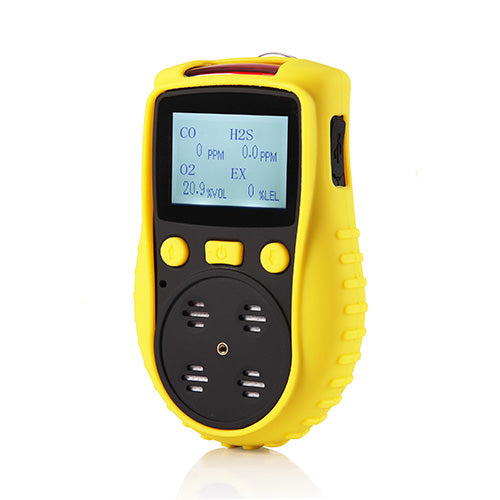

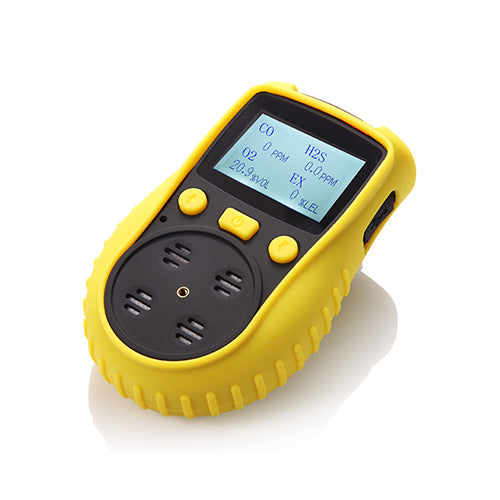

With diffusion sampling, the surrounding air must reach the detector's sensor openings. Follow the supplied instructions and your site's procedures for calibration, alarm settings, and gas-monitoring checks. Product photos show the shared housing; the demonstration screen labels may differ from the ordered H2S configuration.
Compare the Relevant Alternative
BH-4S O2/EX/H2S/CO provides a different, four-channel configuration. This MH-1200H-S product offers a choice of H2S spans instead. Compare gas coverage first, then sampling, range and package requirements.
View the comparison model and its options.
Questions Before Ordering
Should I select H2S-only or multi-gas?
Write down all required gas channels for the task. Select this product for its H2S configuration; compare an explicitly multi-gas model when more channels are required.
Are the three ranges measured simultaneously?
They are separate variants with separate SKUs. The current selector does not establish a three-range instrument.
Selection and Use Guides
- Single-gas vs multi-gas selection
- Bump testing and calibration: what each does
- Browse gas detectors by gas and measurement task
Selection note: Follow the supplied instrument instructions and the applicable site procedure. This product comparison does not replace a site-specific risk assessment.
