Description
Description
The MH2000-PH3 is an electrochemical phosphine gas detector with internal pump sampling. Select a Standard version from eight measuring spans, or a High Performance version in 0-2000 or 0-3000 ppm. The instrument measures PH3 concentration and presents the reading on an LCD dot-matrix display.
Choose the Performance and Measuring Span
Standard options are 0-5, 0-20, 0-50, 0-100, 0-500, 0-1000, 0-2000 and 0-3000 ppm. High Performance options are available only in 0-2000 and 0-3000 ppm. Choose both the performance grade and range when ordering; a higher upper measuring limit does not by itself identify a different performance grade.
The 2000 and 3000 ppm versions in either grade are single-gas configurations. This product measures phosphine only. Each ordered instrument has its selected span; the range menu does not represent interchangeable measuring ranges on one unit.
Sampling and Operator Controls
Ten suction levels provide pump adjustment, with flow up to 1 L/min. The interface supports English and Chinese. Concentration units can be switched between µmol/mol, ppm and mg/m³; 1 µmol/mol equals 1 ppm.
Two-stage sound and light alarms use adjustable setpoints, with vibration also available as an alarm output. Self-check, zero calibration and factory reset support setup. Temperature and pressure compensation are included as instrument functions. Use the supplied instructions for the selected PH3 configuration and measurement procedure.
Specifications
| Item | Specification |
|---|---|
| Model | MH2000-PH3 |
| Detected gas | Phosphine (PH3) |
| Sensor principle | Electrochemical |
| Performance options | Standard / High Performance |
| Standard measuring spans | 0-5 ppm; 0-20 ppm; 0-50 ppm; 0-100 ppm; 0-500 ppm; 0-1000 ppm; 0-2000 ppm; 0-3000 ppm |
| High Performance measuring spans | 0-2000 ppm; 0-3000 ppm |
| Gas configuration | Single-gas PH3; 2000/3000 ppm versions are single-gas only |
| Sampling method | Internal sampling pump |
| Pump flow | Up to 1 L/min |
| Pump adjustment | 10 suction levels |
| Display | LCD dot matrix; gas type, concentration, unit, battery level and time |
| Concentration units | µmol/mol, ppm, mg/m³; 1 µmol/mol = 1 ppm |
| Interface languages | English / Chinese |
| Alarm outputs | Sound, light and vibration |
| Alarm stages | Two-stage sound and light alarms |
| Sound alarm | 85 dB |
| Alarm lights | Blue low alarm / red high alarm |
| Alarm setpoints | User adjustable |
| Setup functions | Self-check and zero calibration |
| Factory reset | Supported |
| Compensation functions | Temperature and pressure compensation |
| Housing | High-strength engineering plastic |
| Battery | 3.6 V, 2300 mAh rechargeable lithium polymer |
| Charging time | 4-6 hours |
| Operating temperature | -20°C to 50°C |
| Operating humidity | 0-95% RH, non-condensing |
| Protection rating | IP65 |
| Dimensions | 205 x 75 x 32 mm |
| Instrument weight | 300 g |
| Data recording | Optional; more than 100,000 records |
| Recording interval | 5-3600 seconds, adjustable with optional recording |
| PC transfer | USB download and printing with optional data function |
Recording Options and Package
Data recording and USB transfer are optional functions. With recording fitted, capacity exceeds 100,000 records and the interval can be adjusted from 5 to 3600 seconds. Specify recording and PC download requirements when selecting the order configuration.

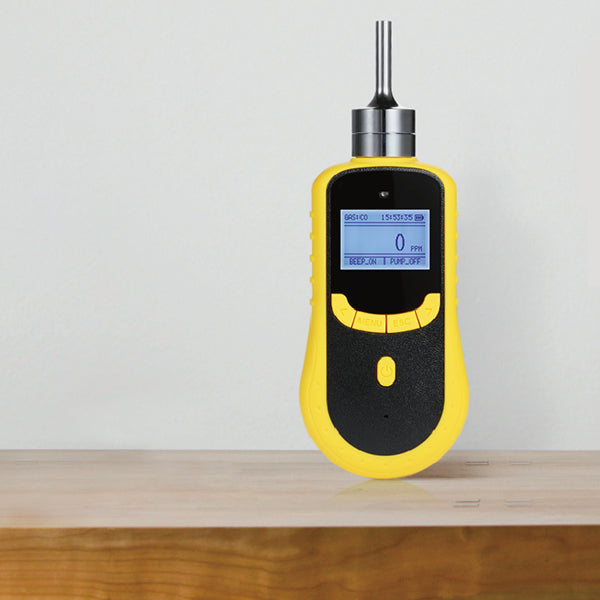

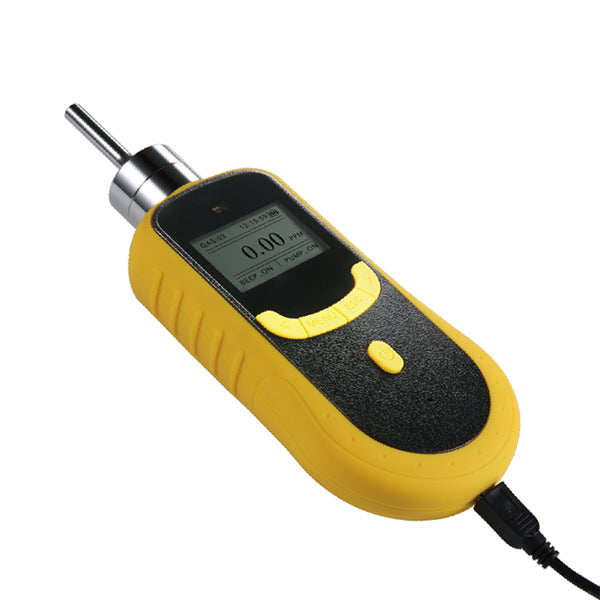

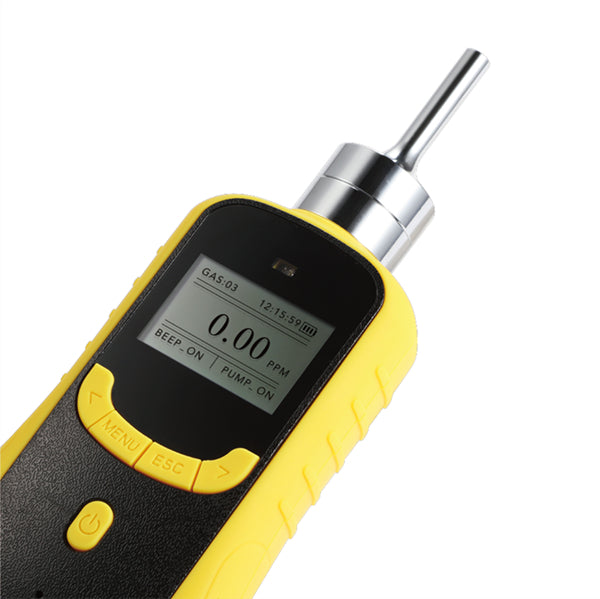

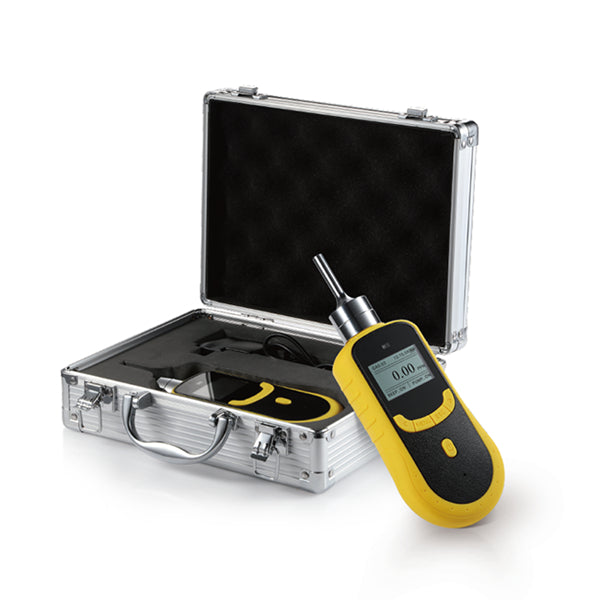

The standard package contains the detector, carrying case, charging/data cable and instruction manual. A supplied cable does not include the optional recording function by itself. Gallery photographs illustrate the shared pump-detector housing and controls; screen readings are illustrative, and the case view does not represent two supplied instruments.
