Bench Power Supply CV vs CC: Set Voltage and Current Limits Correctly
On this page
Quick answer: In constant-voltage (CV) mode, a bench supply holds its selected output voltage while the connected load determines how much current it draws, up to the selected current limit. If the load would demand more than that limit, a CV/CC supply reduces its output voltage and regulates current instead: constant-current (CC) mode. Set a safe voltage and a suitable current limit before connecting a known low-voltage load. A CC indicator can mean the limit is doing exactly what you asked, or that the load or setting needs investigation.
CV and CC describe the operating point
Two front-panel settings do not mean the supply will deliver both numbers simultaneously. Imagine a resistive 12-ohm test load, a 12 V voltage setting and a 2 A current limit. By Ohm's law, the load would draw about 1 A, so the supply can stay near 12 V in CV mode. Change the limit to 0.5 A while leaving the load and voltage setting unchanged. A suitable CV/CC supply now reduces output voltage to roughly 6 V to hold the current near 0.5 A. The actual output is constrained by the load and the two settings, within the instrument's regulation and accuracy limits.
The University of Colorado electronic measurements lab uses this same voltage-source versus current-source distinction: the supply changes mode as the load and limits change. The Berkeley CV/CC lab explanation likewise shows that a current limit is a boundary, not a promise that every load receives the set current.

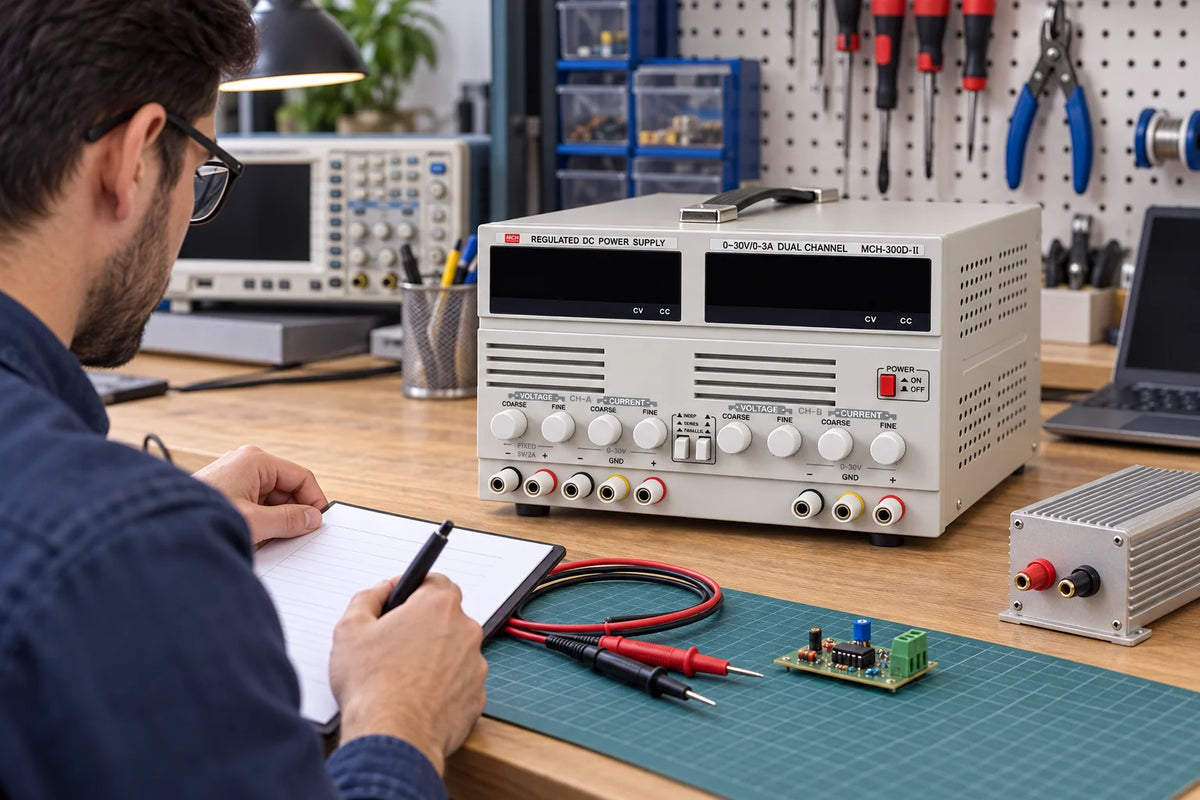

The live Mcooh 300D-II dual-output listing explicitly states automatic CC/CV switching. That supports discussing the mode behavior for this listing. It does not establish a universal response time, transient limit, or battery-charge algorithm for every bench supply in the catalog. Check the manual for the model on your bench when those details matter.
What changes when the load reaches the current limit
On a resistive load, the boundary is simple: the current implied by the chosen voltage and resistance reaches the selected current limit. Real circuits are more complicated. A board may draw extra current while capacitors charge, a motor may draw startup current, and a faulted board may pull the supply into CC immediately. Watch the actual voltage and current readings, not only the settings or a mode light.
If a supply is in CC unexpectedly, first check the programmed current limit. A cautious limit may be intentionally low for first power-up. Then check the wiring, polarity and the load's expected current at the chosen voltage. A short circuit is one possibility, but the CC indicator alone cannot diagnose it. Disconnect or de-energize in accordance with the equipment instructions before changing wiring or probing a suspected fault. A current limit can reduce sustained fault current; it should not be described as complete protection against every startup pulse, miswire or damage mechanism.
If the circuit cannot function below a certain voltage, CC operation may cause it to reset or behave erratically. For example, setting a 12 V board to a 12 V target but limiting it to less than its normal startup current may leave the output at a lower voltage. Raising the limit blindly is a poor diagnostic step. Determine the board's permissible inrush and normal current from its design data, then decide whether the instrument and the circuit can be tested together safely.
Set up a low-voltage bench test
Start with a documented load, such as an approved test resistor or a circuit whose nominal supply voltage and expected current are known. Confirm the supply is suitable for the required voltage, current and power, including startup conditions. Set the output disabled if the instrument offers that control. Inspect the test leads, terminal polarity and whether any output is earth-referenced or floating; channel wiring differs between instruments.
- Choose the voltage required by the device or test plan. Do not substitute the supply's maximum rating for the device's intended voltage.
- Set the current limit high enough for normal operation but within the device, wiring and test procedure's allowed range. The limit is a ceiling, not a target current in CV mode.
- Check the displayed settings before connecting the load. Some instruments show set values separately from actual output values; identify which view is active.
- Connect the load with output disabled or power off as directed by the manual. Confirm polarity and secure connections, then enable output under observation.
- Record actual voltage, actual current and CV/CC indication at idle, startup and steady operation. Stop if the behavior exceeds the test plan.
The Mcooh K300D listing describes an adjustable 0–30 V family with voltage and current presets. Presets are useful when preparing a repeatable test, but the specific variant's current capability and actual loaded output still need checking. A four-digit display or fine control is not proof that a supply will meet every required tolerance at the load terminals.
Current limit, output power and load behavior
Voltage and current ratings must be read together. A load that needs 24 V at 3 A nominally requires 72 W at its terminals, before accounting for transients, cable drop or any margin defined by the design. A supply rated for 30 V but only 2 A is inadequate for that steady operating point. Conversely, a 10 A nameplate does not force 10 A into a correctly operating load; in CV mode the load draws what its circuit calls for up to the limit.
At lower voltages, the current limit can still matter. Suppose an approved 5-ohm test resistor is powered from a 10 V setting: ideal current is 2 A, with 20 W dissipated in the resistor. The resistor must itself have an adequate power rating and thermal arrangement. Selecting a 1 A current limit would move the supply into CC and lower the output voltage toward 5 V, making resistor power about 5 W in the ideal example. These figures are teaching calculations, not instructions to short outputs or create an unprotected test load.
Battery charging is a different application. Some supply listings mention a CC-then-CV charging use case, but battery chemistry also requires suitable voltage limits, charge termination, temperature rules and protection. A general bench supply is not automatically a complete charger for a particular battery pack. Use a battery-specific approved procedure and the relevant battery maker's limits before applying a bench supply to cells or packs.
Choose a supply for the real load
Write down voltage range, normal and startup current, power, number of independent outputs, allowable ripple and noise, programming or logging needs, protection features and local mains compatibility. A repair bench may value fine adjustment and a visible current limit. A multi-rail prototype may need more than one independently controlled output. A repetitive production test may need programmable settings and a documented procedure. These needs should drive the shortlist, not a single maximum voltage number.
For a higher-current single-bench option, the K3010DN product listing describes a 30 V, 10 A adjustable supply with fine control and voltage/current presets. Check the actual variant and manual for the intended operating point. The Mcooh power-supply collection lets you compare this type of unit with dual-output and programmable choices. Choose the unit whose documented output, channel behavior and controls match your load and workflow.
FAQ
Does setting 2 A mean the supply always pushes 2 A?
No. In CV mode, the load determines the current up to the limit. A 2 A limit on a 1 A load means there is room for that load to operate without entering CC.
Why did voltage fall when I connected the circuit?
The load may have demanded more than the current limit, causing CC operation. Lead resistance, connections, inrush, an incorrect setting or a fault may also contribute. Compare the actual current and mode indication with the circuit's expected behavior before changing the limit.
Can I use CC mode to charge any battery?
No. A compatible battery charging process needs chemistry-specific voltage, current, temperature, termination and protection requirements. Do not assume a bench supply's current limit covers all of them.
For a Mcooh bench-supply shortlist, start with the load's documented voltage, steady and startup current, then compare controls and output arrangements. Make the first powered test an observed measurement with the chosen model's manual and the device-under-test limits at hand.
