Description

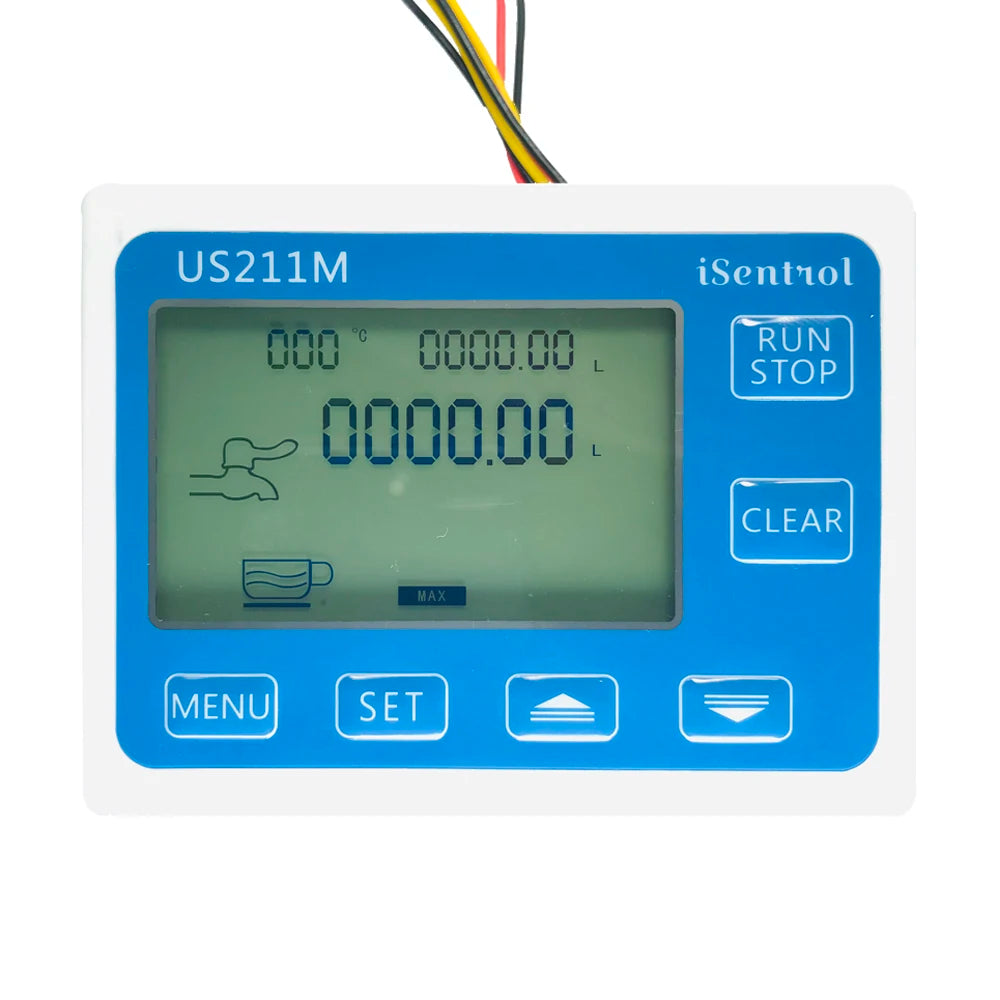

Digital Flow Meter: US211M Hall Sensor Reader (24V)

Accurate and Efficient Flow Management

The US211M Hall Water Flow Sensor Reader is designed to provide accurate and efficient flow measurement for various applications. Utilizing advanced single-chip microcomputer technology, this system features an ultra-thin design and a dynamic LCD display to ensure clear and reliable readings. Compatible with all Hall effect water flow sensors, the US211M reader is ideal for integration into fluid management systems across multiple industries, including petroleum, chemical, pharmaceutical, and food processing.

Key Features

  • Advanced Technology: Incorporates single-chip microcomputer technology for precise control and measurement.
  • Versatile Compatibility: Works seamlessly with all Hall effect water flow sensors, providing flexibility for various applications.
  • Dynamic LCD Display: Features a large, white backlit LCD screen for easy readability and digital clarity.
  • Flexible Power Options: Supports a wide range of external power supplies for enhanced versatility.

Specifications

Specification Details
Operating Voltage Range DC 24V ±8V/1A
Solenoid Valve Voltage DC12V / 0.3A-0.5A (Normally closed)
Flow Probe Voltage DC5V (1-400Hz)
Quantitative Range 0.1-9999 L (K value max: 1-9999 L/min)

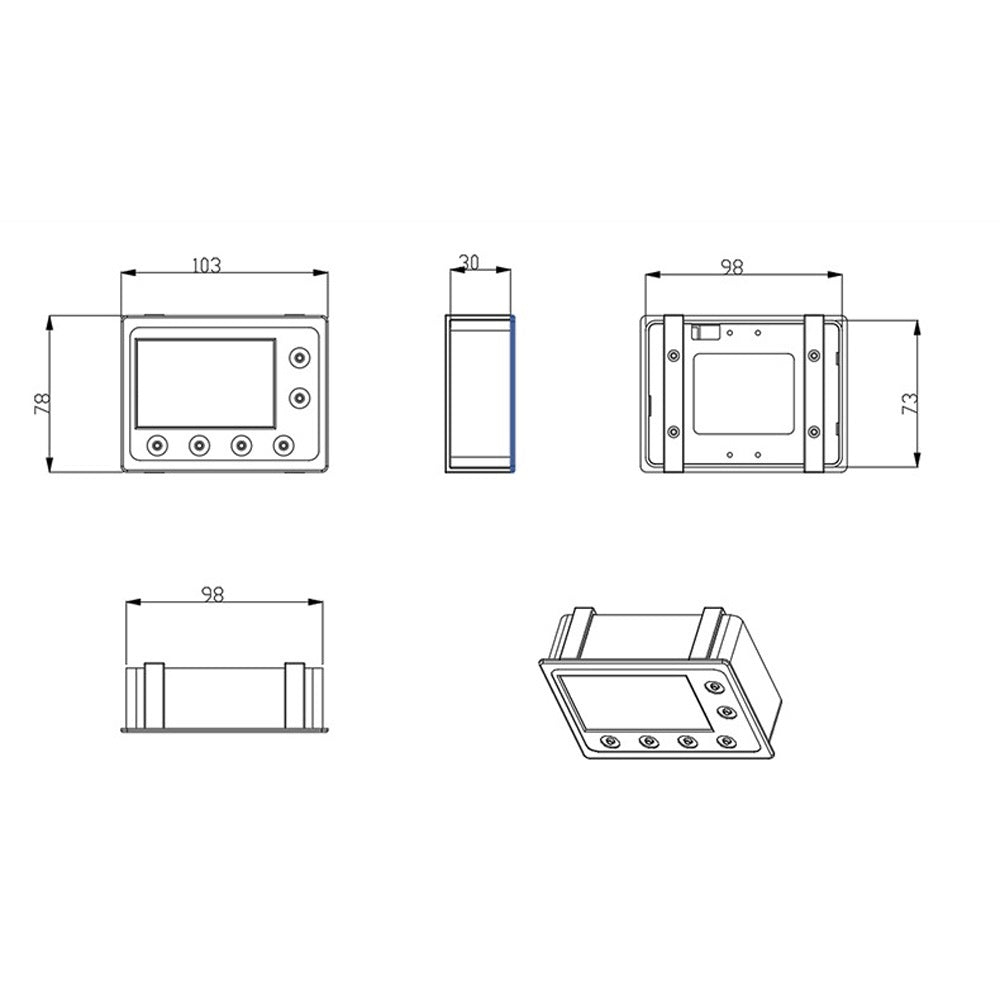

Size 103 x 80 x 35 mm

What's in the Box

  • 1 x US211M Digital Display
