Description
Description
Measure nitric oxide with the MH2000-NO flue-gas-specific detector, available in four ranges from 0-500 to 0-5000 ppm. This portable, single-gas instrument uses an electrochemical sensor and an internal sampling pump. Its High Performance sensor configuration is intended for flue-gas NO measurement and includes interference resistance for that application.
Flue-Gas Configuration and Range Selection
Choose 0-500, 0-1000, 0-2000 or 0-5000 ppm when ordering. One detector is supplied with the selected measuring span. The interference-resistant configuration does not establish complete immunity to every interfering gas, and the instrument measures NO rather than total nitrogen oxides.
This product uses the flue-gas-specific sensor configuration. The separate High Performance NO options designated unsuitable for flue-gas environments serve a different application. Select the sensor configuration first, then the measuring span required by the procedure.
Sampling Arrangement
The instrument has up to 1 L/min pump flow with ten adjustment settings. Probe temperature capability, filters and drying accessories are separate sampling-package choices. The detector's operating temperature is -20°C to 50°C; this value is not a rated temperature for a probe in a hot flue. Choose the sampling arrangement for the application before ordering.
The housing weighs 300 g and measures 205 x 75 x 32 mm. A rechargeable lithium-polymer battery powers the instrument. Data logging and USB export are optional and excluded from this base configuration.
Specifications
| Item | Specification |
|---|---|
| Model | MH2000-NO |
| Detected gas | Nitric oxide (NO) |
| Sensor principle | Electrochemical |
| Configuration | High Performance, flue-gas-specific, single-gas |
| Measuring range options | 0-500, 0-1000, 0-2000 or 0-5000 ppm |
| Interference resistance | Interference-resistant sensor configuration for flue-gas NO measurement |
| Sampling package | Application-specific probe, filter and drying accessories are separate choices |
| Sampling method | Internal sampling pump |
| Pump flow | Up to 1 L/min |
| Pump adjustment | 10 settings |
| Display | LCD dot matrix; gas type, concentration, unit, battery level and time |
| Operating languages | English and Chinese |
| Concentration units | μmol/mol / ppm / mg/m³; 1 μmol/mol = 1 ppm |
| Alarm outputs | Sound, light and vibration |
| Alarm stages | Two |
| Alarm setpoints | User adjustable |
| Sound alarm | 85 dB |
| Alarm lights | Blue for low alarm; red for high alarm |
| Measurement compensation | Temperature and pressure compensation |
| Instrument controls | Self-check, zero calibration and factory reset |
| Battery | 3.6 V, 2300 mAh rechargeable lithium polymer |
| Charging time | 4-6 hours |
| Operating temperature | -20°C to 50°C |
| Operating humidity | 0-95% RH, non-condensing |
| Protection rating | IP65 |
| Dimensions | 205 x 75 x 32 mm |
| Instrument weight | 300 g |
| Data recording / PC export | Optional; excluded from this base configuration |
Readings and Instrument Controls

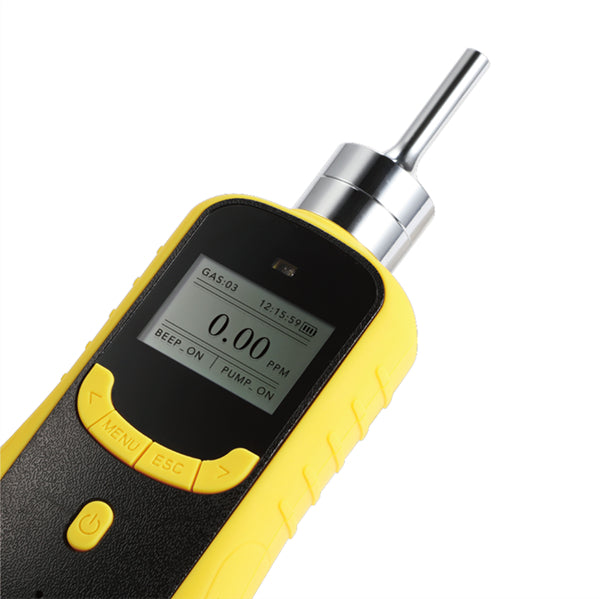

The LCD dot-matrix display shows the gas type, concentration, unit, battery level and time. English and Chinese interfaces are available, and units include μmol/mol, ppm and mg/m³. Two adjustable alarm stages use sound, light and vibration, including an 85 dB sound alarm and blue/red lights.

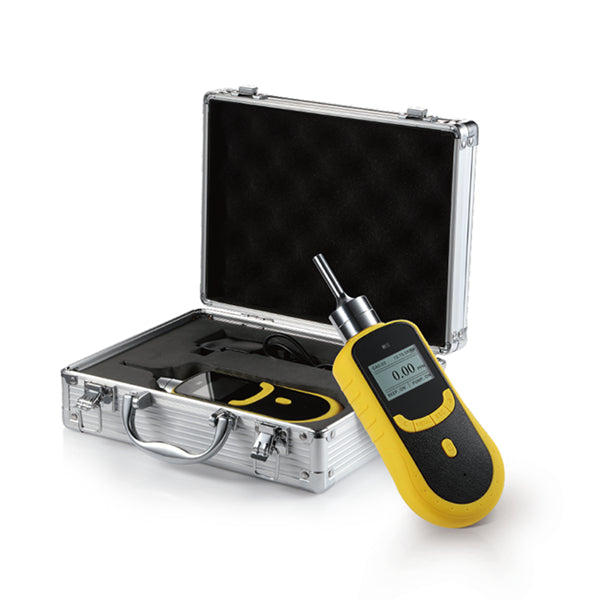

Temperature and pressure compensation, self-check, zero calibration and factory reset are included. Operate the selected version according to its supplied instructions and sampling procedure. Gallery images show the shared housing; the case photograph does not represent a two-instrument package or establish included sampling probes.
