Description
Description
The MH2000-CxHy is a portable PID hydrocarbon detector with an internal sampling pump and a choice of PPM or PPB sensor configuration. PPM options cover 0-100, 0-200, 0-1000, 0-2000 and 0-3000 ppm. PPB options cover 0-10 and 0-50 ppm with 0.001 ppm (1 ppb) resolution.
PID Measurement and Range Selection
Photoionization detection responds to compounds that can be ionized by the installed lamp. A hydrocarbon-vapor reading therefore depends on the compounds present, the lamp configuration and the calibration basis. For a specific compound or known mixture, confirm target compatibility and the appropriate calibration basis before ordering.
When several detectable compounds are present, the displayed result reflects their combined PID response. The instrument does not identify the individual components of a mixture. Interpret readings using the calibration and response information appropriate to your target vapor.
Choose the sensor configuration and one measurement range when ordering. The PPB configuration provides 0.001 ppm reading increments for its two lower concentration ranges. PPB identifies the sensor configuration; the range values are expressed in ppm. Resolution describes the reading increment and is distinct from measurement accuracy or a detection limit.
Each detector is supplied with its selected configuration and full scale. Select a range that covers your expected concentrations and suits the reporting requirements of your procedure.
| Sensor configuration | Ordering ranges | Reading resolution |
|---|---|---|
| PPM | 0-100, 0-200, 0-1000, 0-2000, 0-3000 ppm | Range-dependent |
| PPB | 0-10, 0-50 ppm | 0.001 ppm (1 ppb) |
Sampling and Alarm Controls

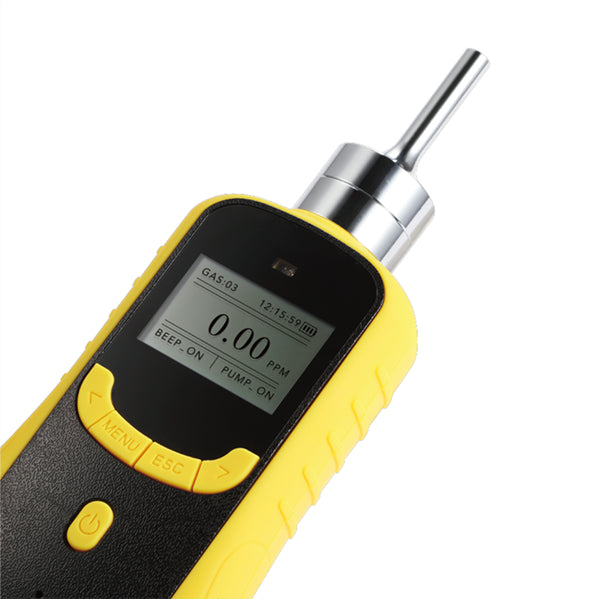

Adjust the internal pump through ten suction settings, with a maximum flow of 1 L/min. The LCD dot-matrix display shows gas type, concentration, unit, battery status and time, with English and Chinese interface options.
Two alarm stages have adjustable set points. Sound, light and vibration provide alarm indications, including an audible alarm rated at 85 dB. Temperature and pressure compensation, self-check, zero calibration and factory reset controls support instrument setup. Follow the supplied instructions for calibration, checks and alarm handling.
Specifications
| Item | Specification |
|---|---|
| Model | MH2000-CxHy |
| Measurement configuration | CxHy hydrocarbon vapors detectable by the configured PID |
| Sensor principle | Photoionization detection (PID) |
| Sensor configuration | PPM or PPB, selected when ordering |
| Measurement range options | PPM: 0-100/200/1000/2000/3000 ppm; PPB: 0-10/50 ppm |
| PPB reading resolution | 0.001 ppm (1 ppb), for 0-10 and 0-50 ppm PPB configurations |
| Sampling method | Internal pump |
| Maximum pump flow | 1 L/min |
| Pump adjustment | 10 suction settings |
| Display | LCD dot-matrix display |
| Displayed information | Gas type, concentration, unit, battery status and time |
| Interface languages | English and Chinese |
| Alarm indications | Sound, light and vibration |
| Audible alarm | 85 dB |
| Alarm stages | Two stages with adjustable set points |
| Measurement compensation | Temperature and pressure compensation |
| Instrument controls | Self-check, zero calibration and factory reset |
| Battery | 3.6 V, 2300 mAh rechargeable lithium-polymer |
| Charging time | Approximately 4-6 hours |
| Operating temperature | -20 to 50 Degree C |
| Operating humidity | 0-95% RH, non-condensing |
| Ingress protection | IP65 |
| Housing material | Engineering plastic |
| Dimensions | 205 x 75 x 32 mm |
| Approximate instrument weight | 300 g |
| Data functions | Data logging and PC export optional; excluded from base configuration |
Charging and Supplied Package

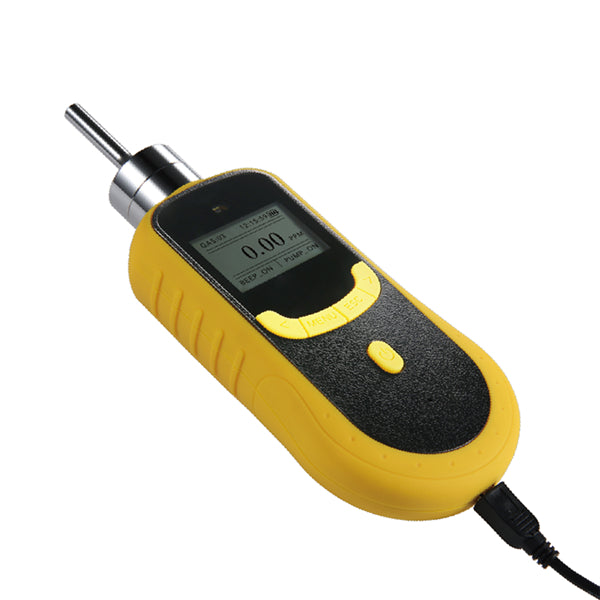

The detector uses a 3.6 V, 2300 mAh rechargeable lithium-polymer battery. Charging takes approximately four to six hours. The engineering-plastic housing is rated IP65 and measures 205 x 75 x 32 mm; instrument weight is about 300 g.
Supplied items are one detector, a charging/data cable, an instruction manual and an aluminum carrying case. Data logging and PC export are optional and excluded from this base configuration.

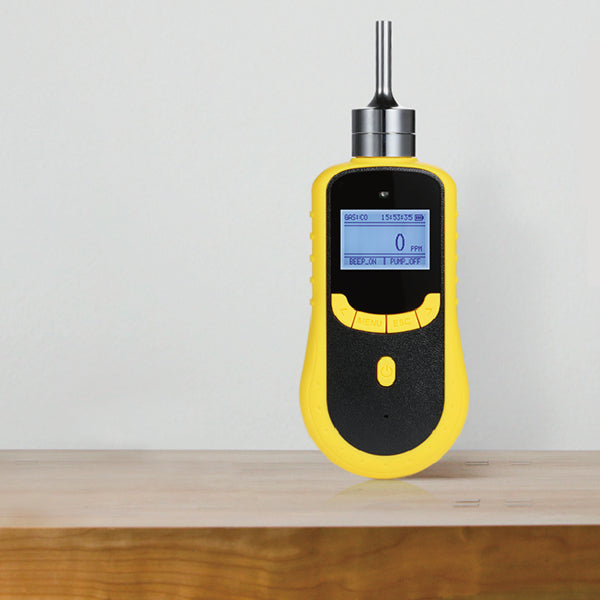

Images show the shared series housing. Demonstration screen labels and readings may differ from the supplied CxHy configuration, and the carrying-case photograph does not indicate a two-detector package.
