MH-1200H-S-CL2 Chlorine Gas Detector — Four ppm Options
MH-1200H-S-CL2 Chlorine Gas Detector — Four ppm Options - 0-10 ppm In stock. Shipping calculated at checkout.
In-stock orders usually take 2–4 business days to prepare; delivery typically takes 5–15 business days after dispatch. Availability is confirmed at checkout. Duties and taxes may apply. Shipping details · Return conditions
Need help choosing? Tell us what you need to measure.
Shipping & returns
Shipping & returns
See our shipping policy for preparation and delivery information, and our return policy for return conditions.
For a delivery estimate to your destination, contact Mcooh.
Choosing the right instrument?
Tell us your measurement range, material or target, and operating conditions.
Description
Description
The MH-1200H-S-CL2 measures chlorine gas using diffusion sampling. Four current order variants provide 0-10, 0-20, 0-50 and 0-100 ppm spans. Match the Cl2 gas measurement requirement and selected range; this is a different task from measuring chlorine in water.
Choose the Configuration for Your Measurement
- Gas: Chlorine gas (Cl2), not dissolved-chlorine water measurement.
- Range menu: Four separate ppm variants; the selected SKU identifies the supplied span.
- Sampling: Diffusion is the stated method. Confirm an external-pump package separately if the procedure requires it.
Order Options
| Select an option | SKU |
|---|---|
| 0-10 ppm | GAS-Q9C4-01 |
| 0-20 ppm | GAS-Q9C4-02 |
| 0-50 ppm | GAS-Q9C4-03 |
| 0-100 ppm | GAS-Q9C4-04 |
Open an option to review its current price and purchase controls. Each option is a separate order configuration; use the selected product and SKU when confirming the supplied package.
Product Details and Specifications
The MH-1200H-S-CL2 is a portable chlorine (Cl2) gas detector for site checks that call for a concentration reading at the instrument. Its electrochemical sensor measures surrounding air by diffusion, and the rear clip and protective cover support carrying the detector during inspection rounds. Choose the required CL2 range when ordering; each range is a separate instrument configuration.
Choose a Chlorine Range
The four available measurement spans are 0-10, 0-20, 0-50, and 0-100 ppm. Select the range that matches your monitoring procedure and expected concentration span. The standard instrument uses diffusion sampling. An external sampling pump is an optional setup for tasks that require a different sampling arrangement; confirm that configuration before ordering.
Display and Alarm Review
The monochrome dot-matrix LCD displays the concentration and supports ppm and mg/m³ units. Backlight timing can be adjusted, and the light can activate automatically during an alarm. Audible, visual, and vibration alerts provide three ways to notice an alarm; the audible alarm is rated at 85 dB. Alarm thresholds are configurable, and the instrument can retain 100 alarm records for review on its display. Zero and self-calibration functions are available.
Technical Specifications
| Model | MH-1200H-S-CL2 |
|---|---|
| Measured gas | Chlorine (Cl2) |
| Sensor principle | Electrochemical |
| Sampling method | Diffusion; external pump setup optional |
| Range configurations | 0-10 ppm; 0-20 ppm; 0-50 ppm; 0-100 ppm |
| Display | 128 x 64 monochrome dot-matrix LCD |
| Concentration units | ppm and mg/m³ |
| Alarm modes | Sound, light, and vibration |
| Audible alarm | 85 dB |
| Alarm history | 100 records, viewable on the instrument |
| Backlight | Adjustable timing; automatic activation during an alarm |
| Power | 2300 mAh rechargeable lithium-polymer battery |
| Operating temperature | -20 to 50 Degree C |
| Ingress protection | IP65 |
| Dimensions | 131 x 83 x 35 mm |
| Approximate unit weight | 240 g with protective cover |
Use and Configuration Notes

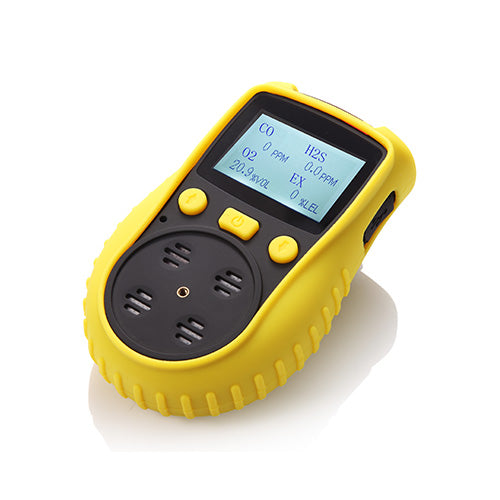

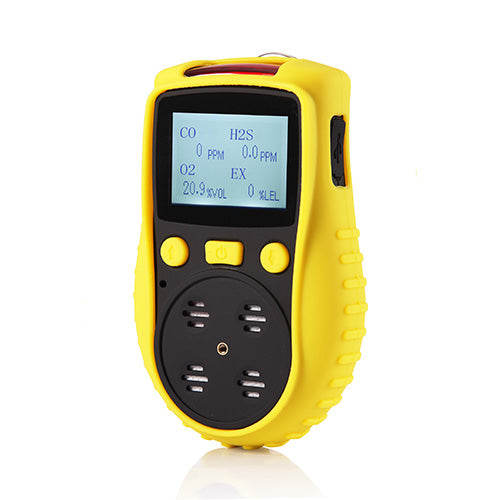

For diffusion sampling, surrounding air must reach the sensor openings. Follow the supplied instructions and your site's procedures for calibration, alarm settings, and gas-monitoring checks. The product photographs show the shared housing used across this model family; gas names on the demonstration screen may differ from the ordered CL2 configuration.
Compare the Relevant Alternative
The pump single-gas family includes a Chlorine (Cl2) sensor option and explicitly describes an internal micro pump. This dedicated MH-1200H-S page offers four Cl2 range choices. Do not transfer those four ranges to the pump family's single Cl2 option.
View the comparison model and its options.
Questions Before Ordering
Is this a chlorine meter for pool or process water?
No water-measurement capability is established here. The product is identified as a Cl2 gas detector.
Does the pump single-gas alternative provide these same four ranges?
The separate pump product has its own Cl2 option and specification table. Compare its actual range instead of inheriting this page's range menu.
Selection and Use Guides
- Pumped vs diffusion gas detectors
- Gas sensor cross-sensitivity
- Browse gas detectors by gas and measurement task
Selection note: Follow the supplied instrument instructions and the applicable site procedure. This product comparison does not replace a site-specific risk assessment.
