This portable combustible gas detector uses catalytic combustion sensing to measure flammable gas over a 0-100% LEL range. The MH-1200H-S-EX samples surrounding air by diffusion and offers two sensor performance configurations: Standard and High Performance. Both use the same compact housing with a rear clip and protective cover.
Choose the Catalytic Sensor Configuration
Select the performance option for the gases and conditions in your monitoring procedure. Standard provides the conventional catalytic configuration and is not recommended for diesel or acetylene environments. High Performance uses a poisoning-resistant catalytic sensor and supports combustible gas monitoring in diesel and acetylene environments. Both options are supplied with the 0-100% LEL measurement range. The performance configuration is selected when ordering.
LEL Display and Alarm Handling
The 128 x 64 monochrome LCD shows gas information and concentration. Sound, light and vibration provide alarm indications, with an 85 dB audible alarm and configurable set points. Backlight timing can be adjusted through the controls, and the display illuminates automatically during an alarm. The instrument stores 100 alarm records that can be reviewed on its screen. Zero calibration, self-calibration, battery status checks and a factory reset function are available through the instrument controls.
Technical Specifications
| Model | MH-1200H-S-EX |
|---|---|
| Measured gas | Combustible / flammable gas (Ex) |
| Sensor principle | Catalytic combustion |
| Sampling | Diffusion |
| Measurement range | 0-100% LEL |
| Performance options | Standard; High Performance |
| Display | 128 x 64 monochrome LCD |
| Alarm modes | Sound, light and vibration |
| Audible alarm | 85 dB |
| Alarm settings | Configurable set points |
| Alarm history | 100 records viewable on the instrument |
| Backlight | Adjustable timing; automatic illumination during an alarm |
| Battery | 2300 mAh rechargeable lithium-polymer |
| Operating temperature | -20 to 50 Degree C |
| Ingress protection | IP65 |
| Dimensions | 131 x 83 x 35 mm |
| Approximate instrument weight | 240 g including protective cover |
Carrying and Measurement Notes
Diffusion sampling measures air at the sensor inlet. Keep the inlet exposed to the air being checked and follow the instrument instructions and monitoring procedure for calibration, pre-use checks and alarm settings. Confirm that the selected sensor configuration and calibration are appropriate for the gas being measured.

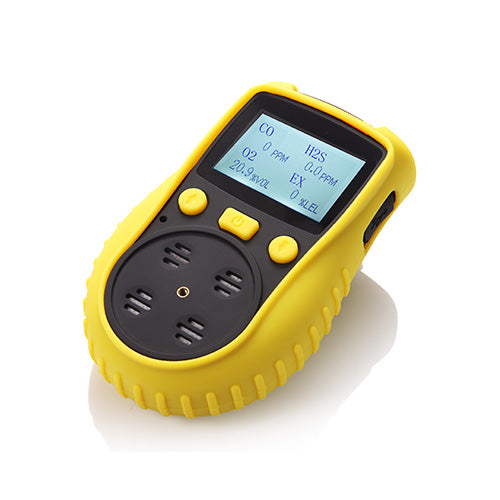

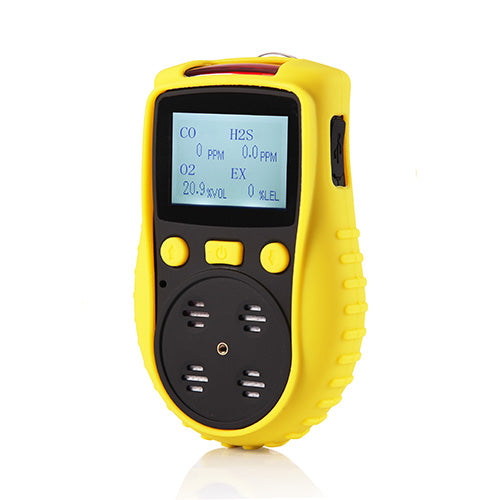

A rechargeable 2300 mAh lithium-polymer battery powers the detector. The housing measures 131 x 83 x 35 mm, and the instrument weighs approximately 240 g including its protective cover. Product photos illustrate the housing shared across this series; gas labels on the demonstration screen may differ from the selected Ex configuration.
