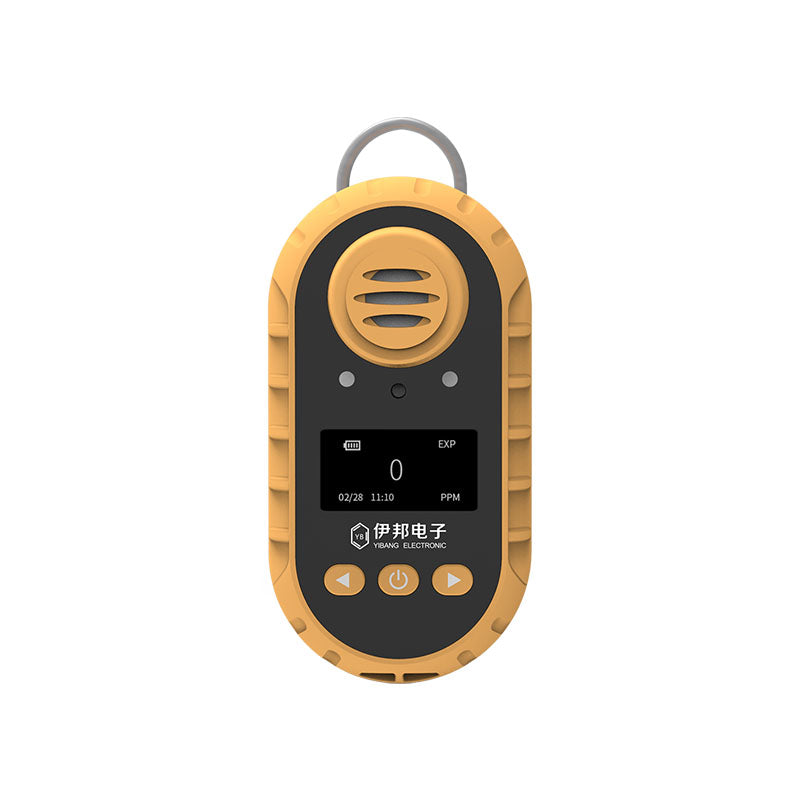

The portable single gas detector monitors one selected gas through diffusion sampling. Its compact 0.15 kg ABS housing, 1.3-inch OLED display and rechargeable battery support portable checks in industrial, facility and field environments where a known gas hazard must be monitored.
Key Features
- Configured with one selected gas sensor for focused monitoring
- Audible, visual and vibration alarms with sound pressure above 90 dB
- 1.3-inch OLED screen shows concentration, gas type, unit, battery level and time
- Chinese and English interface options
- Diffusion sampling without an internal pump
- At least 24 hours of use time from the rechargeable 3.7 V lithium-ion battery
- IP66 ABS housing with Ex ib IIC T4 Gb explosion protection
Technical Specifications
| Detection format | Single selected gas |
|---|---|
| Sampling method | Diffusion |
| Linear accuracy | ±5% F.S. |
| General response time | <10 s |
| Alarm modes | Audible, visual and vibration |
| Display | 1.3-inch OLED |
| Power | 3.7 V rechargeable lithium-ion battery |
| Use time | At least 24 hours |
| Operating temperature | -35 to 65 °C |
| Operating humidity | 5-95% RH, non-condensing |

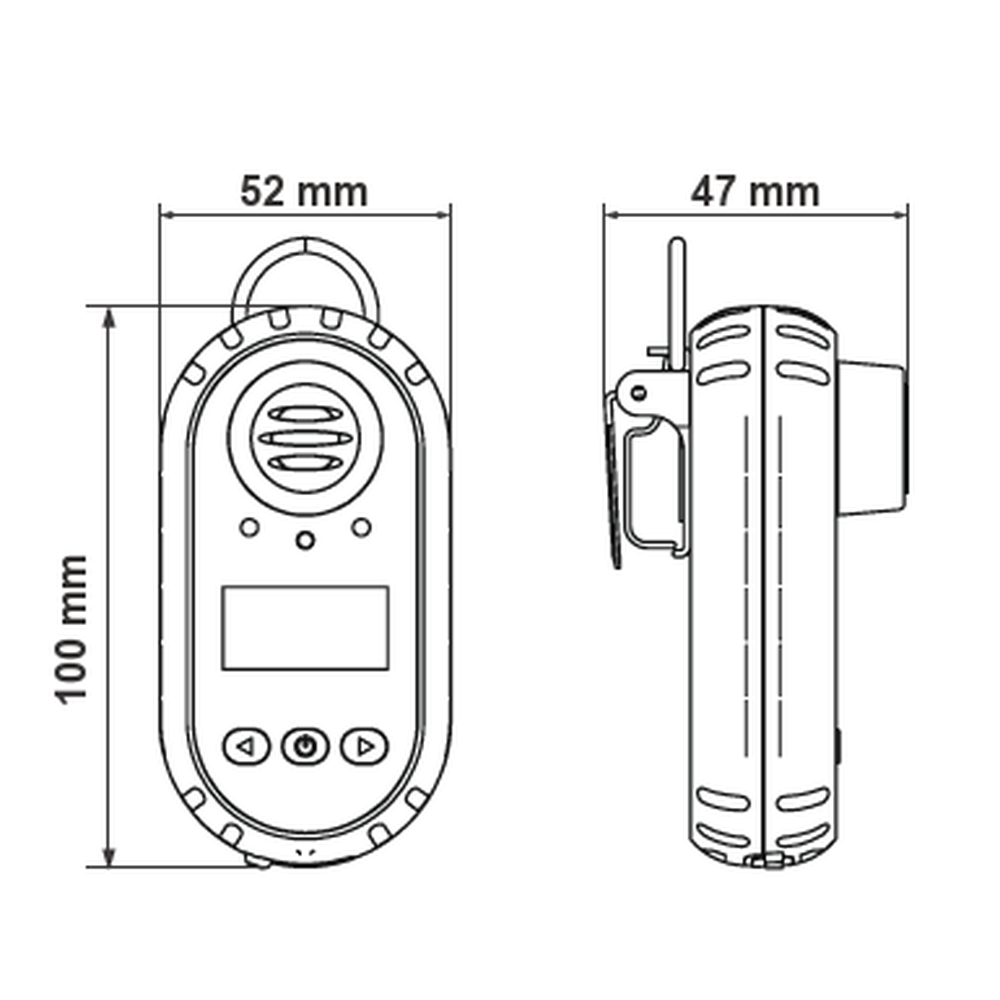

| Dimensions | 100 x 52 x 47 mm (H x W x D) |
| Approximate weight | 0.15 kg |
| Housing / protection | ABS / IP66 |
| Explosion protection | Ex ib IIC T4 Gb |
Gas Options, Ranges & Sensor Response
The instrument’s general response specification is less than 10 seconds. Sensor-specific maximum response figures vary by gas configuration and are listed below.
| Gas | Range | Accuracy | Minimum Reading | Maximum Sensor Response |
|---|---|---|---|---|
| Oxygen (O2) | 0-30% vol | ±5% F.S. | 0.1% vol | ≤20 s |
| Combustible Gas (LEL) | 0-100% LEL | ±5% F.S. | 1% LEL | ≤15 s |
| Carbon Monoxide (CO) | 0-1000 ppm | ±5% F.S. | 1 ppm | ≤25 s |
| Hydrogen Sulfide (H2S) | 0-100 ppm | ±5% F.S. | 1 ppm | ≤30 s |
| Sulfur Dioxide (SO2) | 0-100 ppm | ±5% F.S. | 0.1 ppm | ≤30 s |
| Nitric Oxide (NO) | 0-250 ppm | ±5% F.S. | 1 ppm | ≤60 s |
| Nitrogen Dioxide (NO2) | 0-20 ppm | ±5% F.S. | 0.1 ppm | ≤25 s |
| Chlorine (Cl2) | 0-20 ppm | ±5% F.S. | 0.1 ppm | ≤30 s |
| Ammonia (NH3) | 0-100 ppm | ±5% F.S. | 1 ppm | ≤50 s |
| Hydrogen (H2) | 0-1000 ppm | ±5% F.S. | 1 ppm | ≤60 s |
| Hydrogen Cyanide (HCN) | 0-50 ppm | ±5% F.S. | 0.1 ppm | ≤200 s |
| Hydrogen Chloride (HCl) | 0-30 ppm | ±5% F.S. | 0.1 ppm | ≤60 s |
| Phosphine (PH3) | 0-1000 ppm | ±5% F.S. | 0.1/1 ppm | ≤25 s |
| Ozone (O3) | 0-20 ppm | ±5% F.S. | 0.1 ppm | ≤50 s |
Selection & Use Notes
Select the gas type and measurement range to match the intended hazard and site procedure. Because the instrument uses diffusion sampling, the target gas must reach the sensor opening. Alarm settings, calibration and operating checks should follow the configured sensor documentation and the safety procedures for the workplace.
