Clamp Meter Jaw Size Selection: Fit the Conductor and the Space
On this page
Quick answer: Choose a clamp meter jaw size from the whole measurement location: the insulated conductor or flat bar, the space needed to get the head around it, and room for the jaws to close completely. Then check current type, range, resolution, waveform response, and the instrument's installation ratings. A larger opening alone cannot make a clamp suitable for a higher current or a more hazardous electrical environment.
Why the jaw opening is only one dimension
A rigid clamp has an inside opening, an outside head width and depth, and a route by which the head reaches the target. A 40 mm cable may fit inside a 50 mm opening on a table, yet be inaccessible behind a barrier or between neighboring phases in a real cabinet. A flat busbar may need a particular jaw shape even when its cross-sectional area looks small. Use the outside diameter including insulation for round cables; do not size from conductor metal area or wire gauge alone.
For an ordinary load-current measurement, the clamp normally surrounds one identified conductor. OSHA's field memo on clip-on current meters describes measuring current without disconnecting the circuit by placing the probe around an insulated wire. That convenience still requires suitable access. Surrounding an entire multi-conductor power cable can cancel opposing currents and answer a different question from measuring one phase or line. A leakage-current task may intentionally use a different conductor grouping and a more sensitive meter.
The jaw must close in the manner stated by its manual. A near-fit that leaves the core partly open is not a usable size. Nor should a buyer plan to move energized conductors, remove protection, or force an instrument through a gap just to make a chosen model work.
Measure the whole access path
Before comparing meters, make a location worksheet from drawings, deenergized access checks, or an approved mockup. Record the largest insulated diameter or bar width and thickness, space on both sides, nearby conductors, the direction the head must enter, and the hand position needed to operate it. The smallest passage on the approach can control the selection even when the final measurement point has plenty of room.
| Field item | Record this | Why it matters |
|---|---|---|
| Round conductor | Outside diameter with insulation and any sleeve | Inside jaw opening must enclose the actual object |
| Flat conductor | Bar width, thickness, orientation, and nearby gaps | Round-opening and flat-bar fit may differ |
| Approach | Opening through which the head enters and turns | The outside head can be larger than its inside aperture |
| Closure | Space for the jaw tips to meet and sensor to align | Partial closure can invalidate the intended reading |
| Position | Permitted conductor location inside the jaw | Accuracy conditions may assume a defined position |
Do not substitute a universal percentage of extra jaw clearance for this check. Insulation shape, stiff cables, adjacent hardware, and jaw-arm thickness change the usable fit. If the cabinet arrangement cannot be checked safely before ordering, request dimensions of the entire clamp head and test a nonenergized mockup under the site's procedure.
Compare real jaw sizes by the measurement task
Tight access around a small conductor
Mcooh's ETCR6300 AC leakage-current clamp lists a 25 × 30 mm opening, a low-current range to 60 A, and microampere display resolution. Its smaller head may suit a crowded, accessible single-conductor or defined leakage-check location when the electrical task matches that specialty range. It is not a general 600 A clamp simply because the opening can fit some feeder insulation. Confirm the actual head dimensions, current mode, and model manual before selecting it.
A mid-size rigid jaw example
The ETCR6600 AC clamp page lists a 35 × 40 mm jaw and an AC current range to 600 A. That pairing may suit a different conductor and current envelope from the smaller ETCR6300. It still needs enough surrounding space for the jaws and a reading method appropriate to the conductor, waveform, and current level. The difference between these listings shows why opening dimensions and measuring range are separate fields on the worksheet.
Large round conductors and flat bars

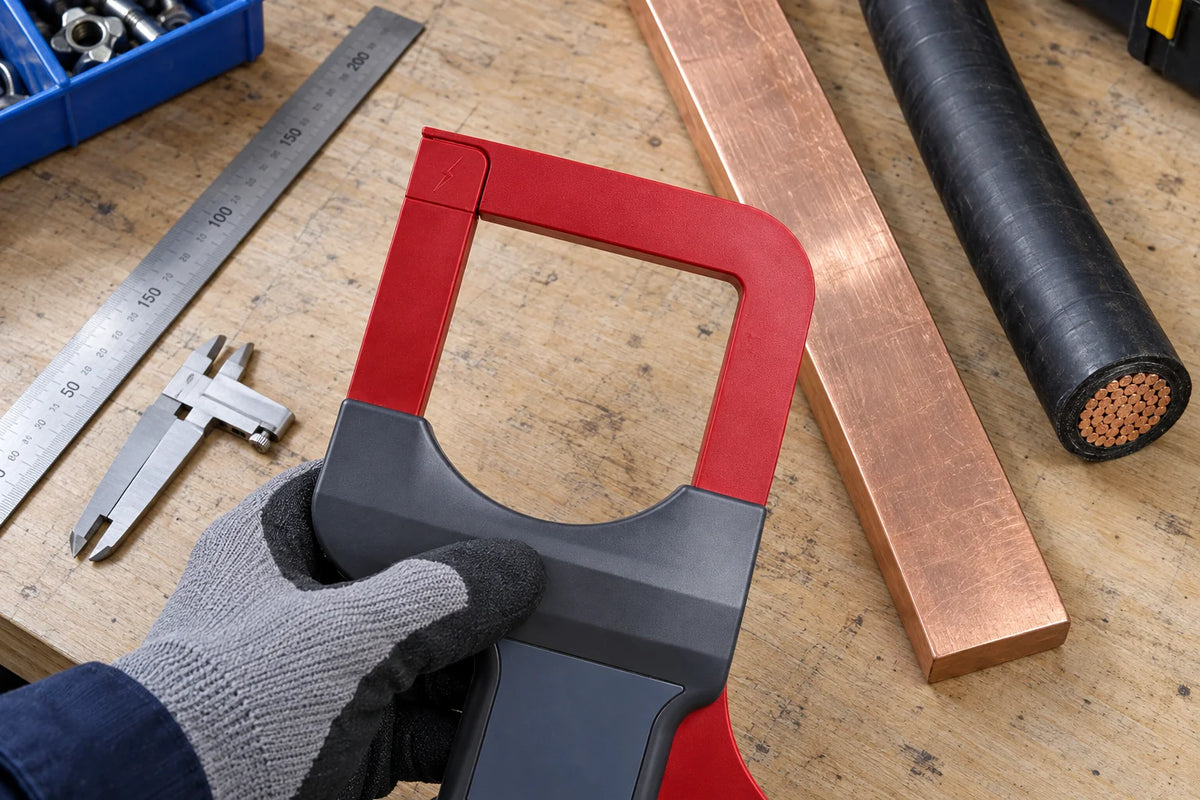

For larger accessible conductors, the ETCR7000B large-jaw AC clamp listing describes an 80 mm class round opening and a separate 96 × 4 mm flat-bar fit, with an AC range to 2500 A. Those dimensions do not mean the head fits every busbar cabinet. Verify the exact jaw drawing, insulation and bar geometry, available approach, and model ratings for the planned installation. The product listing uses slightly different wording for the large jaw dimensions; a physical or manual check should resolve any critical fit decision.
When a flexible loop deserves a look
A flexible current sensor can be easier to route around a large or awkward accessible conductor when a rigid head cannot close. It is a different sensing and handling arrangement, with its own loop length, connector or latch, bend limits, positioning instructions, current type, frequency response, and minimum measurable current. It should be compared as a complete instrument setup, not chosen simply because its loop seems larger.
Flexible access does not permit bundling arbitrary conductors to obtain a load-current reading. Identify the correct single current path or the conductor group required by the approved residual-current method. Confirm how the loop closes and where it may safely be placed. If model documentation is incomplete or inconsistent, defer that model rather than making a safety or accuracy assumption from a product headline.
Keep physical fit and electrical suitability separate
IEC's current-sensor safety standard scope covers hand-held and hand-manipulated sensors used on electrical circuits. The existence of such requirements underscores a practical buying rule: jaw dimensions alone do not establish a suitable measurement category, voltage rating, protective construction, or allowable environment. Check the complete meter, its markings and current manual, the circuit conditions, and the site's procedure.
In US workplaces, OSHA's electrical work-practices rule addresses work on or near equipment that may be energized. A catalog comparison is not authorization to open an enclosure or approach exposed parts. Use qualified personnel and the applicable work plan; deenergize when required. A clamp reading of zero current is not a test proving absence of voltage.
Only after these access and safety questions are resolved should a buyer compare AC versus DC capability, lowest useful range, upper range, True RMS response, frequency limits, logging, and accessories. A large jaw paired with the wrong current mode or insufficient low-current resolution will not answer the measurement question.
Build a jaw-fit shortlist
Use the Mcooh clamp-meter collection to compare current options against the completed worksheet. Ask for a dimensioned jaw drawing or manual whenever the catalog gives only a single opening number. Mark each candidate “fits in an approved access trial,” “needs physical verification,” or “cannot be used at this location,” then evaluate the electrical specifications separately.
- Identify the exact current quantity and conductor arrangement.
- Record outside conductor or bar dimensions and the narrowest access gap.
- Confirm the complete jaw head can enter, surround, and close without moving guarded equipment.
- Check current type, range, resolution, frequency or waveform response, and installation ratings.
- Verify the manual, accessories, current availability, and site work procedure.
Frequently asked questions
Is a larger clamp jaw always better?
No. A larger head may be harder to position in a crowded panel and may belong to a meter designed for a different current range. Choose the smallest suitable complete instrument for the planned conductor and access, while meeting the electrical requirements.
Can I size the jaw from the conductor's AWG or cross-sectional area?
Not reliably. The clamp must fit the actual outside insulation, sleeve, or bar profile, with room to enter and close. Measure that physical assembly rather than inferring it from copper size alone.
Does a jaw that just barely closes provide a trustworthy result?
Only the instrument's specified fit and closure condition can answer that. If the tips cannot close normally, or neighboring conductors prevent the required position, choose another access method or instrument.
Choose from a dimensioned access plan
A conductor sketch and a deenergized fit check can prevent a meter purchase that looks capable on paper but cannot reach the intended point. Bring that plan, expected current, and installation conditions to the model comparison so the final choice fits both the physical space and the measurement.
