Coating Thickness Gauge vs Ultrasonic Thickness Gauge
Quick answer: Use a coating thickness gauge when the target is a compatible coating or paint layer over a known substrate, commonly steel or nonferrous metal. Use an ultrasonic thickness gauge when the target is the wall or total thickness of a material that transmits a usable sound pulse, often with access to only one side. Although both display thickness, they measure different physical paths and require different references.

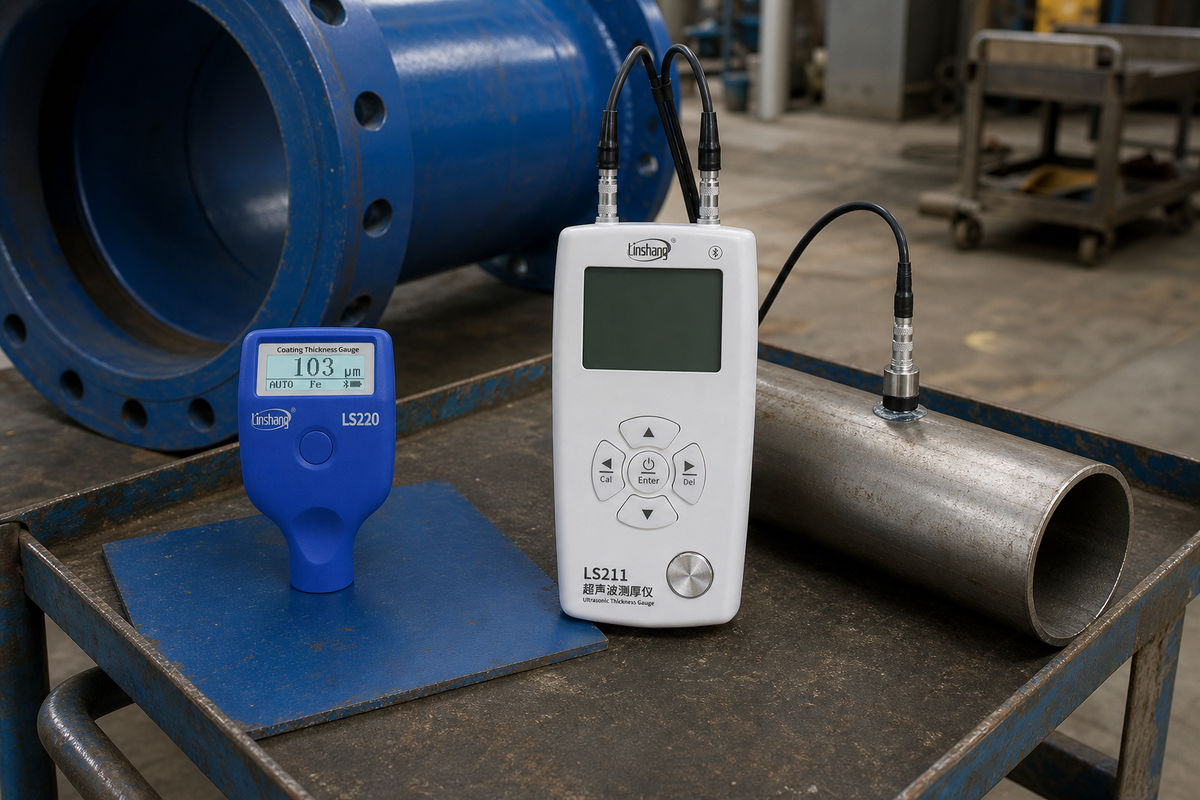

A painted steel pipe illustrates the difference. A magnetic coating gauge may report the dry coating stack above the steel. An ultrasonic gauge may report the remaining steel wall from pulse travel time. A through-coating ultrasonic mode may reduce the coating's influence on the wall result, but it does not automatically report the coating layer itself. The inspection question must come before the instrument.
Start With the Layer You Need to Measure
Before choosing a gauge, define both measurement boundaries:
- Coating question: from the probe face to the compatible metal substrate.
- Material question: from the entry surface to the far wall or another acoustic boundary.
The word thickness is not enough. A 200-micrometre coating and a 6-millimetre steel wall can exist at the same location, but they require different sensors, setup, references, and interpretation. The governing project may also specify whether it needs one reading, a local average, an area sampling plan, minimum remaining wall, or statistical documentation.
What a Coating Thickness Gauge Measures
Electronic coating gauges commonly infer the distance from the probe to a metal substrate. Magnetic methods are used for compatible nonmagnetic coatings on ferrous substrates. Eddy-current methods are used for compatible nonconductive coatings on conductive nonferrous substrates. Dual Fe/NFe instruments contain or combine both approaches.
The result normally represents the total measurable coating stack between probe and substrate. A magnetic or eddy-current reading does not automatically separate primer, topcoat, clear coat, plating, filler, contamination, or individual layers. If layer-by-layer values are required, the project may need before-and-after measurements or another method.
The DeFelsko guide to coating thickness measurement explains the magnetic and eddy-current substrate relationships and notes effects from roughness, curvature, substrate thickness, metal type, and edge distance.
What an Ultrasonic Thickness Gauge Measures
An ultrasonic gauge sends a sound pulse into the test material and measures the time to a returning echo. With the sound velocity for the material and the selected timing mode, it calculates the distance traveled as thickness. Pulse-echo measurement can often work from one accessible side of a pipe, tank, plate, casting, glass part, plastic sheet, or other suitable sample.
The result depends on sound traveling through the material and reflecting from a usable boundary. Couplant helps transfer sound between the probe and surface. Velocity calibration, zero offset, probe selection, surface preparation, temperature, geometry, grain structure, attenuation, and echo selection can influence the reading.
The Evident ultrasonic theory guide describes how the instrument times the pulse and why material sound velocity is necessary. An ultrasonic number is not automatically a corrosion map, flaw assessment, or fitness-for-service conclusion.
Coating vs Ultrasonic Gauge Comparison
| Decision factor | Coating thickness gauge | Ultrasonic thickness gauge |
|---|---|---|
| Primary target | Coating or paint over a compatible substrate | Material wall or total thickness from acoustic time of flight |
| Common methods | Magnetic induction, magnetic pull-off, or eddy current | Pulse-echo ultrasound with a selected transducer |
| Typical access | One coated surface with probe contact | Often one accessible material surface |
| Reference dependency | Substrate, zero plate, foil/shim, coating standard, and method adjustment | Known thickness, material velocity, zero offset, probe, and timing mode |
| Surface needs | Clean area with suitable geometry and compatible substrate response | Surface that can couple sound and produce a stable echo |
| Typical units | Micrometres or mils | Millimetres or inches; fine gauges may show smaller increments |
| Common applications | Dry film, powder coating, automotive paint, plating, protective coatings | Pipe, tank, plate, vessel, plastic, glass, erosion, and corrosion-related wall checks |
The units can overlap. An ultrasonic coating system may measure micrometres, and a heavy coating gauge may display millimetres. Units do not define the method; the sensor and physical boundaries do.
Substrate and Material Compatibility
A coating gauge needs a substrate that its sensing method recognizes. A normal ferrous probe does not become an aluminum probe. A dual Fe/NFe gauge may handle steel and aluminum, but conductive coatings, partially magnetic alloys, very thin substrates, tight curvature, or nonmetal panels can complicate the result.
An ultrasonic gauge needs a material that transmits a suitable sound pulse. Many metals, plastics, ceramics, and glasses can be measured with appropriate equipment, but highly attenuating, coarse-grained, layered, anisotropic, porous, or very thin materials can need a different transducer, frequency, mode, or reference. The back surface also must return an identifiable echo.
Compatibility should be demonstrated on representative samples. A product list that says “metal and plastic” is not a substitute for checking the specific alloy, polymer, temperature, geometry, surface, thickness range, and probe.
Access and Surface Preparation
Both methods often work from one side, but they need different surface conditions. A coating probe is placed flat against the coating. Dirt, overspray, loose material, sharp curvature, edges, and roughness can change the probe-to-substrate relationship.
An ultrasonic probe needs couplant and stable acoustic contact. Loose scale, heavy rust, roughness, curvature, or poor alignment can weaken or distort the echo. Surface preparation must follow the inspection procedure without removing the very layer or condition the project needs to evaluate.
A small or split probe may reach areas that an integral body cannot. A low-frequency ultrasonic transducer may penetrate an attenuating or coarse material better, while a higher-frequency probe may improve resolution on thin or small samples. Those choices belong to the probe/setup, not the word ultrasonic alone.
Calibration, Verification, and Adjustment Are Method-Specific
For coating gauges, a zero plate or uncoated substrate and known foils or standards can help verify performance and adjust for the application. The actual substrate may differ from a supplied smooth reference plate, so project procedures may require adjustment on a representative uncoated sample.
ASTM D7091 distinguishes calibration, verification, and adjustment for dry-film gauges and addresses magnetic and eddy-current measurement on defined substrate/coating combinations. It also recognizes that coating thickness varies, so one point may not represent the area.
For ultrasonic gauges, calibration establishes material sound velocity and compensates for probe, cable, couplant, and instrument timing as required by the mode. Known-thickness samples should match the material and bracket the range when the procedure calls for it. A stored steel velocity is not automatically suitable for aluminum, plastic, glass, or an unknown alloy.
Do Not Confuse Through-Coating With Coating Thickness
Paint or coating on a pipe can add delay to an ordinary ultrasonic wall measurement. Some ultrasonic instruments provide echo-to-echo or through-coating modes intended to reduce or exclude the coating contribution and report the substrate wall. That is useful when removing the coating is undesirable.
The mode does not necessarily report how thick the coating is. It may calculate time between two echoes in the substrate and omit the coating path. Verify the instrument, probe, minimum thickness, coating range, material, and procedure before treating the result as wall-only or coating-only.
The current Mcooh LS211 product record lists an E-E through-coating mode as a model-specific feature. The current manual and probe/setup must define when that mode applies.
Common Application Decisions
Paint on steel or aluminum panels
Use a compatible magnetic, eddy-current, or dual Fe/NFe coating gauge when the question is coating-stack thickness over metal. Use a different method for plastic or composite panels unless the instrument explicitly supports them.
Powder coating or protective dry film
Use a coating gauge that matches the substrate and the governing dry-film procedure. Define the sampling area, number of readings, reference checks, adjustment, and acceptance limits.
Remaining pipe or tank wall
Use an ultrasonic material-thickness system with a suitable transducer, couplant, material velocity, surface preparation, and corrosion-mapping plan. A coating gauge cannot report the steel wall beneath its substrate boundary.
Coated pipe wall without removing paint
Consider a documented ultrasonic through-coating mode for wall thickness. Use a coating gauge separately if dry-film thickness is also required. The two readings answer separate questions.
Plastic, glass, or ceramic part
Ultrasound may work when the material transmits a usable echo and the correct probe, frequency, velocity, and thickness range are available. A normal Fe/NFe coating gauge has no compatible metal substrate in this setup.
Choose the Method From the Sample and Decision
- Name the exact layer or wall between the two measurement boundaries.
- Identify coating, substrate, base material, geometry, surface, and temperature.
- Confirm which sides and reference areas are accessible.
- Select magnetic, eddy-current, ultrasonic, or another physical method.
- Check range, resolution, accuracy, probe, minimum area, curvature, edge distance, and environmental limits.
- Define calibration, verification, adjustment, known-thickness references, and repeat checks.
- Plan the sampling grid, units, acceptance criteria, and record fields before measuring.
Compare both product branches in the Mcooh thickness gauge collection. Use the collection to locate a candidate, then confirm the manual and procedure against the sample rather than choosing from a shared unit or maximum range.
Frequently Asked Questions
Can an ultrasonic gauge measure coating thickness?
Specialized ultrasonic coating systems can measure some coatings on some substrates. A normal ultrasonic wall-thickness gauge should not be assumed to report the coating layer. Verify the instrument, probe, mode, and material.
Can a coating gauge measure metal wall thickness?
No. A magnetic or eddy-current coating gauge measures the distance from probe to compatible metal substrate. It does not measure the substrate's total wall thickness.
Which method works on plastic?
Ultrasound may measure total plastic thickness with suitable sound transmission, probe, frequency, velocity, and geometry. A normal Fe/NFe paint gauge generally requires metal beneath the coating.
Do both methods need calibration?
Both need a controlled relationship to references, but the procedures differ. Coating gauges use substrate and thickness references; ultrasonic gauges use known thickness, sound velocity, zero, probe, and mode information.
Which gauge detects corrosion?
An ultrasonic gauge can support remaining-wall measurements used in corrosion programs. The reading alone does not characterize the full corrosion mechanism, flaw shape, or fitness for service. A coating gauge measures the protective film, not remaining wall.
Keep Coating and Wall Results Separate
Select the coating gauge when the result should describe a compatible surface film over metal. Select the ultrasonic gauge when the result should describe a supported material wall from sound travel time. If the asset needs both results, use two defined methods and keep their references and records separate. The Mcooh thickness gauge collection provides both branches for comparison.
