How to Use an Automotive Paint Thickness Gauge

Quick answer: To use an automotive paint thickness gauge, first confirm that the gauge supports the panel's metal substrate. Check it on suitable zero plates and thickness references, clean the test area, hold the probe flat, and take several controlled readings across every accessible metal panel. Record the results as a map and compare patterns within each panel and against neighboring panels. A reading pattern can flag an area for closer inspection, but it does not prove accident history, repainting, filler, or structural condition by itself.

A car paint meter is most useful when it turns scattered readings into a repeatable comparison. One number taken from one door has little context. A planned sequence across the hood, fenders, doors, roof, quarters, and trunk can reveal whether values are consistent, gradually changing, or localized. The workflow below keeps the instrument, surface, and interpretation under control.

Understand What an Automotive Paint Gauge Measures

A common automotive coating gauge measures the distance between its probe and a compatible metal substrate. On steel, a magnetic method is typically used for a nonmagnetic coating. On aluminum and other compatible nonferrous metals, an eddy-current method is typically used for a nonconductive coating. The DeFelsko coating-measurement overview explains these two method families and the factors that can influence their readings.

The displayed result normally represents the measurable coating stack above the metal. It does not automatically separate primer, color coat, clear coat, or other layers. If body filler or another material lies between the coating and metal, the response depends on the gauge, total distance, and measurement conditions. Treat the number as an instrument result, not as a complete description of the panel construction.

Choose a Gauge for the Vehicle Materials

Begin by identifying which body materials may be present. Many vehicles combine steel and aluminum, while bumpers, trim, spoilers, roofs, or specialty panels may use plastic, composite, glass, or carbon-fiber structures. A conventional Fe/NFe automotive paint gauge is designed around compatible metal substrates. It normally cannot measure paint thickness on a nonmetal body panel using the same magnetic or eddy-current method.

• Ferrous, or Fe, mode: intended for compatible steel or iron substrates with a nonmagnetic coating.
• Nonferrous, or NFe, mode: intended for compatible conductive nonferrous metal, such as aluminum, with a nonconductive coating.
• Automatic substrate recognition: can simplify mixed-metal work, but should still be checked against known references and the model instructions.
• Nonmetal panels: require a different measurement method or should be recorded as not measurable with the selected gauge.

Before buying, confirm the substrate modes, measurement range, probe geometry, reference accessories, and verification steps for the exact model. The Mcooh thickness gauge collection includes automotive coating options for comparing those capabilities.

Prepare the Vehicle and Inspection Plan

Inspect in a dry, well-lit area where the vehicle surface and gauge can reach a reasonably stable temperature. Dirt, grit, water, wax buildup, or loose contamination can lift the probe or make placement inconsistent. Clean each test spot using a method that will not damage the finish. Do not drag the probe across the paint.

Create a simple panel map before starting. List each accessible metal panel and divide large panels into consistent zones. For example, map the hood at left, center, and right positions near the front, middle, and rear. Use the same general pattern on both sides of the vehicle so left-to-right comparison remains meaningful.

Note conditions that can complicate interpretation: tight edges, seams, sharp curves, styling creases, badges, stone chips, rust, visible refinishing, wraps, protective film, and panels that the gauge identifies as unsupported. Avoid forcing a measurement where the probe cannot sit flat.

Verify the Gauge Before Mapping the Car

Follow the instrument manual for startup, zeroing, verification, and any permitted adjustment. These terms are not interchangeable. ASTM D7091 distinguishes calibration, verification, and adjustment for magnetic and eddy-current dry-film gauges. In everyday vehicle work, the operator will often verify performance and, where the model allows, adjust it using appropriate references rather than perform a laboratory calibration.

1. Inspect the probe and references. The probe face, zero plates, and foils should be clean and undamaged.
2. Select representative substrates. Use smooth steel and aluminum references as applicable. A supplied plate may not reproduce every vehicle panel, but it confirms basic operation.
3. Check zero according to the manual. Keep the probe flat and away from edges.
4. Verify with one or more thickness references. Choose values that bracket or approach the expected working range when the procedure supports it.
5. Repeat the check. Stable, repeatable results are more useful than a single reading that happens to match.
6. Record the check. Note the gauge, probe, references, units, date, and any adjustment.

Recheck if the instrument is dropped, the temperature changes substantially, the probe behaves inconsistently, or the work shifts between substrate types. Use the manufacturer's limits for acceptance rather than inventing a tolerance.

Map the Vehicle Panel by Panel

Use a consistent sequence so no panel is skipped. A practical route is hood, front fenders, front doors, rear doors, roof, quarter panels, trunk or tailgate, then accessible pillars and jamb areas if appropriate. The exact route matters less than using the same one for every vehicle.

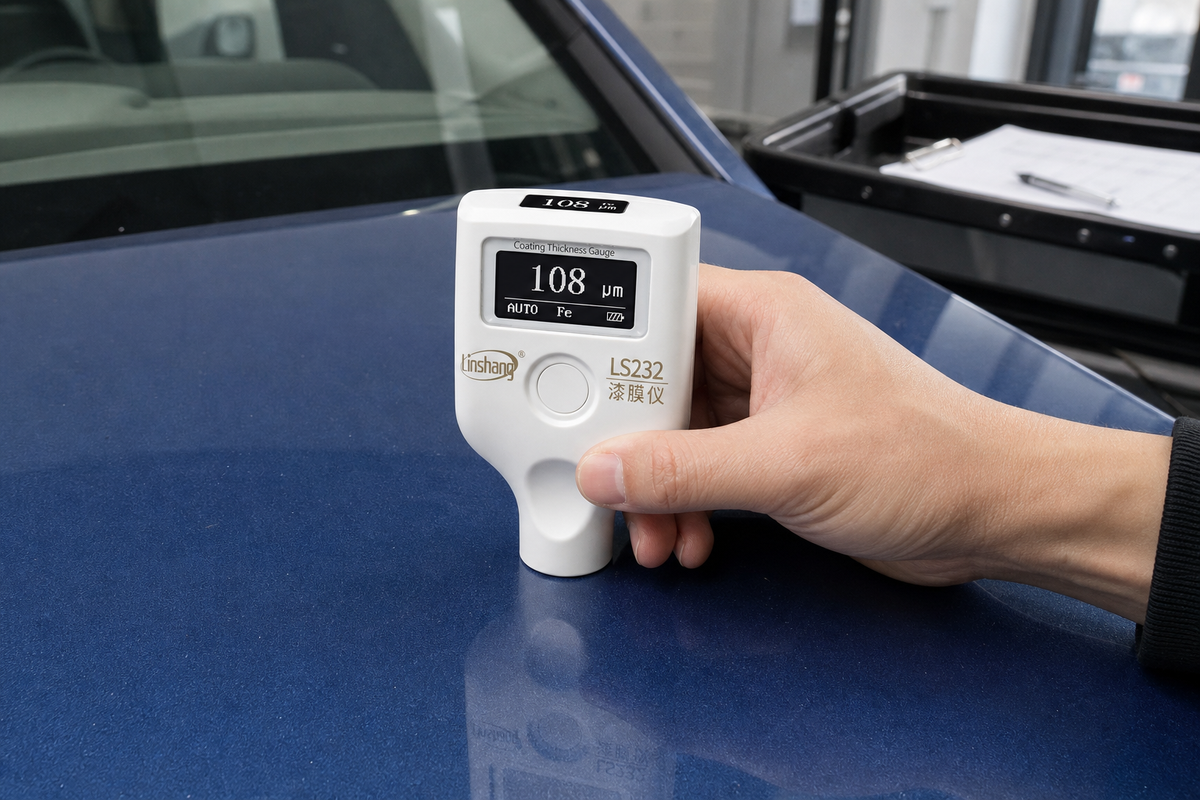

1. Place the probe perpendicular to the surface. Let it contact the paint gently and completely.
2. Wait for a valid result. Do not move the probe while the gauge is taking the reading.
3. Lift between readings. Reposition rather than sliding it.
4. Take several readings per zone. Repeated values show local spread and help expose a placement error.
5. Move across the panel. Include central areas and controlled positions toward the perimeter, while staying far enough from edges and tight curves for reliable contact.
6. Record every value or a defined summary. If using averages, retain unusually high, low, or unstable observations rather than hiding them.

The DeFelsko automotive inspection guide illustrates why a series of measurements across a vehicle provides more context than one isolated number. The goal is a pattern with traceable locations.

Compare Patterns, Not a Universal Threshold

There is no single thickness value that proves a panel is original or repaired across every vehicle, factory, model year, color system, panel material, and measurement location. Manufacturing variation, panel orientation, refinishing materials, and gauge response all matter. A color-coded alarm built into a particular meter is a convenience setting, not a universal verdict.

Instead, evaluate three kinds of comparison:

• Within-panel consistency: Do readings across the same panel cluster reasonably, or is there a localized step change?
• Adjacent-panel comparison: Does one door differ materially from its neighboring fender and rear door under comparable measurement conditions?
• Left-right symmetry: Do corresponding panels on each side show similar patterns, while allowing for legitimate production or repair differences?

A higher, lower, or more variable area is a reason to inspect further. Look for texture changes, masking lines, overspray, fastener disturbance, seam-sealer differences, color mismatch, or documentation. A qualified vehicle inspection may also consider alignment, structure, diagnostics, and repair quality. The coating gauge contributes evidence; it does not replace that broader assessment.

Control the Main Sources of Reading Error

Probe position is only one influence. Curvature can prevent full seating. Edge proximity can change the sensor field. Thin substrates, rough surfaces, different metal composition, and surface films may affect response. Repeat suspicious measurements slightly away from the original point while keeping the inspection zone traceable.

Do not compare unsupported values as if they were equivalent. A steel-door reading and an aluminum-hood reading may come from different sensing modes. A bumper that returns no reading is not necessarily unpainted; it may simply be nonmetal. A clear protective film can add to the total distance measured over compatible metal. Record these conditions instead of forcing them into a single interpretation.

Use Paint Readings Before Detailing

For detailers, a panel map can support a more cautious polishing plan by identifying areas that differ from the rest of the vehicle. The DeFelsko detailing guide emphasizes multiple measurements and panel patterns. However, a total coating reading is not the same as remaining clear-coat thickness. Without layer-specific evidence, do not calculate an aggressive removal allowance from the total number alone.

Combine gauge data with paint condition, defects, prior work, pad and compound choice, test spots, lighting, and the detailing process. If the map is irregular or unexpectedly low, choose a conservative method or seek additional assessment.

Keep a Reusable Inspection Record

A useful record identifies the vehicle, date, operator, gauge model, probe or mode, units, references used, verification result, surface condition, and measurement map. Mark panels that were inaccessible or unsupported. If a value triggers closer inspection, record its exact location and the follow-up observation.

Consistent records make different vehicles and repeat inspections easier to compare. They also separate measured facts from interpretation. Write “right front door, upper rear zone: repeated values above adjacent zones” rather than “door definitely replaced.”

Automotive Paint Gauge FAQ

What is a good paint thickness reading for a car?

No universal value applies to every vehicle. Use the vehicle-wide pattern, panel materials, known references, and instrument instructions. Investigate meaningful differences instead of treating one generic range as a pass or fail rule.

How many readings should I take per panel?

Take enough controlled readings to represent the panel's size and shape, including more than one point in each defined zone. Large or suspicious panels need a denser map. Document the pattern so the result can be repeated.

Can a paint thickness gauge detect body filler?

An unusual thickness pattern over compatible metal may prompt closer inspection for refinishing or filler, but the gauge alone does not identify the material or prove a repair. Confirm with visual evidence, records, and other appropriate inspection methods.

Can I measure a plastic bumper?

Not with a normal magnetic or eddy-current automotive gauge, because those methods require compatible metal beneath the coating. Record the bumper as unsupported unless you have a method specifically designed for that construction.

Does the reading show clear-coat thickness?

Usually not. A conventional automotive coating gauge normally reports the total measurable stack above the metal substrate. It does not automatically isolate the clear coat from primer, color, or other layers.

Build the Workflow Around Repeatability

A useful automotive paint inspection begins with material compatibility and a verified instrument, then follows a consistent panel map with clean, flat probe placement. The value comes from repeatable patterns and careful records, not from a universal alarm threshold. Compare current options such as the LS232 digital car paint thickness gauge and the LS238 split-probe car paint thickness gauge, then confirm the exact model's substrate modes, reference procedure, and working limits before use.
